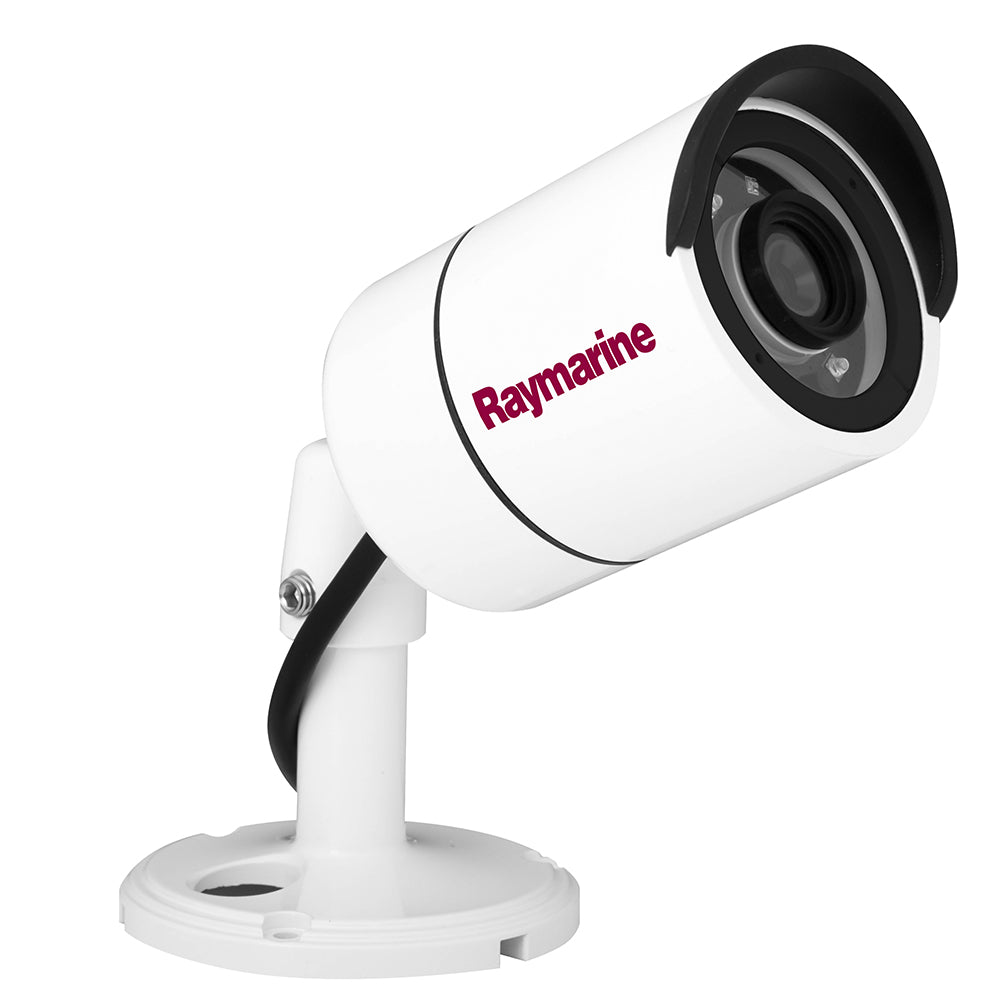

Raymarine CAM210 Day & Night IP Marine Bullet Camera

The CAM210 Day & Night IP Marine Bullet Camera is a robust, high-definition surveillance solution designed specifically for marine and boating applications. Its rugged construction and compact frame make it ideal for installation anywhere on your vessel, ensuring clear and reliable monitoring both day and night.

Key Features

• Seamless Integration: Plug and play compatibility with Raymarine MFDs running Lighthouse II.
• Flexible Power Options: Power over Ethernet (PoE) or direct 12V DC power supply for versatile installation.
• Enhanced Night Vision: High bright IR LEDs provide clear images in total darkness.
• Superior Image Quality: Digital Defog processing enhances visibility in adverse weather conditions like smog, fog, or smoke.
• Intelligent IR Technology: Delivers clear video images at night under all conditions.

Technical Specifications

Component	Details
CPU	32-bit ARM9 RISC CPU up to 432MHz
Memory	128MB Flash / 128MB SDRAM
Image Sensor	2.0 Megapixel 1/2.8" SONY Progressive Scan CMOS (Exmor)
Resolution	Up to 1920 x 1080 (Full HD)
Total Pixels	1952(H) x 1116(V) = 2.18 Megapixels
Effective Pixels	1944(H) x 1104(V) = 2.15 Megapixels
S/N Ratio	More than 50dB
Minimum Illumination	0 Lux (IR On)
IR Distance	20 meters
Lens	6.0mm Megapixel Board Lens
Field of View	Diagonal: 63.6° ± 3° Horizontal: 53.3° ± 3° Vertical: 33.1° ± 3°
Video Compression	H.264 High Profile @4.0, MJPEG Image Quality: 3 Steps
Frame Rate	H.264: Up to 30fps at 1920x1080 MJPEG: Up to 30fps at VGA resolution
Video Streaming	Supports multi-stream with H.264, MJPEG Adjustable frame rate CVBR/CBR in H.264
Pan / Tilt / Zoom	Digital Pan, Tilt, and Zoom
Image Settings	Day & Night Auto White Balance Auto Exposure Privacy Mask Effects: Color, Sharpness, Mirror / V-Flip
Security	Password protection, User access log, HTTPS encryption
Supported Protocols	HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelligent Video	Motion detection up to 1920x1080 with 4x3 blocks
Power Source	DC12V/1.5A, PoE (Power over Ethernet): 802.3af
Power Consumption	Max. 3.3W, Max. 5.3W with IR
Dimensions	83.8mm (W) x 155mm (H) x 178.1mm (D) including bracket
Weight	900g
LED Indicators	Power, Network Connection
Operating Temperature	0° to 40° Celsius (32°F to 104°F)
Storage Temperature	-10° to 50° Celsius (14°F to 122°F)

Why Choose the CAM210 for Your Marine Needs?

The CAM210 is engineered to withstand the harsh marine environment, offering reliable performance whether you're navigating calm waters or braving rough seas. Its compact design ensures it doesn't take up unnecessary space, while the advanced imaging technologies provide crystal-clear footage, enhancing security and situational awareness on your vessel.

Easy Installation and Integration

Installing the CAM210 is straightforward, thanks to its small form factor and versatile power options. Whether you prefer using PoE for streamlined connectivity or a direct 12V DC power supply, the CAM210 adapts to your setup effortlessly. Its compatibility with Raymarine MFDs running Lighthouse II ensures seamless integration with your existing marine electronics.

Advanced Imaging and Security Features

With features like Digital Defog processing and Intelligent IR technology, the CAM210 delivers exceptional image quality even in challenging conditions. The camera's security features, including password protection, user access logs, and HTTPS encryption, safeguard your footage and ensure that only authorized personnel can access the system.

Comprehensive Monitoring and Control

The CAM210 supports multi-stream video with adjustable frame rates, allowing you to customize the surveillance according to your needs. Its digital pan, tilt, and zoom capabilities provide comprehensive coverage of your vessel, while intelligent video features like motion detection enhance your monitoring capabilities.

Reliable Performance

Designed for continuous operation, the CAM210 maintains low power consumption, even with IR enabled. Its durable construction and wide operating temperature range make it a dependable choice for any marine application, ensuring you have reliable surveillance at all times.
