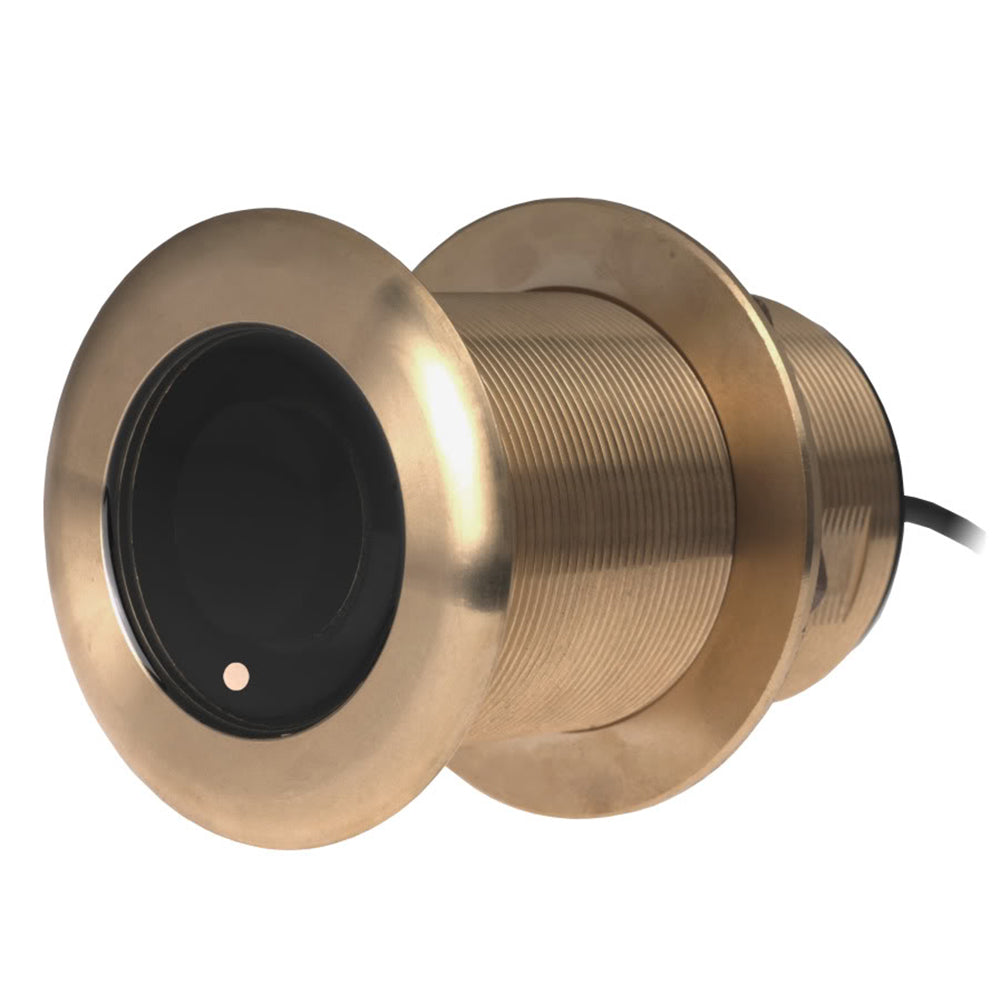

Raymarine B75M 600W Medium Frequency CHIRP Transducer 20 Tilt Single Operation Cable f/1 Transducer Install

Enhance your boating experience with the B75M 600W Medium Frequency CHIRP Transducer. Designed specifically for small to medium-sized trailerable boats, this transducer delivers high-resolution sonar performance at an affordable price. Its 20° tilt and single operation cable make installation straightforward, while the wide beam angles ensure comprehensive coverage beneath your vessel.

Outstanding Features

• Advanced CHIRP Technology: Utilizes continuous waveform technology to provide superior target separation and detailed underwater images, ideal for both fishing and navigation.
• Wide Beam Angle: Offers beam widths ranging from 24° to 16°, delivering extensive coverage and minimizing blind spots below your boat.
• Durable Construction: Made from high-quality bronze, the B75M is built to withstand harsh marine environments, ensuring long-lasting performance.
• High Depth Capability: Capable of operating at depths up to 900 feet, making it suitable for a variety of marine activities.
• Thru-Hull Mounting: Easy to install with a thru-hull design, compatible with most boat types and sizes.
• Comprehensive Sonar Features: Equipped with depth and temperature sensors for a complete marine monitoring solution.

Technical Specifications

Specification	Details
Beam Angle	24° to 16° Medium-Frequency
Deadrise Angle	16° to 24°
Frequency	80-130 kHz Medium Frequency CHIRP
Material	Bronze
Maximum Depth	900 feet
Sonar Features	CHIRP Sonar, Depth, Temperature
Mounting Style	Thru-Hull
Imaging	Standard
CHIRP	Medium
Temperature Sensor	Yes
Speed Sensor Included	No
Box Dimensions	5" H x 8" W x 12" L
Weight	6.6 lbs
UPC	723193706190

Why Choose the B75M Transducer?

The B75M is an excellent choice for boaters seeking reliable and high-performance sonar capabilities without the premium price tag. Its medium-frequency CHIRP technology provides clear and detailed underwater images, making it easier to locate fish and navigate safely. The durable bronze construction ensures longevity, while the versatile mounting options accommodate a wide range of boat types. Whether you're a recreational angler or a serious mariner, the B75M transducer delivers the performance and reliability you need on the water.
