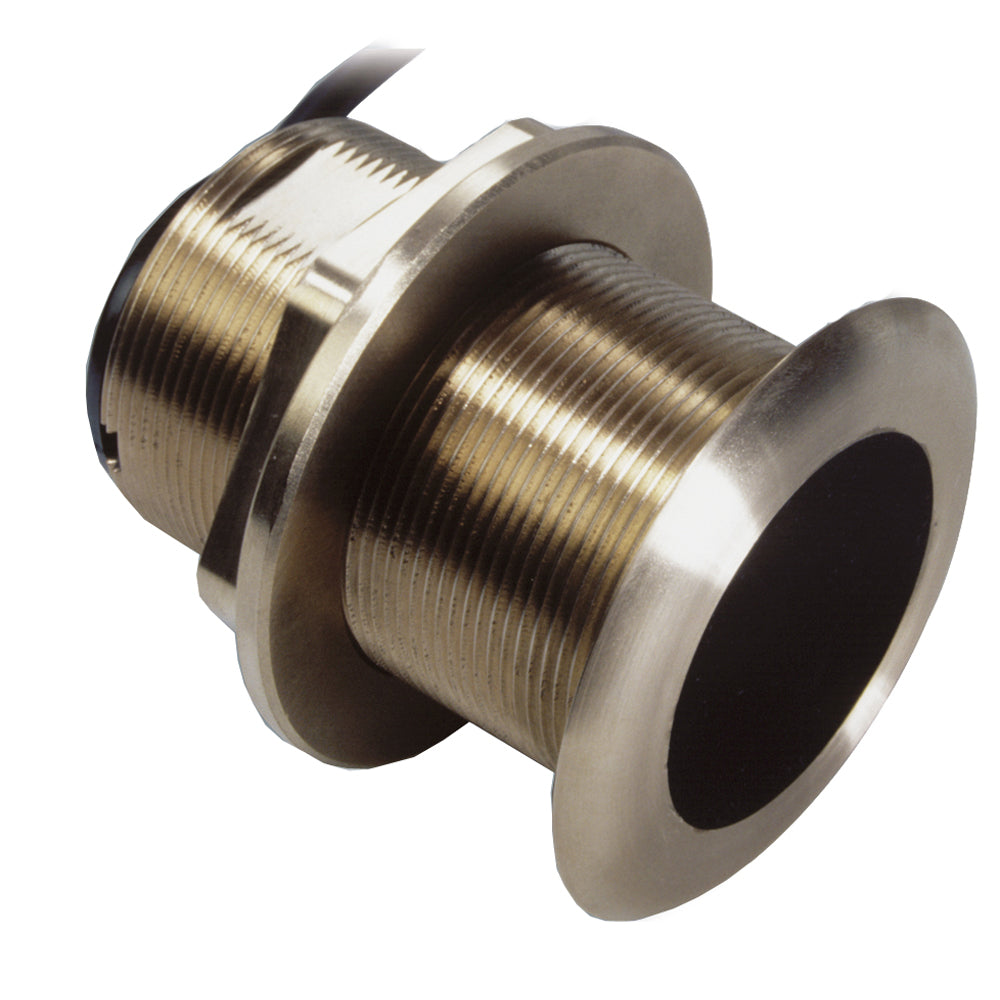

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30

The B60 Tilted Element™ 20° is engineered to deliver superior performance for boats with 16° to 24° deadrise angles. Specifically designed for compatibility with Raymarine DSM250, DSM300, DSM300G, DSM30, and CP300 systems, this tilted transducer enhances your sonar experience by providing more accurate depth readings with minimal hull interference.

Key Features

• Deadrise Compensation: The ceramic element is internally tilted to compensate for built-in deadrise, ensuring accurate depth measurements.
• Vertical Beam: Offers excellent echo returns, enhancing the precision of depth readings.
• Low Drag Design: The nearly flush housing extends only 5 mm (3/16") outside the hull, minimizing drag and improving overall performance.
• Durable Construction: Made with bronze for long-lasting resistance against harsh marine environments.
• Compatibility: Seamlessly integrates with multiple Raymarine sonar systems for versatile use.

Technical Specifications

Specification	Details
Degree of Tilt	20°
Deadrise Angle Range	16° - 24°
Frequency Range	50/200 kHz
Power Handling	600W RMS
Performance Level	Mid-performance
Material	Bronze
Chirp Capability	No
Cable Length	33 feet
Temperature Sensor	Yes
Speed Sensor Included	No
Mounting Style	Thru-Hull
Imaging Type	Standard
Box Dimensions	4"H x 8"W x 10"L
Weight	4.9 lbs
UPC	723193660850

Additional Resources

Owner's Manual (PDF)
Brochure (PDF)
