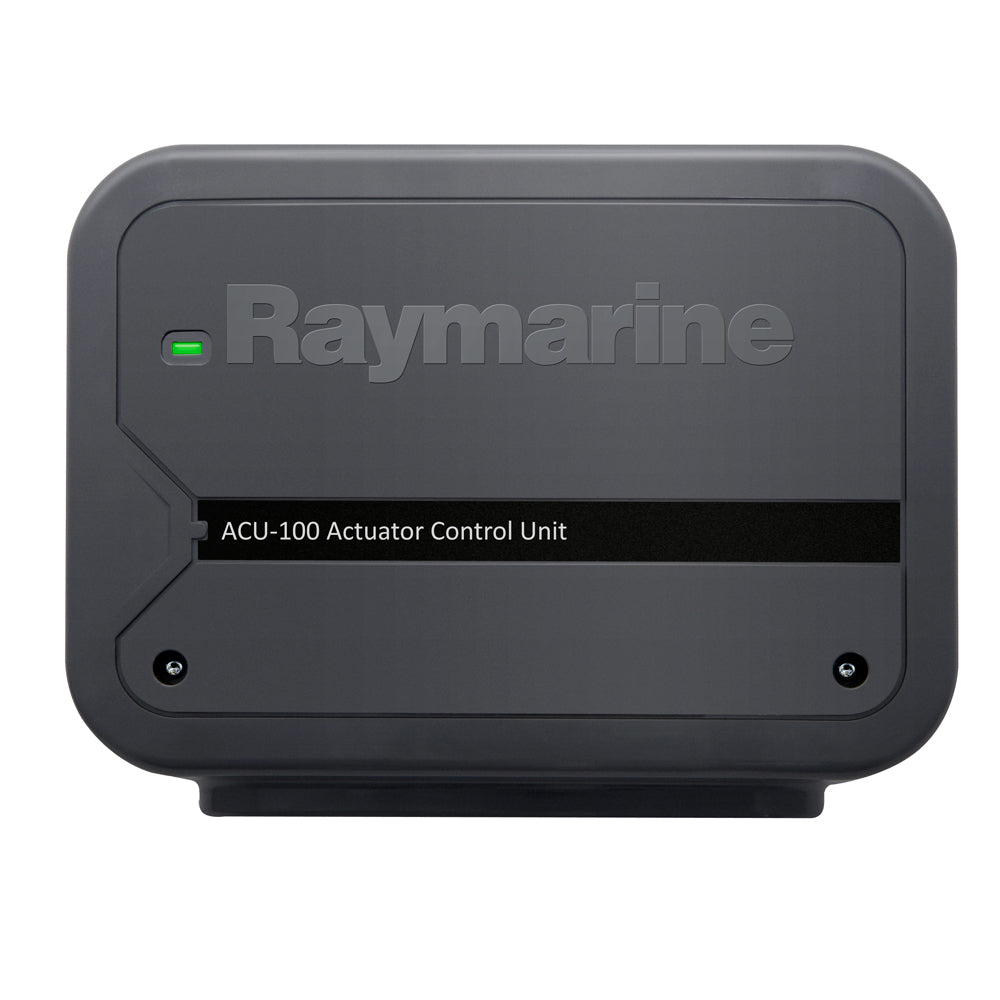

Raymarine ACU-100 Actuator Control Unit
Raymarine ACU-100 Actuator Control Unit is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Autopilot Control Unit (ACU) is a robust and reliable component essential for marine steering systems. It ensures consistent autopilot drive power and seamlessly integrates with the SeaTalkng bus, enhancing your boat's navigational capabilities.
Key Features
- Reliable Drive Power: Delivers a maximum continuous current of 7 Amps at the supply voltage, ensuring smooth and responsive autopilot control.
- Seamless Integration: Provides power to the SeaTalkng bus, enabling efficient communication within your marine electronics network.
- Comprehensive Connections: Equipped with multiple connection points including rudder reference sensor, power, drive motor, and ground for versatile installation.
- Durable Construction: Designed to withstand harsh marine environments with high waterproof ratings for both the connector panel and drive electronics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Supply Voltage | 12 V |
| Operating Voltage Range | 10.8V to 15.6V DC |
| Power Consumption (Standby) - Main Power Supply | 300 mA (12V) |
| Power Consumption (Standby) - SeaTalkng Power Supply | No power supply to SeaTalkng |
| SeaTalkng LEN (Load Equivalency Number) | 1 |
| SeaTalkng Power Out | No power supply to SeaTalkng |
| Data Connections | SeaTalkng |
Connections
- Rudder Reference Sensor
- Power
- Drive Motor
- Ground
Installation Environment
- Operating Temperature: -20°C to +55°C (-4°F to +131°F)
- Storage Temperature: -30°C to +70°C (-22°F to +158°F)
- Relative Humidity: Up to 93%
Waterproof Rating
- Connector Panel: IPX2
- Drive Electronics: IPX6
Physical Specifications
- Dimensions (W x H x D): 180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)
- Weight: 0.6 kg (1.32 lbs)
Compliance and Certifications
- Europe: Compliant with 2004/108/EC
- Australia and New Zealand: C-Tick, Compliance Level 2
Additional Specifications
- Type: Parts
- Box Dimensions: 4"H x 8"W x 12"L
- Weight: 2 lbs
- UPC: 723193768907
