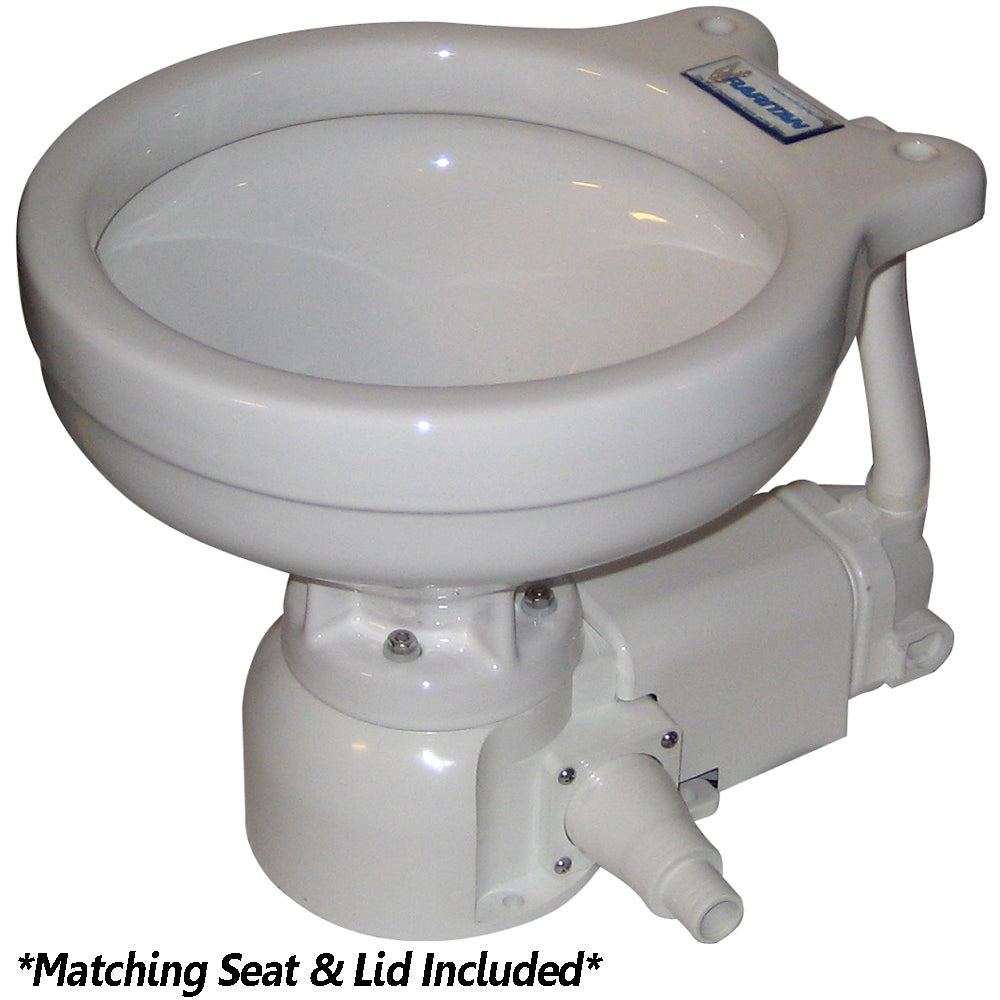

Raritan Sea Era Electric Toilet - Marine Size - Integral Pump - Straight 90 Discharge - 12v

The SeaEra marine toilet is expertly engineered to optimize space and functionality on boats of all sizes. With its innovative rotating base and reliable integral pump, the SeaEra ensures efficient waste management even in the most confined marine environments.

Product Overview

The SeaEra is designed specifically for marine applications, allowing seamless installation in limited spaces. Its base can rotate in 90-degree increments, making it adaptable to uniquely shaped boat layouts or retrofits where space is at a premium. The original SeaEra model features an integral intake pump, consolidating all connections directly at the toilet for a streamlined setup.

Innovative Design Features

The SeaEra distinguishes itself from competitors through its unique design elements:

• Separate Intake and Discharge Water Paths: The intake water is completely separated from the discharge water by the full length of the motor, eliminating any risk of cross-contamination. Unlike other models that rely on seals, which can fail and allow wastewater back into the bowl, the SeaEra ensures a hygienic and reliable operation.
• Full-Size Joker Valve: Enhances performance and significantly reduces the likelihood of clogs, ensuring smooth and efficient waste disposal.
• Flexible Discharge Fitting: A newly engineered discharge fitting accommodates both 1-1/2" (38mm) and 1" (25mm) discharge lines without the need for additional adapters.

Key Features

• Integral pump for streamlined connections
• Straight and 90º discharge options for versatile installation
• Marine-style bowl designed for durability and ease of use
• Inlet pump capable of lifting water from up to four feet (1.22m) below
• Run-dry capability without pump damage
• Interchangeable 3/4" (19mm) hose barb fittings included for flexible water routing
• Remote intake pump or pressurized fresh water solenoid options available in SeaEra QC model

Benefits for Mariners

• Uncompromising Quality: Built to meet the highest standards for demanding boaters.
• Economical Operation: An affordable electric macerating marine toilet without sacrificing performance.
• Flexible Installation: Can be mounted above or below the waterline, and its rotatable bowl adapts to confined or retrofit spaces.
• Included Heavy-Duty Switch: Comes with a marine push-button switch for all models.
• Versatile Discharge Options: Fits both 1-1/2" (38mm) and 1" (25mm) discharge lines without the need for adapters.
• Easy Maintenance: Designed for simple cleaning and upkeep.
• Energy Efficient: Low power consumption and quieter operation, especially in pressurized freshwater models.
• Compatibility: Works seamlessly with on-board treatment systems like Lectra/San® and holding tanks.
• Reliable Support: Each unit is hand-assembled, individually tested, and backed by Raritan's one-year Limited Warranty and dedicated technical support team.

Technical Specifications

Specification	Details
Color	White
Gallons Per Minute	3 GPM
Operation Method	Electric
Rinse Water	RAW
Suction Lift	4' (1.22m)
Volts	12V
Type	Toilet
Size	Compact
Box Dimensions	17"H x 23"W x 24"L
Weight	35 lbs
UPC	085462014123

Additional Resources

For more detailed information, you can access the following resources:

• Quick Guide (PDF)
• Brochure (PDF)

Product Video

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
