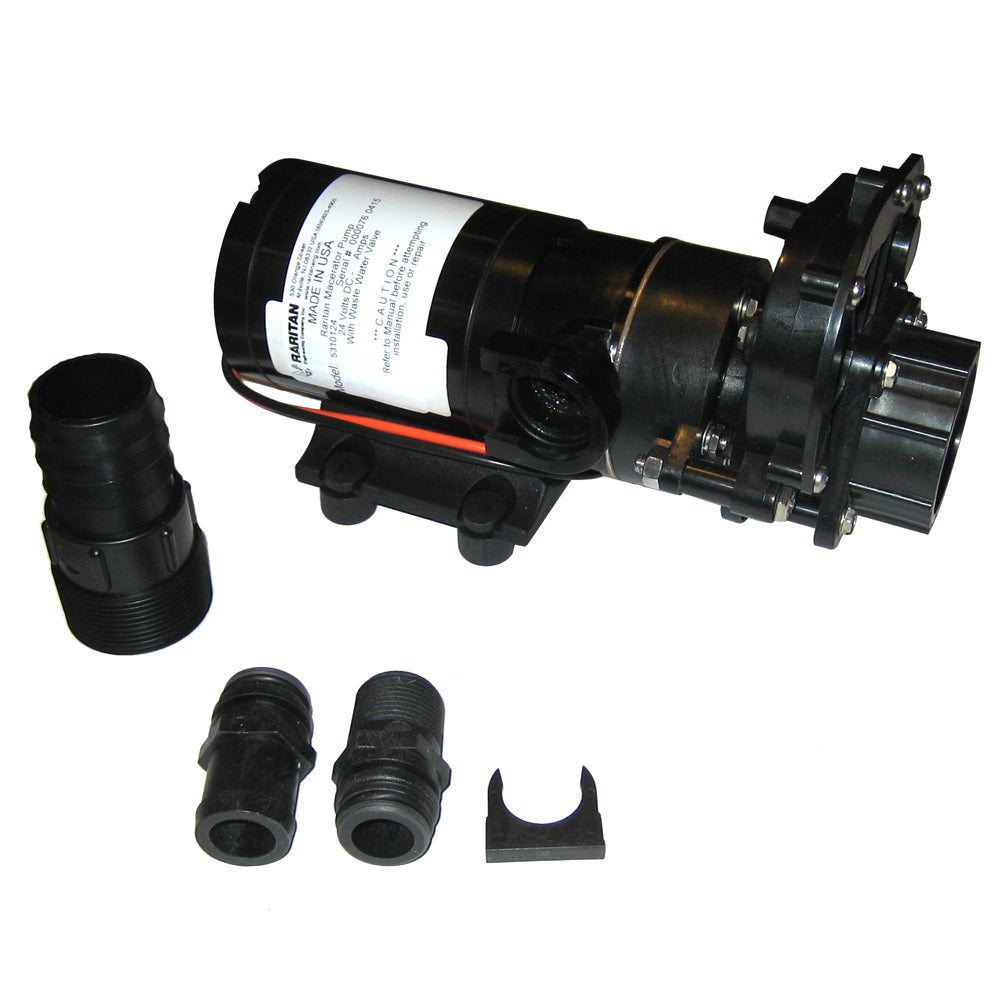

Raritan Macerator Pump - 24v w/Waste Valve

The Raritan 24V Macerator Pump with Waste Valve is an indispensable solution for efficient waste management on your boat. Designed specifically for marine environments, this pump ensures reliable and swift emptying of holding tanks and fish boxes, enhancing the overall boating experience.

Key Features

• All stainless steel bolts to prevent corrosion, ensuring longevity in harsh marine conditions
• Spring-loaded Viton shaft seal to avert premature leaks and maintain pump integrity
• Proprietary rubber impeller compound for extended dry running time, minimizing pump wear
• Smart Macerator Control that automatically shuts off the pump when dry, protecting against damage
• Weekly impeller jog feature to maintain optimal pump performance during extended periods of inactivity

Technical Specifications

Component	Details
Volts	24V
Type	Waste Pump
Pump	Self-priming with flexible rubber impeller and stainless steel wearplate
Impeller	Raritan Proprietary Nitrile Compound
Blade	Stainless Steel Double Cut
Seal	Viton Lip with 316 SS Spring and Case
Motor	Permanent Magnet Type, Fully Enclosed, Stainless Steel Shaft, Thermal Protection for Overload, Powder-Coated Housing with Sealed Ball Bearing
Inlet Ports	1-1/2" Hose Barb & 1-1/2" NPT Male
Outlet Port	3/4" MNPT
Lead Wires	14 GA, Red and Black
Weight	5 lbs.
Box Dimensions	7"H x 7"W x 11"L
Type	Waste Pumps
UPC	085462035753
Approvals	Ignition Protected, ISO 8846

Safety Warning

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
