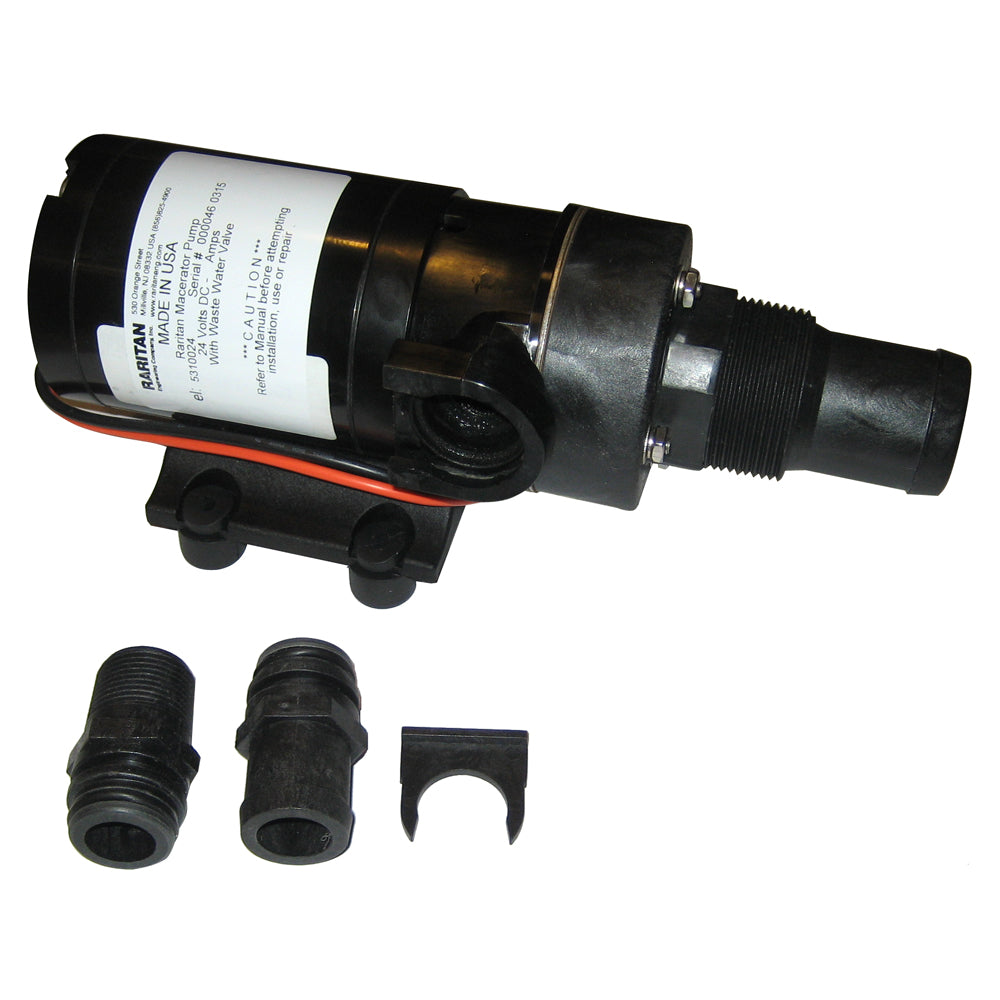

Raritan Macerator Pump - 24v w/Barb Adapter

The Macerator Pump - 24v with Barb Adapter is an essential component for any marine vessel, ensuring efficient and reliable management of waste and other liquid tasks. Designed specifically for the demands of boating, this pump excels in both performance and durability, making it a top choice for boat owners looking to maintain their vessel with ease.

Overview

Macerator pumps play a crucial role in various boat maintenance tasks, primarily used to empty holding tanks and fish boxes. The Raritan Macerator Pump stands out in the market by addressing common issues such as dry running and pump burnout. Its innovative design ensures that the pump operates smoothly when needed, preventing damage and extending its lifespan.

Advanced Design for Enhanced Performance

Raritan focused on two main objectives when designing this macerator pump:

1. Extended Run Dry Time: Forgetting to turn off the pump can lead to dry running, which is detrimental to most pumps. Raritan's proprietary plastic housing and impeller combination significantly resist burnout, ensuring longer operational life even if the pump runs dry occasionally.
2. Smart Macerator Control: This intelligent feature automatically shuts off the pump when it detects dry running conditions, safeguarding the pump from potential damage. Additionally, the Smart Macerator Control includes a weekly "jog" function that keeps the impeller in shape, ensuring reliable tank emptying when needed.

Key Features

• Corrosion-Resistant Construction: All stainless steel bolts prevent corrosion, ensuring longevity in harsh marine environments.
• Leak Prevention: A spring-loaded Viton shaft seal effectively prevents premature leaks, maintaining the pump’s integrity.
• Durable Impeller: The proprietary rubber impeller compound allows for extended dry running time, enhancing the pump’s resilience.

Specifications

Component	Description
Pump	Self-priming flexible rubber impeller with stainless steel wearplate
Impeller	Raritan proprietary nitrile compound
Blade	Stainless steel double cut
Seal	Viton lip with 316 SS spring and case
Motor	Permanent magnet type, fully enclosed, stainless steel shaft, thermal protection for overload, powder-coated housing with sealed ball bearing
Inlet Ports	1-1/2" hose barb & 1-1/2" NPT Male
Outlet Port	3/4" MNPT
Lead Wires	14 GA, red and black
Weight	5 lbs.
Approvals	Ignition protected, ISO 8846
Volts	24v
Type	Waste Pumps
Box Dimensions	4"H x 7"W x 11"L
Weight	4.9 lbs
UPC	085462035739

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit P65Warnings.ca.gov.

Additional Documentation

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
