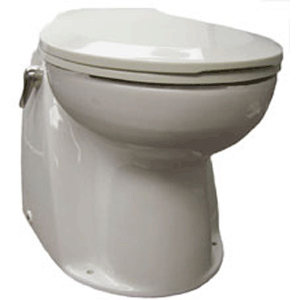

Raritan Atlantes Freedom w/Vortex-Vac - Household Style - White - Remote Intake Pump - Smart Toilet Control - 12v

The Atlantes Freedom™ is a revolutionary marine toilet designed to enhance your boating experience with its innovative Vortex-Vac technology and user-friendly features. Engineered for both aesthetics and functionality, the Atlantes Freedom™ ensures a clean, efficient, and hassle-free restroom solution for your vessel.

Innovative Design and Functionality

Built upon the legacy of the original Atlantes, the Atlantes Freedom™ integrates all components within the bowl, minimizing space and maximizing performance. The inclusion of a sturdy metal handle on the side of the bowl provides an intuitive flushing mechanism, making it easier for users unfamiliar with marine toilets to operate seamlessly. This design not only simplifies flushing but also enhances the overall appearance, offering a sleek and clean look that appeals to both men and women on board.

Advanced Vortex-Vac Technology

The heart of the Atlantes Freedom™ lies in its Vortex-Vac technology, which efficiently moves waste using a vacuum action created by an integrated pump. Unlike traditional vacuum toilets that rely on remote vacuum generators, the Vortex-Vac system ensures reliable performance without the need for extended pump operation. This results in optimal waste removal with minimal water usage, providing both environmental benefits and cost savings.

Standard Features

• One-piece china bowl for easy cleaning and durability
• Anti-clog "power shred" discharge system to prevent blockages
• Household-style design that blends seamlessly with any marine bathroom
• Stainless steel handle equipped with smart toilet control for enhanced user experience
• Remote intake pump for efficient waste management
• Powerful bronze cutting blades designed to shred most waste materials effectively

Key Benefits

• Vortex-Vac Technology: Ensures efficient waste removal with minimal water usage.
• Flexible Installation: Simple installation options above or below the waterline on any vessel.
• Low Power Consumption: Energy-efficient operation reduces overall power usage.
• Multiple Operation Modes: Choose between Fill, Dry Flush, or Fill and Flush for customized performance.
• Clog-Free Performance: Advanced discharge system prevents clogs, maintaining reliability even in commercial applications.
• Easy Maintenance: Smooth, minimal lines make cleaning quick and straightforward.
• Durable Components: Diaphragm intake pump can operate dry, and the microprocessor control with solid-state circuit breaker ensures longevity.
• Safety and Reliability: No fuses or relays inside the unit for enhanced safety.

Raritan Programmable Smart Toilet Control

The Raritan Smart Toilet Control adds a layer of convenience and customization to your marine toilet experience. This fully programmable flush control system allows users to select from various flushing modes without the need to adjust any physical components.

• Normal Flush: Initiates a timed flush sequence that maximizes bowl rinse and refills, ensuring thorough cleanliness.
• Water Saver: Utilizes half the water of a normal flush while still maintaining effective waste removal.
• Water Only: Adds water to the bowl without discharging contents, ideal for pre-use bowl wetting or controlled water levels.
• Empty Only: Evacuates the bowl contents without using water, activated by pressing the flush button.

Specifications

Feature	Specification
Color	White
Gallons Per Minute	3 GPM
Inlet Size	3/4"
Operation Method	Electric
Outlet Size	1-1/2"
Rinse Water	RAW
Suction Lift	4' ft.
Volts	12V
Type	Toilet
Size	Household Size
Box Dimensions	19"H x 19"W x 26"L
Weight	60 lbs
UPC	085462029226

Compliance and Safety

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Resource Links

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
