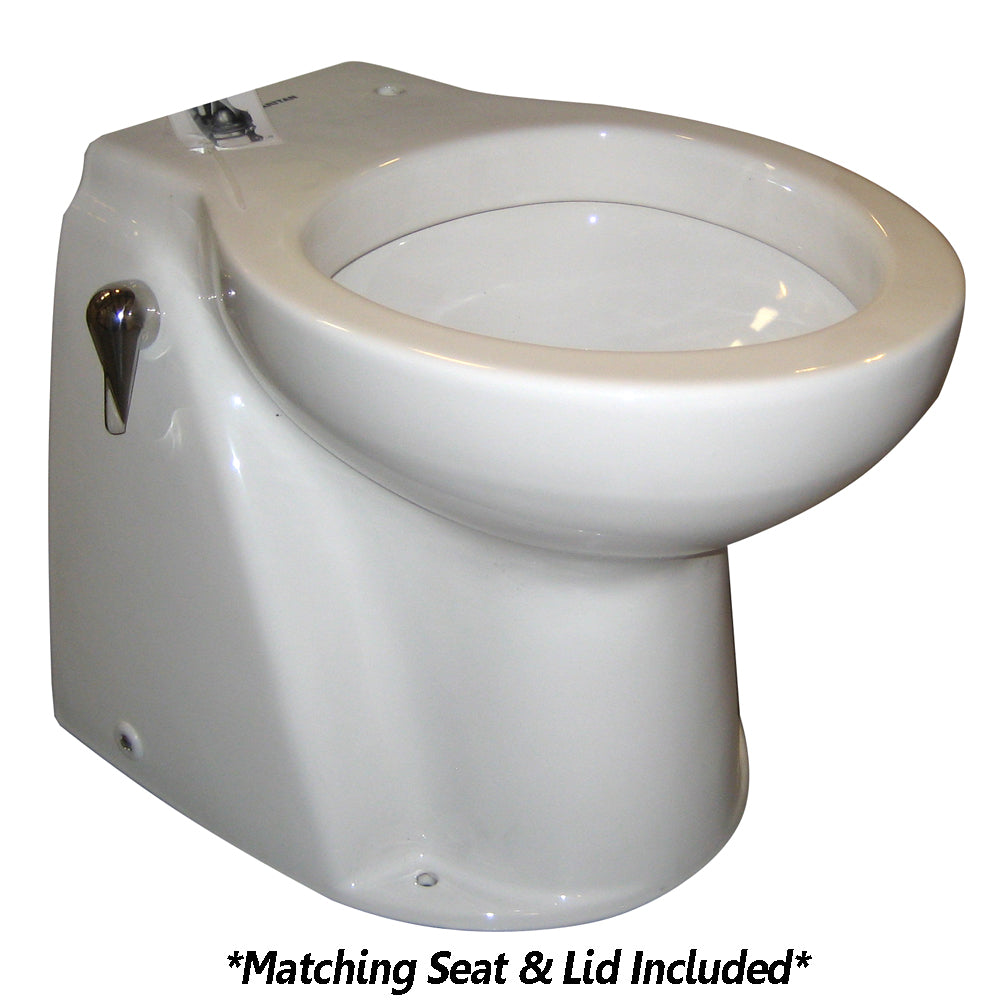

Raritan Atlantes Freedom w/Vortex-Vac - Household Style - White - Freshwater Solenoid - Smart Toilet Control - 12v

Introducing the Atlantes Freedom™, a state-of-the-art marine toilet engineered for superior performance and unmatched comfort on any vessel. Combining innovative Vortex-Vac technology with a sleek, minimalistic design, the Atlantes Freedom™ ensures a pristine and user-friendly bathroom experience for all aboard.

Product Overview

The Atlantes Freedom™ revolutionizes marine bathroom experiences by integrating all essential components within the bowl, minimizing clutter and enhancing aesthetic appeal. Featuring a robust metal handle on the side, it offers an intuitive flush mechanism that is easy to use, even for those unfamiliar with marine toilets. The streamlined design not only appeals to all users but also simplifies cleaning, maintaining a spotless appearance with minimal effort.

Advanced Vortex-Vac Technology

Equipped with the cutting-edge Vortex-Vac technology, the Atlantes Freedom™ efficiently evacuates waste using a vacuum action created by the integrated pump. Unlike traditional vacuum toilets that rely on remote generators, our system ensures reliable performance without the need for prolonged pump operation. This results in effective waste removal with optimized water usage, making it both eco-friendly and efficient.

Standard Features

• One-piece china bowl for seamless design and easy cleaning
• Anti-clog "Power Shred" discharge system to prevent blockages
• Household-style appearance for enhanced aesthetic appeal
• Stainless steel handle with smart toilet control for easy flushing
• Freshwater solenoid ensures clean flushing water
• Powerful bronze cutting blades designed to shred most objects

Benefits

• Reliable Vortex-Vac technology for efficient waste removal
• Flexible installation options for easy integration into any vessel
• Low power consumption to preserve energy resources
• Three operational modes: Fill, Dry Flush, and Fill & Flush
• Prevents clogs and performs excellently even in commercial applications
• Easy to clean and maintain with minimal effort
• Diaphragm intake pump can operate dry without damage
• Microprocessor-controlled with a solid-state circuit breaker for reliability
• No internal fuses or relays, reducing maintenance needs
• Versatile installation above or below the waterline on any vessel

Raritan Programmable Smart Toilet Control

The Raritan Smart Toilet Control offers fully programmable flush options, allowing users to customize their experience with ease. Adjust flush settings directly from the panel without the need to remove any components.

• Normal Flush: Initiates a timed flush sequence, automatically cycling through intake and discharge modes for maximum bowl rinse and effective waste removal.
• Water Saver: Utilizes half the water of a normal flush, conserving water while maintaining effective bowl refills.
• Water Only: Adds water to the bowl without discharging contents, perfect for pre-wetting the bowl or minimizing water usage.
• Empty Only: Evacuates the bowl without using water, allowing controlled discharge during manual operation.

Specifications

Attribute	Details
Color	White
Gallons Per Minute	3 GPM
Inlet Size	1/2"
Operation Method	Electric
Outlet Size	1"
Rinse Water	Fresh
Suction Lift	4' ft.
Volts	12V
Type	Toilet
Size	Household Size
Box Dimensions	19"H x 19"W x 26"L
Weight	60 lbs
UPC	085462029219

Important Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Downloads

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
