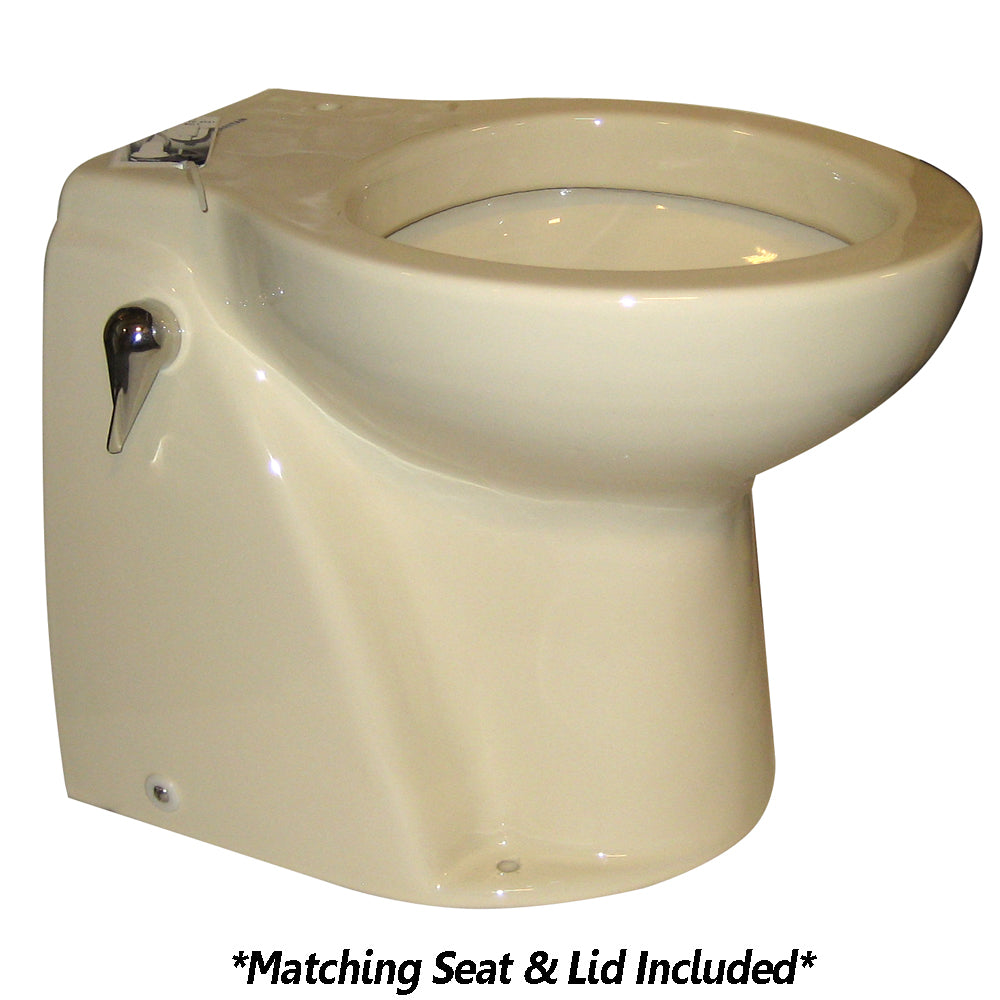

Raritan Atlantes Freedom w/Vortex-Vac - Household Style - Bone - Remote Intake Pump - Smart Toilet Control - 12v

The Atlantes Freedom™ is a state-of-the-art marine toilet designed to provide ease of use and superior performance on any vessel. Combining innovative Vortex-Vac technology with a sleek, minimalistic design, this toilet ensures a comfortable and hassle-free experience for all boaters.

Innovative Design for Marine Comfort

The Atlantes Freedom™ revolutionizes marine sanitation by integrating all components within the bowl, minimizing external clutter and enhancing the overall aesthetic. The addition of a sturdy metal handle on the side of the bowl simplifies flushing, making it accessible and intuitive for everyone on board. This thoughtful design not only reduces intimidation for those unfamiliar with marine toilets but also appeals to aesthetic sensibilities, especially among female users who appreciate the clean and smooth lines that make cleaning effortless.

Advanced Vortex-Vac Technology

Equipped with the same Vortex-Vac technology as the Marine Elegance, the Atlantes Freedom™ offers an enhanced flushing mechanism. Unlike traditional vacuum toilets that rely on remote vacuum generators, the Vortex-Vac system uses a built-in pump to create a vacuum action, efficiently moving waste from the bowl with minimal water usage. This results in a more reliable and water-efficient flush cycle, ensuring effective waste removal without the need for prolonged pump operation.

Standard Features

• One-piece china bowl for easy cleaning
• Anti-clog "Power Shred" discharge system
• Household-style design for familiar operation
• Stainless steel handle with smart toilet control
• Remote intake pump for flexible installation
• Powerful bronze cutting blades that shred most objects

Key Benefits

• Efficient Vortex-Vac technology for reliable waste removal
• Simple and flexible installation options
• Low power consumption for energy efficiency
• Three modes of operation: Fill, Dry Flush, and Fill & Flush
• Prevents clogs and performs excellently in both marine and commercial settings
• Easy to clean and maintain with minimal upkeep
• Diaphragm intake pump can operate dry without damage
• Microprocessor control with a solid-state circuit breaker for enhanced reliability
• No fuses or relays inside the unit for easier maintenance
• Installation flexibility: can be installed above or below the waterline on any vessel

Raritan Smart Toilet Control

The Raritan Smart Toilet Control offers fully programmable flush settings, allowing users to customize their flushing experience without the need to adjust any physical components. With multiple flush options, users can optimize water usage based on their specific needs.

• Normal Flush: Initiates a timed flush sequence that maximizes bowl rinse and refills the bowl to ensure cleanliness.
• Water Saver: Uses half the water of a normal flush while still maintaining bowl cleanliness.
• Water Only: Adds water to the bowl without discharging its contents, ideal for wetting the bowl before use or maintaining a specific water level.
• Empty Only: Evacuates the bowl contents without using water; the discharge pump operates only while the button is pressed.

Specifications

Feature	Details
Color	Bone
Gallons Per Minute	3 GPM
Inlet Size	3/4"
Operation Method	Electric
Outlet Size	1-1/2"
Rinse Water	RAW
Suction Lift	4'
Volts	12V
Type	Toilet
Size	Household Size
Box Dimensions	19"H x 19"W x 26"L
Weight	62 lbs
UPC	085462029455

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
