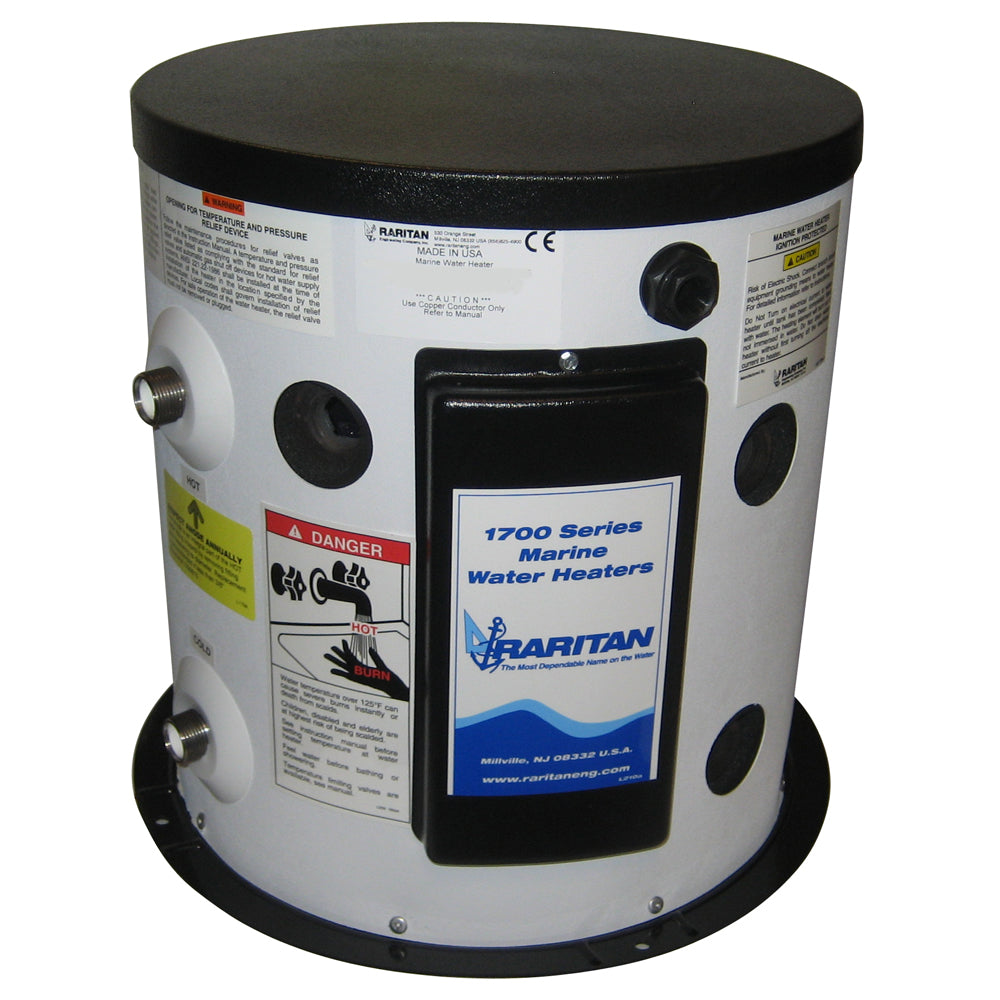

Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v

The 1700 Series Water Heater is specifically engineered for marine and boating applications, delivering reliable hot water for your galley and shower needs. Combining durability with advanced technology, this water heater ensures optimal performance even in the most demanding marine environments.

Key Features

• Power Supply: 120V
• Capacity: 6 Gallons
• Heat Exchanger: Integrated Engine Heat Exchanger for efficient heat transfer
• Insulation: Dense foam insulation for superior and extended heat retention
• Safety: Equipped with a 75 PSI Temperature and Pressure (T&P) relief valve
• Design: Cylindrical tank shape to withstand higher pressure compared to cube-shaped tanks
• Thermostat: Ignition-protected, adjustable thermostat ranging from 110°F to 160°F with a safety shutdown limit of 190°F
• Plumbing Connections: Simplified installation with all plumbing connections on the same side, featuring 3/4" male NPT for hot and cold water and 3/4" female NPT for heat exchanger connections

Innovative Heat Exchanger

The 1700 Series includes a state-of-the-art heat exchanger that seamlessly connects to your boat's engine cooling system. This feature allows you to access hot water while underway or when generator power is unavailable. The heat exchanger is over seven feet long and evenly coiled throughout the tank's interior, ensuring rapid and efficient heating.

Benefits

• Easy Installation: Retrofits to most on-board pressure systems with minimal effort.
• Longevity: Proven long-life design built to endure the rigors of the marine environment.
• Durability: Glass-lined steel tank offers greater durability compared to stainless steel alternatives.
• Corrosion Resistance: Attractive polymer jacket resists corrosion from moisture and dampness.
• Safety and Control: Adjustable, ignition-protected thermostat with safety shutdown for enhanced safety.
• Pressure Handling: Round tank design withstands more pressure, ensuring reliability under stress.
• Efficiency: Environmentally friendly CFC-free foam insulation promotes high efficiency and environmental responsibility.
• Maintenance: Replaceable magnesium anode protects the tank and neutralizes acids in the water.
• Warranty: Backed by a five-year Limited Warranty on the tank and a two-year Limited Warranty on the unit, supported by Raritan’s legendary technical support team.
• Quality Assurance: Each unit is hand-assembled and individually tested to ensure top-notch performance.

Specifications

Feature	Details
Capacity	6 Gallons
Heat Exchanger	Yes
Voltage	120V
Dimensions	19"H x 19"W x 20"L
Weight	33 lbs
UPC	085462001499

Warranty and Support

The 1700 Series Water Heater is covered by a five-year Limited Warranty for the tank and a two-year Limited Warranty for the entire unit. Each water heater is meticulously assembled by hand and individually tested to ensure exceptional quality. Raritan’s renowned technical support team is always available to assist you with any questions or concerns.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
