PSS Shaft Seal 1-1/2" Shaft 2-1/2" Tube

Introducing the PSS Shaft Seal, the premier choice for marine professionals seeking reliable and efficient sealing solutions for boat propeller shafts. Engineered for durability and ease of maintenance, this shaft seal is trusted by top boat builders and marine enthusiasts worldwide.

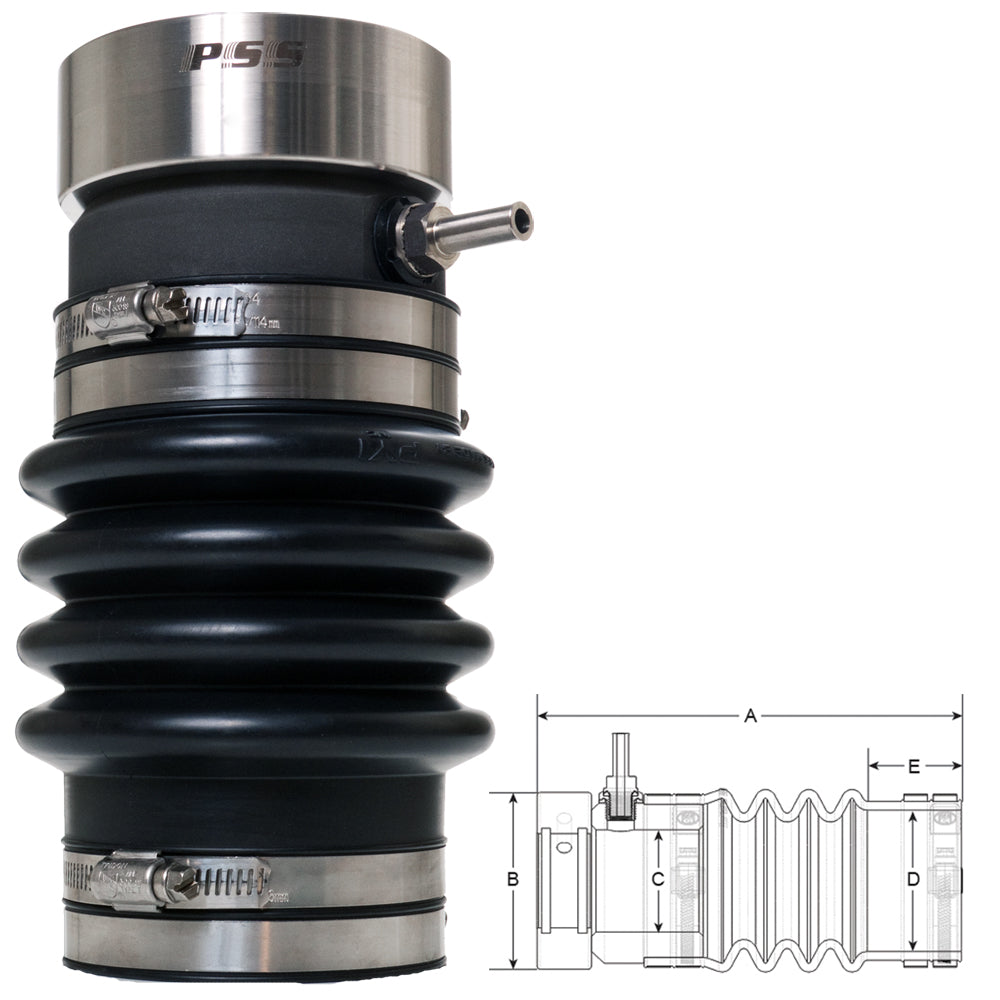

Product Specifications

Specification	Details
Shaft Diameter	1-1/2"
Stern Tube Diameter (D)	2-1/2" to 2-5/8"
Total Length (A)	9.175"
Compressed Length (Compressed A)	8.175"
Rotor Diameter (B)	3.75"
Carbon Cuff Diameter (C)	3.25"
Stern Cuff Length (E)	2"

Why Choose the PSS Shaft Seal?

The PSS Shaft Seal is the world's top-selling marine mechanical seal, installed as standard equipment by many of the most reputable boat builders and yards. Certified by Bureau Veritas, ABS, and RINA, it stands as the premier retrofit (aftermarket) sealing solution on the global market.

Key Benefits

• Eliminates the maintenance, constant adjustment, and costs associated with traditional packing type glands.
• Provides a 100% water-tight seal, preventing water from entering the bilge.
• Reduces wear on the propeller shaft, enhancing the longevity of your boat's propulsion system.
• Easily retrofitted to shafts ranging from 3/4" (20mm) to 6" (150mm).

Advanced Design Features

The PSS Shaft Seal utilizes a mechanical face seal created between the flat surfaces of the rotating stainless steel rotor and the stationary carbon flange. This design ensures optimal performance through several innovative features:

• Floating Carbon Flange: Bored larger than the shaft diameter, allowing it to compensate for misalignment and absorb vibrations.
• Stainless Steel Rotor: Compresses the bellows before securing the collar to the shaft with set-screws, maintaining consistent contact between seal faces and compensating for thrust from the propeller.
• Durable O-Rings: Recessed into the collar, these o-rings rotate with the shaft and rotor without experiencing wear during operation.

Installation and Compatibility

The PSS Shaft Seal is designed for straightforward installation, making it a preferred choice for both new builds and retrofits. Its versatility ensures compatibility with a wide range of shaft sizes, from 3/4" (20mm) to 6" (150mm).

Maintenance and Longevity

Regular Inspection Required: As with any rubber hose below the waterline, the PSS bellows should be inspected periodically for signs of wear, aging, or chemical deterioration. PYI recommends replacing the bellows every six years as part of preventative maintenance. During bellows replacement, it is also advisable to replace the o-rings and set screws in the stainless steel rotor.

Note: In environments where non-sealed batteries emit sulfuric acid vapor, increased inspection frequency is necessary. Sulfuric acid vapor accelerates rubber deterioration, as does the presence of an ozonater.

Maintenance Kit

The Maintenance Kit includes all necessary components to keep your PSS Shaft Seal functioning optimally:

• 1 PSS bellow
• 2 O-rings
• 5 set screws
• 4 new hose clamps
• 1 allen key

Additional Resources

Download the Brochure (PDF)
