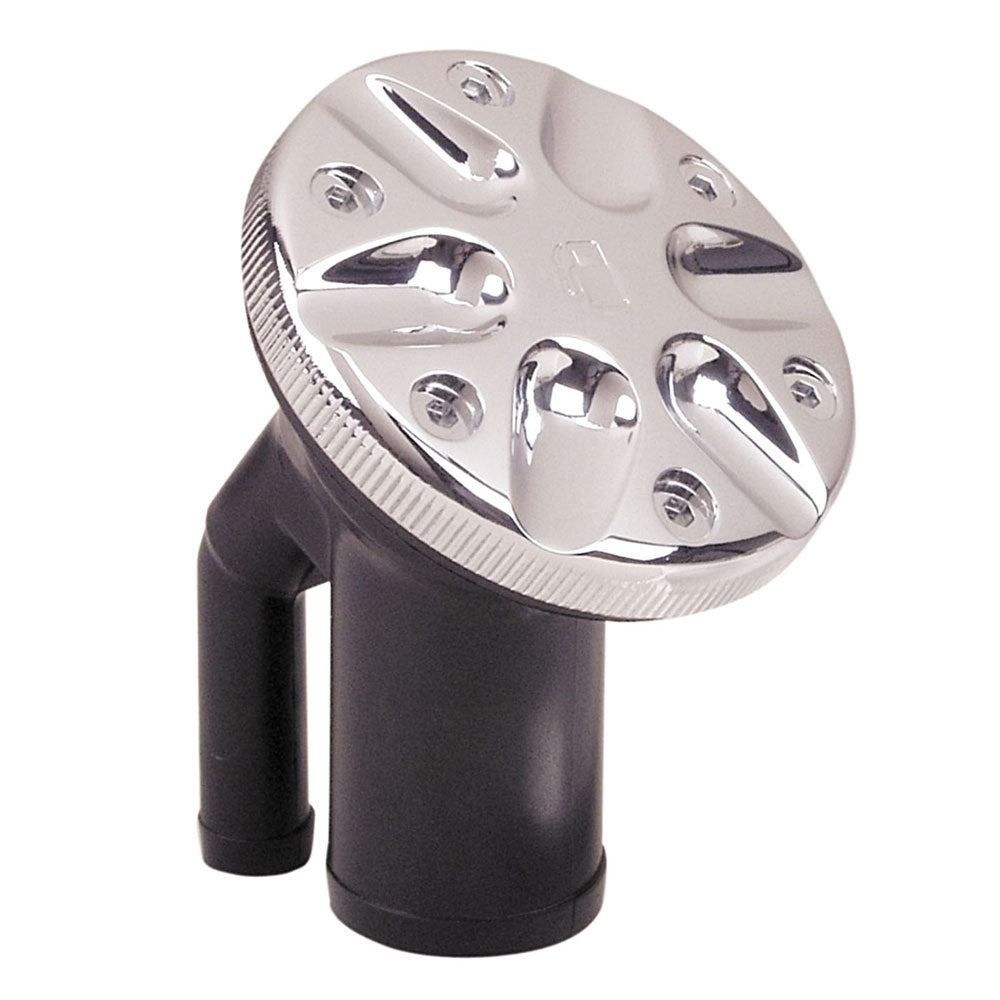

Perko 0590 Vented Fill f/1-1/2" Hose - Angled Neck - Chrome

Ensure your boat's fuel system operates efficiently and safely with the 0590 Vented Fill Hose. Specifically designed for marine applications, this vented fill hose facilitates smooth fuel transfers while maintaining proper tank ventilation, essential for optimal engine performance and safety on the water.

Key Features

• Chrome Plated Bronze Cap: Offers superior corrosion resistance, ensuring longevity even in harsh marine environments.
• Black Polymer Body: Combines durability with lightweight construction for reliable performance.
• Stainless Steel Bead Chain: Enhances the hose's strength, providing added protection against wear and tear.
• Integral Tank Vent: Equipped with a flame arrestor and anti-surge valve (available on diesel models) to ensure safe and controlled fuel ventilation.
• Deck Plate Key Not Required: Simplifies installation by eliminating the need for additional deck plate keys.
• Mounting Ring Included: The package includes a mounting ring (Fig. 0540DPRBLK), recommended for all installations to ensure a secure fit.

Technical Specifications

Specification	Details
Hose Size	1-1/2"
Vent Hose Size	5/8"
Mounting Hole Diameter	2-1/8"
Outer Diameter of Flange	3-3/8"
Neck Length	2-7/16"
Screw Size	#8

Installation Guidelines

For a secure and reliable installation, it is highly recommended to use the Mounting Ring (Fig. 0540DPRBLK) included in the Diesel Package. This ensures a proper fit and minimizes the risk of leaks. Follow these steps for installation:

1. Choose an appropriate location on your boat's deck for mounting the fill hose.
2. Measure and mark the mounting hole diameter of 2-1/8" to ensure precise placement.
3. Install the mounting ring securely using the provided screw size #8.
4. Attach the vented fill hose to the mounting ring, ensuring all connections are tight and free from debris.
5. For diesel applications, verify that the integral tank vent features the flame arrestor and anti-surge valve are properly installed.

Always adhere to marine safety standards during installation to prevent fuel leaks and ensure the longevity of your boat's fuel system.

Why Choose the 0590 Vented Fill Hose?

Designed with marine enthusiasts in mind, the 0590 Vented Fill Hose offers unmatched durability, safety, and ease of installation. Whether you're refueling during a weekend trip or ensuring your vessel is ready for long voyages, this vented fill hose stands out as a reliable component in your boat's fuel system.
