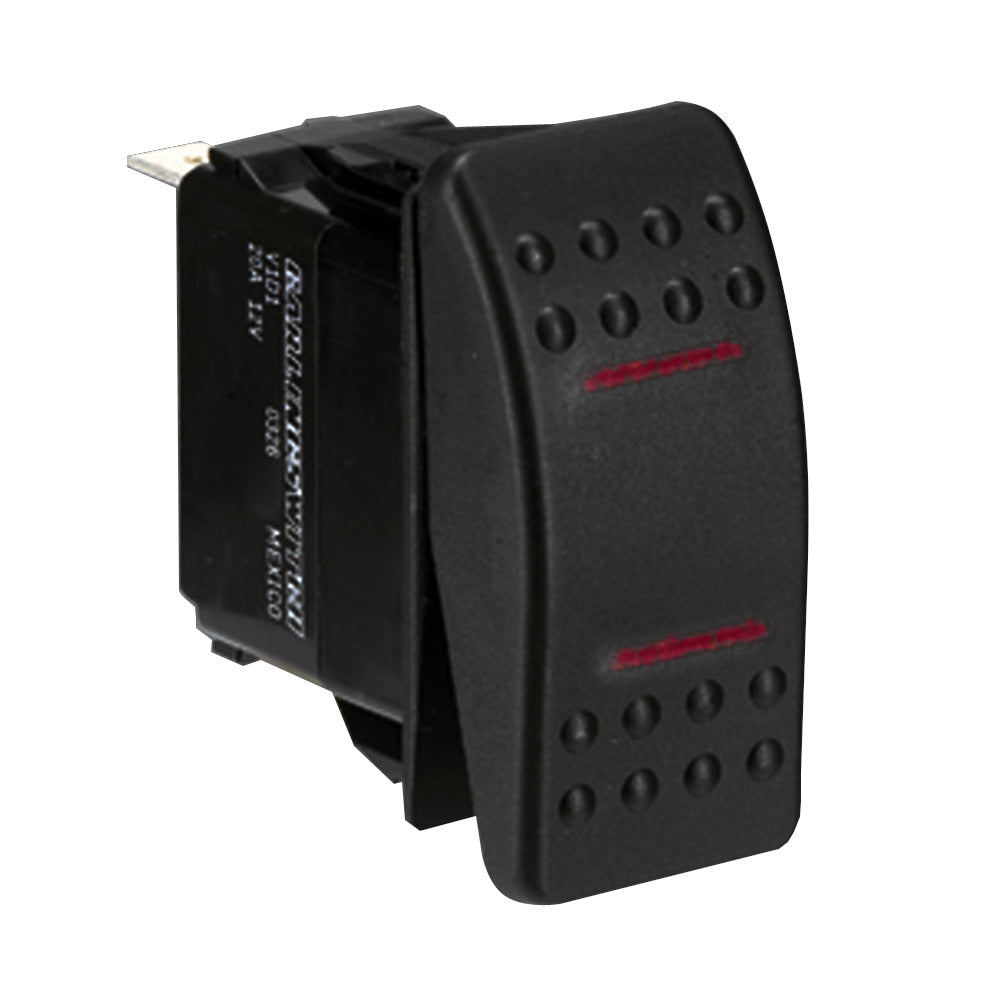

Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch

The Waterproof Contura Rocker Switch is engineered for marine and boating applications, offering robust performance and reliability in harsh marine environments. Its durable construction and sealing ensure optimal functionality, whether you're navigating open waters or docking.

Key Features

• Configuration: Single Pole/Double Throw (SPDT) for versatile control options.
• Waterproof Rating: Sealed to IP68 standards as per IEC 529, ensuring complete protection against water ingress.
• Ignition Protection: Meets UL 1500 and ISO 8846 requirements, providing enhanced safety in ignition-sensitive environments.
• Actuator Design: Black textured actuators with a hard surface and bumps for tactile feedback and easy operation.
• Electrical Ratings:
  • Red incandescent indicator available in 12VDC 20A or 24VDC 15A configurations (ABYC E-11.12.1.1).
  • Contacts rated for 12VDC 20A or 24VDC 15A (ABYC E-11.12.1.1).
• Moisture Resistance: Compliant with Mil-Std 202F, Method 107F for DC moisture resistance.
• Sealing Options: Optional rubber gaskets (P/N 004-176) provide a watertight panel seal meeting IP67 standards.
• Terminals: Standard 1/4" male tab terminals without barriers (ABYC E-11-14.5.4 Exception).
• Accessories: Includes a black hole plug (P/N 001-295) for secure installations.

Specifications

Attribute	Details
Color	Black
Throw/Pole	Single Pole/Double Throw (SPDT)
Action	On/Off/On
Box Dimensions	1" H x 1" W x 1" L
Weight	0.05 lbs
UPC	602290100127
