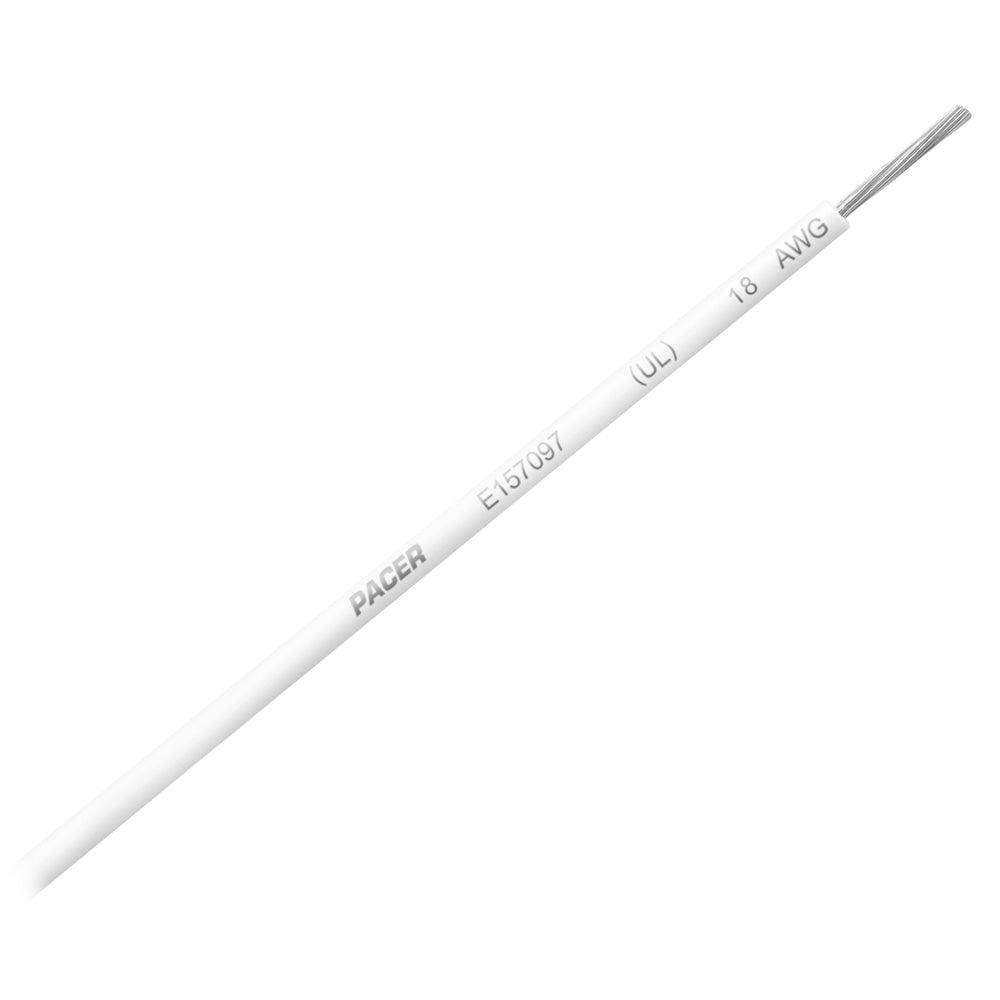

Pacer White 18 AWG UL Marine Wire - 35'

Engineered to withstand the demanding conditions of marine environments, Pacer's White 18 AWG UL Marine Wire offers exceptional durability, flexibility, and corrosion resistance. Manufactured in Sarasota, FL, USA, this high-quality marine wire ensures reliable performance for all your boating and marine electrical needs.

Key Features

• Stranded, tinned copper conductors for superior conductivity and flexibility
• Color-coded, highly flexible proprietary PVC insulation for easy identification and handling
• Exceptional resistance to corrosion, alkali, abrasion, acid, gas, oil, flame, and moisture
• Built to meet and exceed UL, ABYC, and NMMA standards for marine applications

Compliance and Certification

• AWM 1015/1230 certified
• CSA: TEW compliant
• Temperature Rating: 105°C Dry, 60°C Wet

Technical Specifications

Parameter	Details
Conductor	Type III annealed finely stranded tinned copper ASTM B172 Class K
Insulation	Flexible, color-coded PVC, operating temperature -20°C to 105°C
Voltage Rating	600-V
Resistance To	Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture
AWG	18
Length	35 ft.
Color	White
Condition Stranding	16/0.0100
Nominal Insulation Thickness	0.030
Nominal Outer Diameter	0.114
Nominal Circular Mils	1600
Approximate LB/M	10.3
Box Dimensions	2"H x 4"W x 4"L
Weight	0.5 lbs
UPC	0840248214889

Applications

• Point-to-point wiring in marine vessels
• Internal wiring of panels and motors in boats and ships
