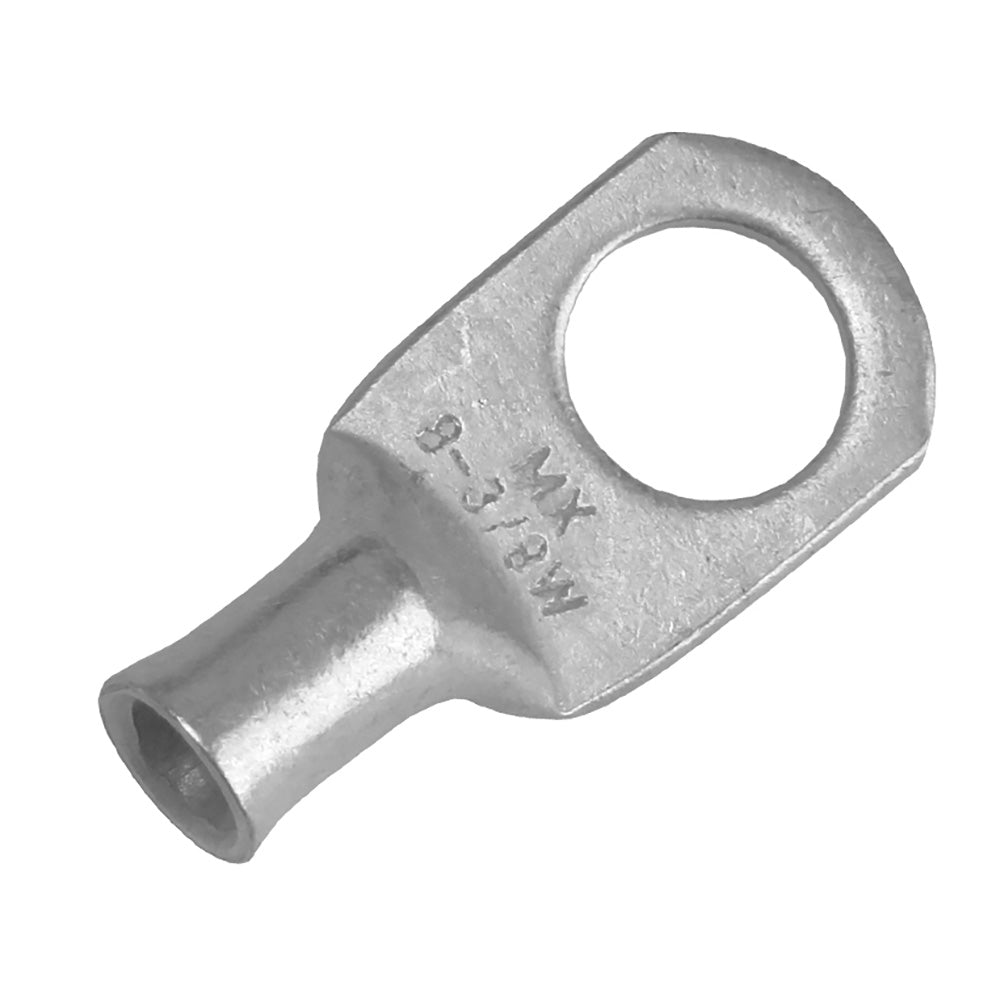

Pacer Tinned Lug 8 AWG - 3/8" Stud Size - 10 Pack

Tinned Lug 8 AWG - 3/8" Stud Size - 10 Pack are essential connectors designed for marine and boating applications. These closed-end lugs provide durable and long-lasting electrical connections, ensuring reliability even in harsh marine environments. Their tin-plated, seamless construction allows for waterproof connections, making them ideal for use on boats and other watercraft.

Why Choose Tinned Lug 8 AWG

Creating a strong and secure connection is critical for any electrical system, especially in marine settings where exposure to moisture and the elements is constant. Pacer's closed-end lugs are engineered to deliver superior performance and longevity.

Key Benefits:

• Waterproof Connections: When used with epoxy-lined heat shrink, the lug fully envelops the conductor, preventing any exposure to moisture.
• Durable Construction: Made from seamless tubes of 99.9% copper, these lugs offer higher conductivity and resistance to corrosion.
• Ease of Installation: Designed for easy cable insertion with a highly controlled flare and tight barrel-to-pad transition.
• Versatile Sizes: Available in wire sizes from 8 AWG to 4/0 AWG and stud sizes including #10, 1/4", 5/16", 3/8", and 1/2".
• Compliance and Safety: UL & CSA approved, RoHS compliant, and exceeds SAE conductivity standards.

Features

• Tin Plated for corrosion resistance
• No exposed seams, enhancing durability
• Rated for 600V applications
• Seamless 99.9% copper construction for superior conductivity
• Designed specifically for stranded copper wires
• Larger pad area ensures better electrical contact
• Cable size and stud hole stamped on the pad for easy identification
• Can be crimped or soldered for secure connections
• Highly controlled flare allows for easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliance

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL & CSA Approved for safety and reliability
• RoHS Compliant, ensuring environmentally friendly materials
• Exceeds SAE Conductivity Standards J163 & J1811

Specifications

Attribute	Details
Wire AWG	8
Stud Size	3/8”
Length	1.344”
Width	0.609”
Clearance	0.406”
Package Size	10
Heat Shrink	No
Type	Lugs
Box Dimensions	1"H x 5"W x 9"L
Weight	0.15 lbs
UPC	840248209885

Installation Instructions

1. Strip the wire or cable to the appropriate length.
2. Slide the lug over the exposed wire, ensuring the insulation is flush with the edge of the lug.
3. Crimp the lug using the correct crimping tool for a secure connection.
4. For added durability and waterproofing, apply epoxy-lined heat shrink over the connection.

Additional Resources

For more detailed information, download our Brochure (PDF).

Contact Us

Choosing the right closed-end lug can be challenging. If you have any questions or need assistance, contact a Pacer expert today.
