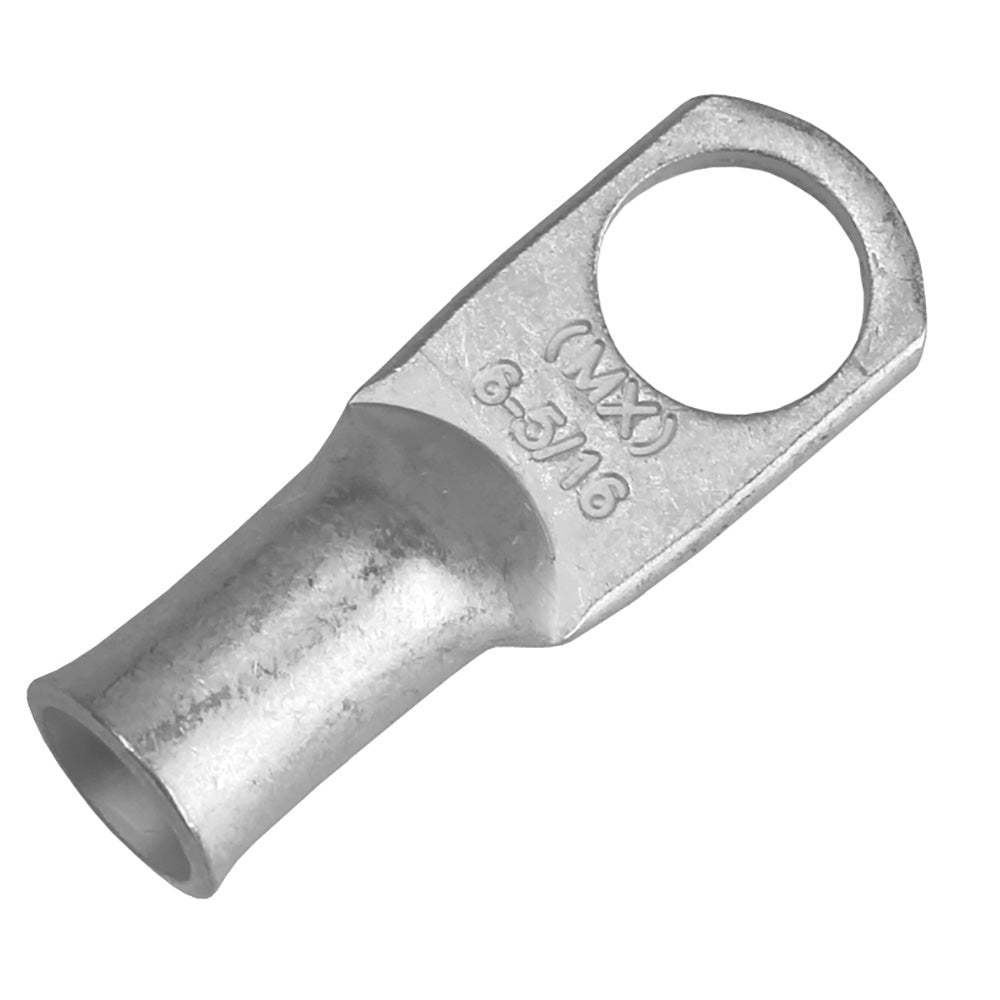

Pacer Tinned Lug 6 AWG - 5/16" Stud Size - 10 Pack

Ensure reliable and long-lasting electrical connections on your marine vessel with our Tinned Lug 6 AWG - 5/16" Stud Size. Specifically engineered for the demanding marine environment, these closed-end lugs provide exceptional durability and corrosion resistance, making them ideal for boaters who prioritize safety and performance.

Superior Quality for Marine Applications

Creating a strong connection is essential to every electrical system, especially in marine settings where exposure to moisture and harsh conditions is inevitable. Our closed-end lugs are tin-plated and feature seamless construction, eliminating exposed seams that could compromise the connection's integrity. This design not only enhances durability but also ensures longevity, making them perfect for marine and boating applications.

Waterproof Connections

Achieve watertight connections effortlessly by combining our closed-end lugs with epoxy-lined heat shrink. The closed-end design fully envelops the conductor, preventing any exposure to the elements. Follow these simple steps to secure your connection:

1. Strip your wire or cable to the appropriate length.
2. Slide the lug over the exposed wire, ensuring the insulation abuts the edge of the lug.
3. Crimp the lug using the correct tool for a secure fit.
4. Apply epoxy-lined heat shrink for added protection and durability.

Key Features

• Tin Plated: Provides excellent corrosion resistance, ideal for marine environments.
• No Exposed Seams: Enhances durability and prevents moisture ingress.
• Rated for 600V: Suitable for a wide range of electrical applications.
• High Conductivity: Made from seamless tubes of 99.9% copper for superior electrical performance.
• Designed for Stranded Wires: Ensures a secure connection with flexible cables.
• Larger Pad Area: Offers better contact and reduces resistance.
• Stamped Information: Cable size and stud hole stamped on the pad for easy identification.
• Crimp or Solder: Versatile application methods to suit your installation needs.
• Controlled Flare: Allows for easy and precise cable insertion.
• Tight Barrel to Pad Transition: Provides a longer usable barrel length for improved durability.

Compliance and Certifications

• E.T.P. (Electrolytic Tough Pitch) CDA-110: Ensuring high-quality copper composition.
• ASTM-B-152: Copper rated at 100% conductivity for optimal electrical performance.
• UL & CSA Approved: Meets stringent safety and quality standards.
• RoHS Compliant: Environmentally responsible manufacturing.
• Exceeds SAE Conductivity STD J163 & J1811: Superior to standard industry conductivity requirements.

Product Specifications

Attribute	Details
Wire Gauge	6 AWG
Stud Size	5/16”
Length	1.266”
Width	0.438”
Clearance	0.344”
Package Quantity	10
Heat Shrink	No
Type	Lugs
Box Dimensions	1"H x 5"W x 9"L
Weight	0.15 lbs
UPC	840248209854

Additional Resources

For more detailed information, download our Brochure (PDF).
