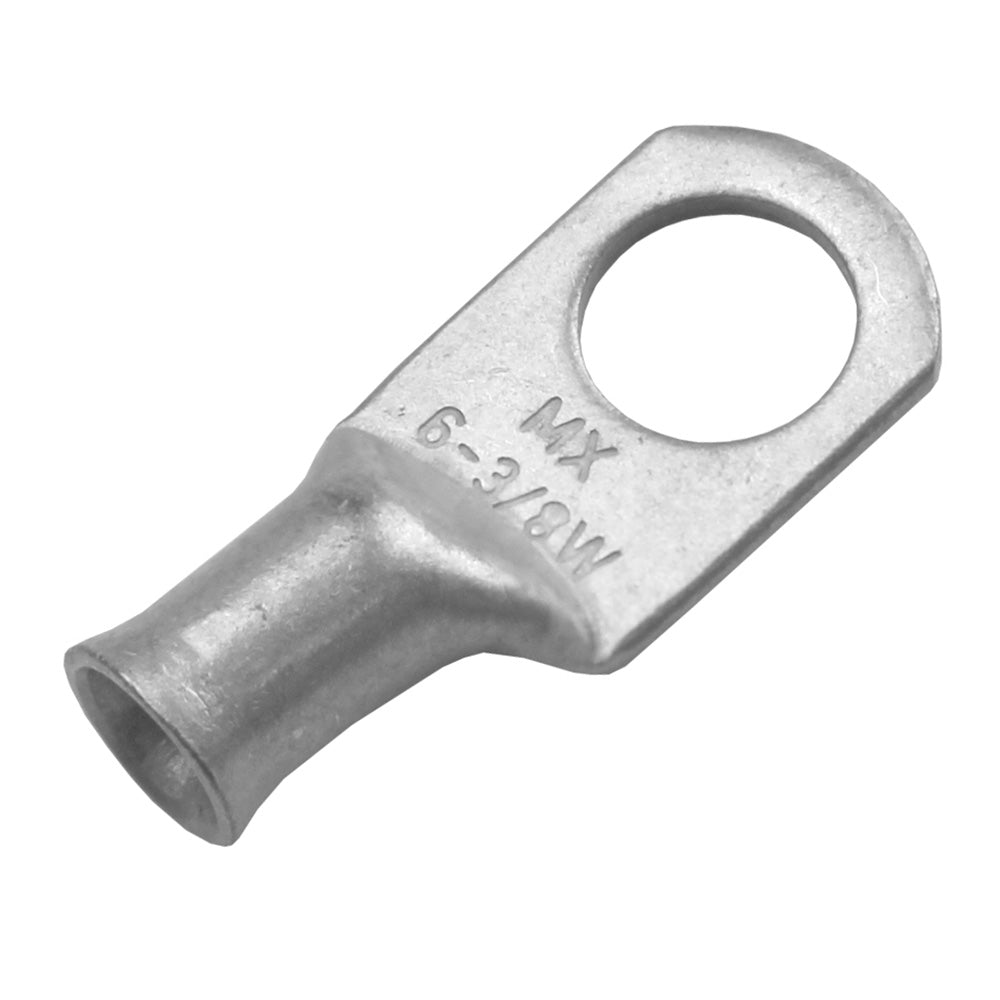

Pacer Tinned Lug 6 AWG - 3/8" Stud Size - 10 Pack

Ensure the reliability and longevity of your marine electrical systems with our Tinned Lug 6 AWG - 3/8" Stud Size, available in a convenient 10-pack. Specifically designed for marine and boating applications, these closed-end lugs provide robust, waterproof connections that withstand harsh marine environments.

Why Choose Our Tinned Lugs?

Creating a strong electrical connection is crucial for any marine system. Our closed-end lugs offer exceptional durability and longevity, thanks to their tin plating and seamless construction. These lugs are ideal for marine applications as they can create waterproof connections when used with epoxy heat shrink, fully enveloping the conductor and protecting it from the elements.

Installation Guide

1. Strip your wire or cable to the appropriate length.
2. Slide the lug over the exposed wire, ensuring the insulation edges align with the lug.
3. Crimp the lug using the correct tool for a secure connection.
4. For added protection, apply epoxy-lined heat shrink to the connection.

Our closed-end lugs are compatible with wire sizes ranging from 8 AWG to 4/0 AWG and stud sizes including #10, 1/4", 5/16", 3/8", and 1/2". For assistance in selecting the right lug for your application, contact a Pacer expert today.

Features

• Tin Plated: Provides corrosion resistance for marine environments.
• No Exposed Seams: Enhances durability and integrity of connections.
• Rated for 600V: Suitable for high-voltage applications.
• 99.9% Copper: Ensures higher conductivity and reliable performance.
• Designed for Stranded Wires: Perfect for flexible marine wiring systems.
• Larger Pad Area: Offers better contact and connection stability.
• Stamped Information: Cable size and stud hole marked on pad for easy identification.
• Crimp or Solder: Versatile installation options for secure connections.
• Controlled Flare: Allows easy cable insertion with precision.
• Tight Barrel to Pad Transition: Provides longer usable barrel length for flexibility.

Compliance Standards

• E.T.P. (Electrolytic Tough Pitch) CDA-110: Ensures high-quality copper purity.
• ASTM-B-152: Copper rated at 100% conductivity for optimal performance.
• UL & CSA Approved: Meets safety and quality standards.
• RoHS Compliant: Environmentally friendly with restricted hazardous substances.
• Exceeds SAE Conductivity STD J163 & J1811: Superior conductivity standards for automotive and marine applications.

Technical Specifications

Specification	Details
Wire Gauge	6 AWG
Stud Size	3/8”
Length	1.406”
Width	0.609”
Clearance	0.406”
Package Size	10
Heat Shrink	No
Type	Lugs
Box Dimensions	1"H x 5"W x 9"L
Weight	0.15 lbs
UPC	840248209847

Additional Resources

Download the Brochure (PDF)
