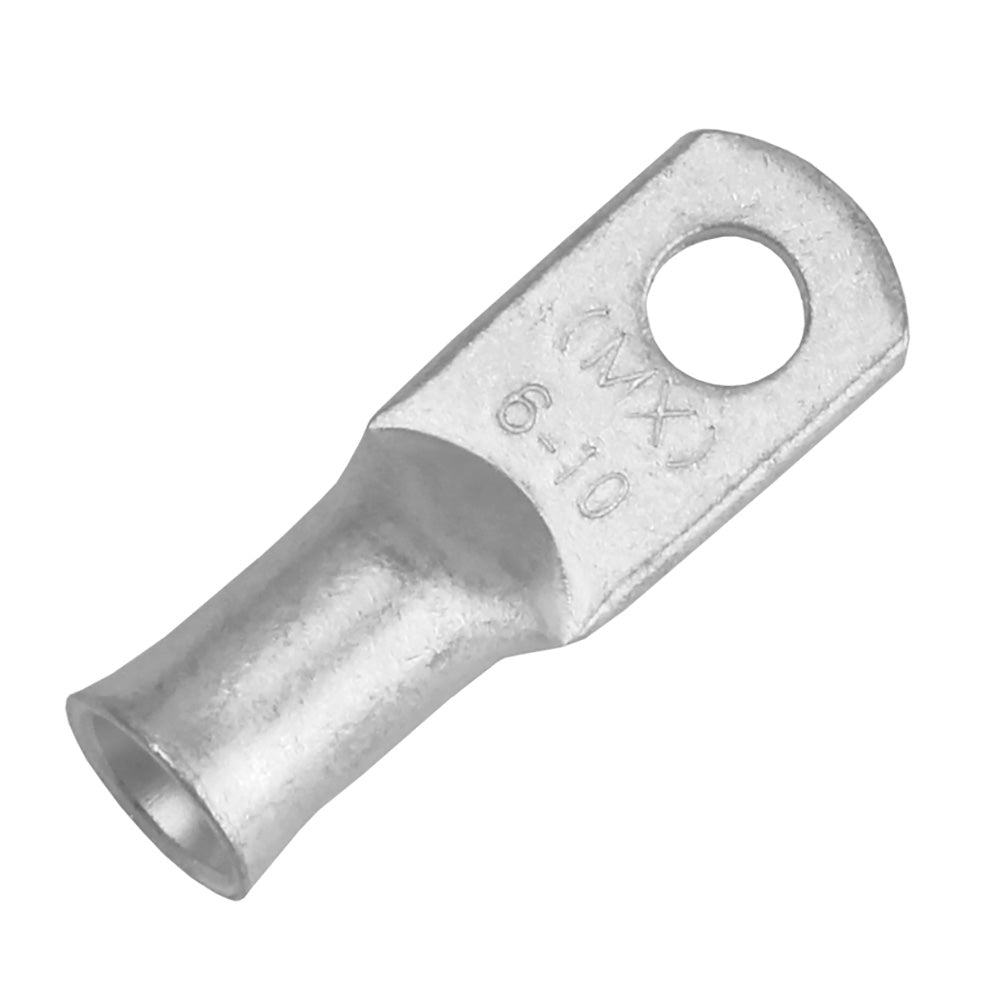

Pacer Tinned Lug 6 AWG - #10 Stud Size - 10 Pack

$12.00 USD

Product Description

Creating reliable and durable electrical connections is paramount for marine and boating applications. The Pacer Tinned Lug 6 AWG - #10 Stud Size - 10 Pack is engineered to provide robust performance in harsh marine environments. Its tin-plated, closed-end design ensures longevity and resistance to corrosion, making it an ideal choice for waterproof and high-conductivity electrical systems on boats and marine vessels.

Key Features

  • Tin plated for enhanced corrosion resistance
  • No exposed seams, ensuring waterproof connections
  • Rated for 600V, suitable for various electrical systems
  • Crafted from seamless tubes of 99.9% copper for higher conductivity
  • Designed for stranded copper wires, ensuring flexible and secure connections
  • Larger pad area for improved electrical contact
  • Cable size and stud hole stamped on the pad for easy identification
  • Compatible with crimping or soldering for versatile installation options
  • Highly controlled flare allows easy cable insertion
  • Tight barrel to pad transition ensures longer usable barrel length

Compliance and Certifications

  • Electrolytic Tough Pitch (E.T.P.) CDA-110
  • ASTM-B-152 copper rated at 100% conductivity
  • UL & CSA Approved for safety and reliability
  • RoHS Compliant, meeting environmental regulations
  • Exceeds SAE Conductivity Standards J163 & J1811

Technical Specifications

Specification Details
Wire Gauge 6 AWG
Stud Size #10
Length 1.266 inches
Width 0.438 inches
Clearance 0.344 inches
Package Quantity 10
Heat Shrink No
Type Lugs
Box Dimensions 1" H x 5" W x 9" L
Weight 0.15 lbs
UPC 840248209823

Installation Instructions

  1. Strip the wire or cable to the appropriate length.
  2. Slide the Pacer closed-end lug over the exposed wire, ensuring the insulation stops at the edge of the lug.
  3. Crimp the lug using the correct crimping tool, or solder if preferred.
  4. Add an epoxy-lined heat shrink to envelop the connection, providing added durability and protection against the elements.

For optimal performance in marine settings, pairing the Pacer closed-end lug with epoxy heat shrink ensures that no part of the conductor is exposed to moisture, preventing corrosion and maintaining a reliable electrical connection.

Why Choose Pacer for Your Marine Electrical Needs

Pacer's closed-end lugs are specifically designed for marine and boating applications, where exposure to water, salt, and harsh conditions is common. The tin plating and seamless construction provide excellent resistance against corrosion, ensuring long-lasting performance. Available in a range of wire gauges from 8 AWG to 4/0 AWG and stud sizes including #10, 1/4", 5/16", 3/8", and 1/2", selecting the right lug for your electrical system is straightforward. If you need assistance in choosing the appropriate lug for your marine project, contact a Pacer expert today.

Download Brochure (PDF)
