Pacer Group  |  SKU: LOS-104980  |  Barcode: 840248209830

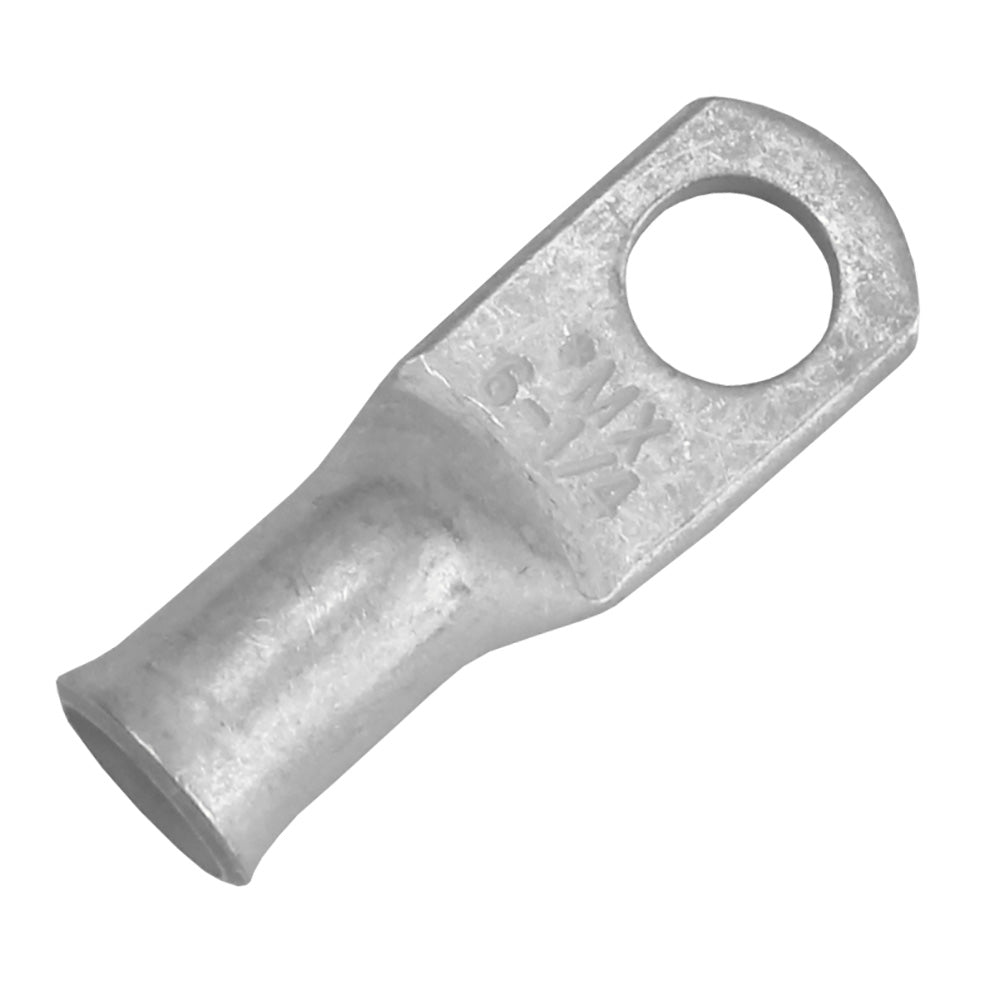

Pacer Tinned Lug 6 AWG - 1/4" Stud Size - 10 Pack

$15.00 USD

Product Description

Introducing Pacer's Tinned Lug 6 AWG - 1/4" Stud Size, a premium solution tailored for marine and boating applications. These closed-end lugs ensure secure, durable, and long-lasting electrical connections, even in the harshest marine environments.

Why Choose Pacer Closed-End Lugs?

In marine electrical systems, reliability is paramount. Pacer's closed-end lugs offer exceptional durability and longevity, thanks to their tin plating and seamless construction. Designed to withstand the corrosive marine environment, these lugs enable waterproof connections when paired with epoxy-lined heat shrink, fully enveloping the conductor to protect against the elements.

Features

  • Tin plated for superior corrosion resistance
  • Seamless construction with no exposed seams
  • Rated for 600V applications
  • Made from 99.9% pure copper for enhanced conductivity
  • Specifically designed for stranded copper wires
  • Increased pad area for better electrical contact
  • Wire size and stud hole size stamped on pad for easy identification
  • Compatible with both crimping and soldering
  • Precision flare for effortless cable insertion
  • Tight barrel-to-pad transition for extended barrel length

Compliance & Certifications

  • E.T.P. (Electrolytic Tough Pitch) CDA-110
  • ASTM B-152 copper rated at 100% conductivity
  • UL & CSA Approved
  • RoHS Compliant
  • Exceeds SAE Conductivity Standards J163 & J1811

Specifications

Attribute Details
Wire AWG 6
Stud Size 1/4”
Length 1.266”
Width 0.438”
Clearance 0.344”
Package Quantity 10
Heat Shrink No
Post Size 1/4"
Type Lugs
Box Dimensions 1"H x 5"W x 9"L
Weight 0.15 lbs
UPC 840248209830

Available Stud Sizes & Wire Gauges

Pacer's closed-end lugs are versatile, available in wire sizes ranging from 8 AWG to 4/0 AWG. Stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the right lug for your specific marine application can be challenging; contact a Pacer expert today for assistance in choosing the perfect fit for your electrical needs.

Installation Guide

Installing Pacer's closed-end lugs is simple:

  1. Strip your wire or cable to the appropriate length.
  2. Slide the lug over the exposed wire, ensuring the insulation is flush with the lug's edge.
  3. Crimp the lug using the correct tool for a secure connection.
  4. For added protection, apply epoxy-lined heat shrink to fully envelop the conductor.

Resources

Download Brochure (PDF)
