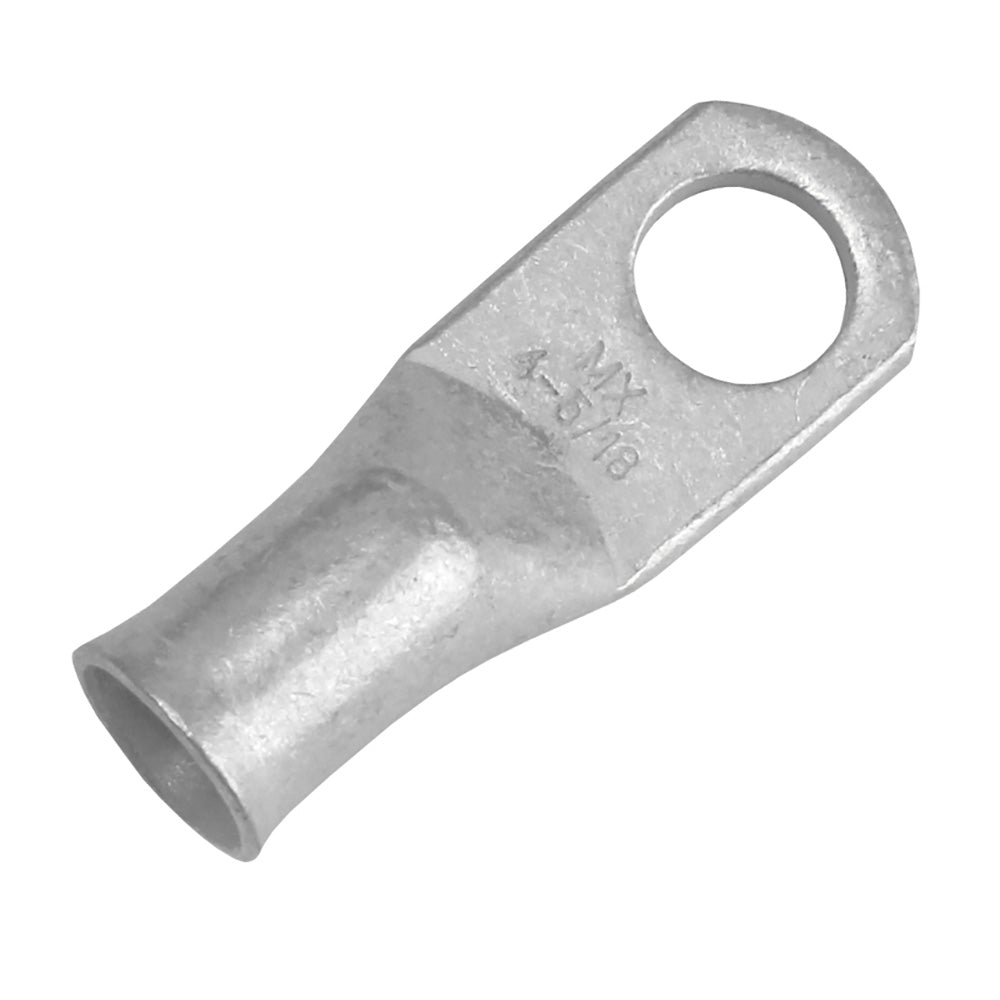

Pacer Tinned Lug 4 AWG - 5/16" Stud Size - 10 Pack

The Pacer Tinned Lug 4 AWG is specifically engineered for marine and boating applications, providing a reliable and waterproof electrical connection solution. With a 5/16" stud size and available in convenient 10-pack quantities, these closed-end lugs ensure durability and longevity even in the harshest marine environments.

Product Features

• ✔️ Tin Plated: Enhances corrosion resistance, ideal for marine settings.
• ✔️ No Exposed Seams: Prevents moisture ingress, ensuring waterproof connections.
• ✔️ Rated for 600V: Suitable for high-voltage marine electrical systems.
• ✔️ High Conductivity: Made from seamless tubes of 99.9% copper for superior electrical performance.
• ✔️ Designed for Stranded Wires: Ensures secure connections with flexible copper strands.
• ✔️ Larger Pad Area: Provides better contact and reduces resistance.
• ✔️ Stamped Information: Cable size and stud hole size clearly marked on the pad for easy identification.
• ✔️ Versatile Installation: Can be crimped or soldered to accommodate different installation preferences.
• ✔️ Controlled Flare: Allows easy cable insertion and ensures a tight seal.
• ✔️ Extended Barrel Length: Tight barrel to pad transition provides a longer usable barrel for accommodating various wire sizes.

Why Choose Pacer Tinned Lugs for Marine Applications?

In marine environments, electrical connections are constantly exposed to moisture, salt, and varying temperatures. Pacer's closed-end tinned lugs are designed to withstand these conditions by creating a sealed, waterproof connection. When combined with epoxy-lined heat shrink tubing, these lugs fully envelop the conductor, eliminating any exposed elements that could lead to corrosion or electrical failure.

Installation is straightforward: strip your wire to the appropriate length, slide the lug over the exposed conductor, and ensure the insulation meets the edge of the lug. Use a proper crimping tool to secure the connection, and for added protection, apply epoxy-lined heat shrink. This process guarantees a robust and long-lasting connection, essential for reliable marine electrical systems.

Compliance and Certifications

• ✔️ E.T.P. (Electrolytic Tough Pitch) CDA-110: Ensures high-quality copper composition.
• ✔️ ASTM B-152: Copper rated at 100% conductivity for optimal performance.
• ✔️ UL & CSA Approved: Meets stringent safety and quality standards.
• ✔️ RoHS Compliant: Environmentally safe and free from hazardous substances.
• ✔️ Exceeds SAE Conductivity STD J163 & J1811: Superior conductivity standards for automotive and marine applications.

Specifications

Attribute	Details
Wire Gauge	4 AWG
Stud Size	5/16”
Length	1.50”
Width	0.531”
Clearance	0.406”
Package Quantity	10
Heat Shrink	No
Type	Lugs
Box Dimensions	1"H x 5"W x 9"L
Weight	0.2 lbs
UPC	840248205818

Additional Resources

For more detailed information, download our Brochure (PDF).
