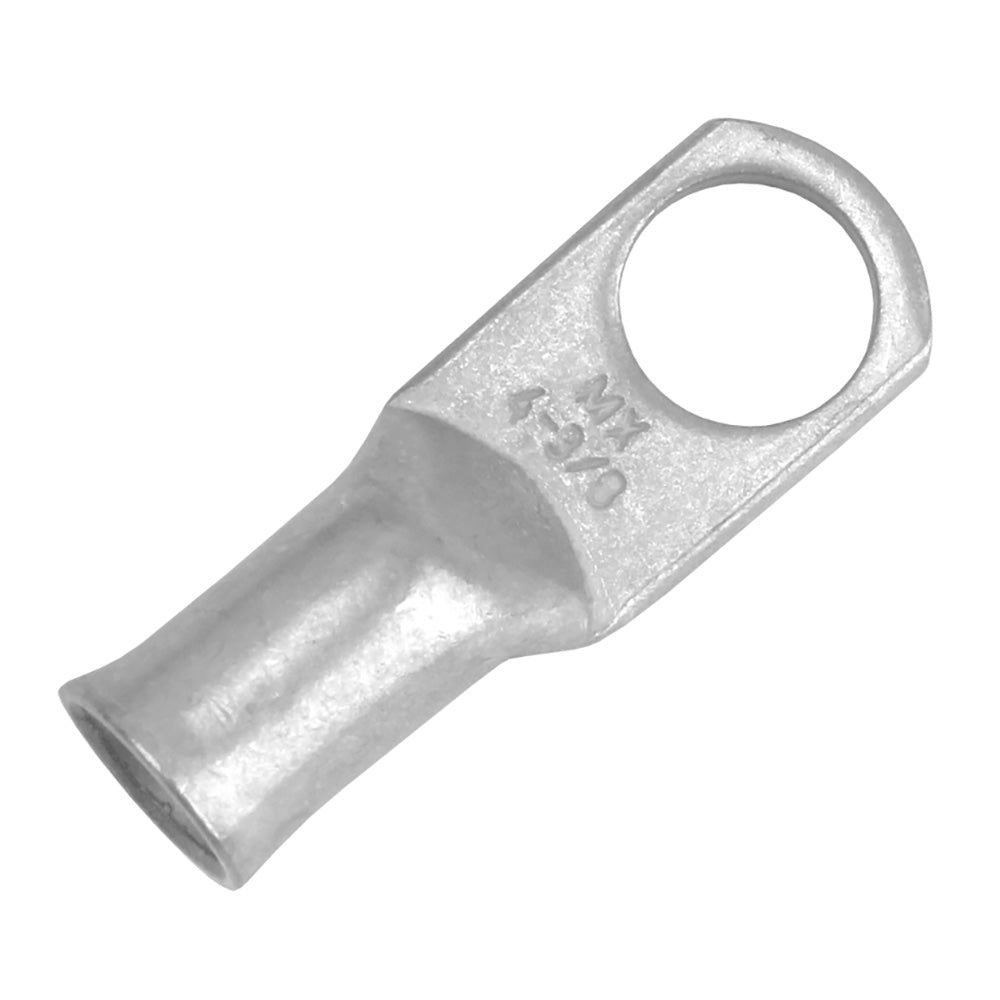

Pacer Tinned Lug 4 AWG - 3/8" Stud Size - 10 Pack

Pacer's Tinned Lug 4 AWG closed-end lugs are specifically designed for marine and boating applications, providing robust and waterproof electrical connections essential for reliable performance on the water. These lugs feature seamless tin plating and are compatible with epoxy heat shrink to ensure long-lasting durability in harsh marine environments.

Product Details

Tinned Lug 4 AWG - 3/8" Stud Size - 10 Pack offers superior conductivity and resistance to corrosion, making them the ideal choice for marine electrical systems. Crafted from 99.9% copper, these lugs ensure optimal performance and longevity for your boating and marine electrical projects.

Key Features

• Tin plated for enhanced corrosion resistance
• No exposed seams, perfect for marine environments
• Rated for 600V applications
• Constructed from seamless tubes of 99.9% copper for higher conductivity
• Designed specifically for stranded copper wires
• Larger pad area ensures better electrical contact
• Cable size and stud hole clearly stamped on the pad for easy identification
• Can be securely crimped or soldered
• Highly controlled flare allows for easy cable insertion
• Tight barrel to pad transition provides a longer usable barrel length

Compliance Standards

• Electrolytic Tough Pitch (E.T.P.) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL & CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity Standards J163 & J1811

Technical Specifications

Wire AWG	4
Stud Size	3/8”
Length	1.688”
Width	0.531”
Clearance	0.406”
Package Size	10
Gauge	4 AWG
Heat Shrink	No
Package Qty	10
Post Size	3/8"
Type	Lugs
Box Dimensions	1"H x 5"W x 9"L
Weight	0.2 lbs
UPC	840248209809

Installation Guide

1. Strip the wire or cable to the appropriate length.
2. Slide the tin-plated lug over the exposed wire, ensuring the insulation is flush with the edge of the lug.
3. Crimp the lug using the correct tool to secure the connection.
4. For added durability and waterproofing, apply epoxy-lined heat shrink to fully envelop the conductor, leaving no part exposed to the elements.

If you're unsure about selecting the right closed-end lug for your marine project, contact a Pacer expert today for personalized assistance and recommendations.
