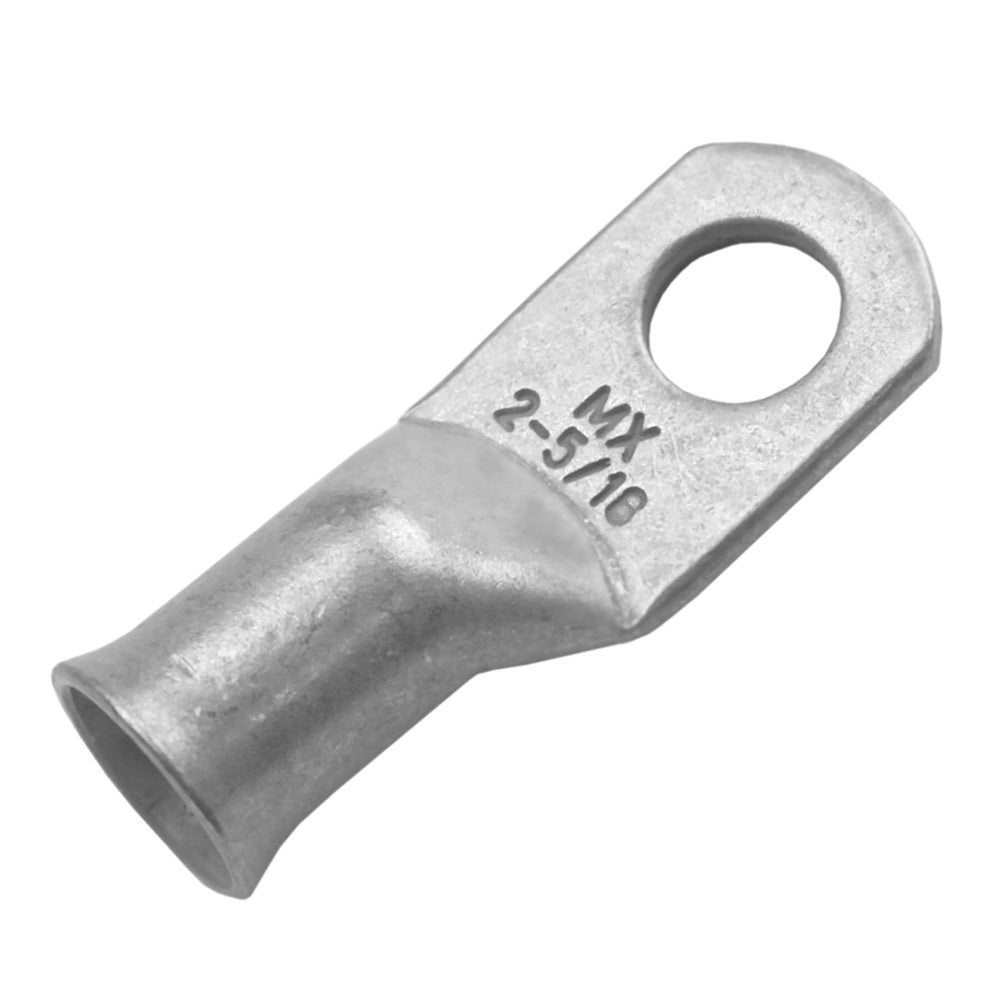

Pacer Tinned Lug 2 AWG - 5/16" Stud Size - 10 Pack

Ensure the reliability and longevity of your marine electrical systems with our Tinned Lug 2 AWG. Designed specifically for the harsh conditions of marine environments, these closed-end lugs provide secure, waterproof connections that stand up to the elements.

Superior Durability for Marine Applications

In the demanding world of boating, creating strong and resilient electrical connections is paramount. Our Tinned Lug 2 AWG is engineered with closed-end construction, offering enhanced durability and longevity. The tin plating and seamless design eliminate exposed seams, making these lugs perfect for marine settings where moisture and saltwater exposure are common.

Easy Installation for Reliable Performance

Installing our Tinned Lug 2 AWG is straightforward and efficient:

1. Strip your wire or cable to the appropriate length.
2. Slide the lug over the exposed wire, ensuring the insulation reaches the edge of the lug.
3. Crimp the lug using the correct tool for a secure connection.
4. For added protection, apply epoxy-lined heat shrink to fully envelop the conductor, creating a waterproof seal.

This simple process ensures that your connections remain safe and reliable, even in challenging marine environments.

Key Features

• Tin Plated: Provides excellent corrosion resistance against saltwater and moisture.
• No Exposed Seams: Enhances waterproofing and reduces the risk of electrical failures.
• Rated for 600V: Suitable for a wide range of electrical applications on your vessel.
• High Conductivity: Made from seamless tubes of 99.9% copper for superior electrical performance.
• Stranded Wire Compatibility: Specifically designed for stranded copper wires, ensuring a secure fit.
• Enhanced Contact Area: Larger pad area for better electrical contact.
• Clear Markings: Cable size and stud hole stamped on pad for easy identification.
• Flexible Installation: Can be crimped or soldered based on your installation needs.
• Controlled Flare: Allows easy cable insertion and secure connection.
• Extended Barrel Length: Tight barrel to pad transition provides longer usable barrel length for versatile installations.

Compliance and Quality Assurance

Our Tinned Lug 2 AWG meets and exceeds industry standards, ensuring top-notch quality and safety:

• E.T.P. (Electrolytic Tough Pitch) CDA-110: High-quality copper for reliable performance.
• ASTM-B-152 Copper: Rated at 100% conductivity for optimal electrical transfer.
• UL & CSA Approved: Certified for safety and compliance with North American standards.
• RoHS Compliant: Free from hazardous substances, ensuring environmental safety.
• Exceeds SAE Conductivity Standards J163 & J1811: Superior conductivity standards for high-performance applications.

Product Specifications

Parameter	Details
Wire AWG	2
Stud Size	5/16”
Length	1.625”
Width	0.609”
Clearance	0.406”
Package Size	10
Gauge	2 AWG
Heat Shrink	No
Post Size	5/16"
Type	Lugs
Box Dimensions	1"H x 6"W x 9"L
Weight	0.25 lbs
UPC	840248209793

Additional Resources

For more detailed information, please refer to our Brochure (PDF).

Why Choose Pacer for Your Marine Electrical Needs?

At Pacer, we understand the unique challenges faced in marine environments. Our Tinned Lug 2 AWG is crafted to deliver optimal performance, ensuring that your vessel's electrical systems remain safe and efficient. Trust in our expertise and commitment to quality to provide you with the best components for your boating adventures.
