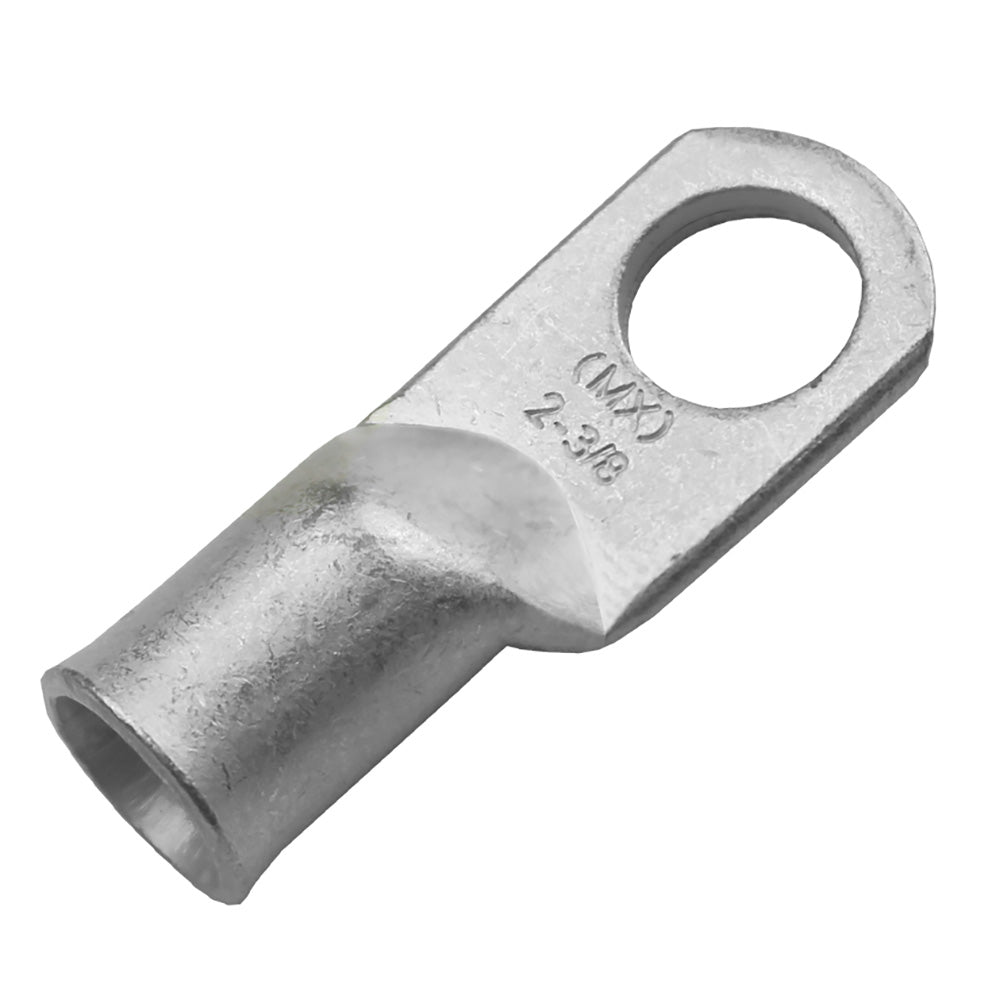

Pacer Tinned Lug 2 AWG - 3/8" Stud Size - 10 Pack

Ensure robust and reliable electrical connections on your marine vessel with our Tinned Lug 2 AWG - 3/8" Stud Size. Specifically designed for marine applications, these closed-end lugs offer exceptional durability and longevity, making them an essential component for any boat's electrical system.

Product Features

• Tin-plated for enhanced corrosion resistance
• Seamless construction with no exposed seams, ideal for harsh marine environments
• Rated for 600V applications, ensuring safety and reliability
• Crafted from 99.9% pure copper for superior conductivity
• Compatible with stranded copper wires for flexible installations
• Expanded pad area provides better electrical contact
• Clear labeling with cable size and stud hole information for easy identification
• Versatile installation options: crimpable and solderable
• Controlled flare design allows easy and secure cable insertion
• Tight barrel-to-pad transition extends the usable barrel length for improved performance

Technical Specifications

Wire Gauge (AWG)	2
Stud Size	3/8"
Length	1.625"
Width	0.609"
Clearance	0.406"
Package Quantity	10
Heat Shrink Included	No
Type	Lugs
Box Dimensions	1" H x 5" W x 9" L
Weight	0.25 lbs
UPC	840248205610

Compliance and Certifications

• E.T.P. (Electrolytic Tough Pitch) CDA-110 certified
• ASTM-B-152 compliant, ensuring 100% conductivity
• UL & CSA Approved for safety and quality
• RoHS Compliant, adhering to environmental standards
• Exceeds SAE Conductivity Standards J163 & J1811

Installation Instructions

1. Strip your wire or cable to the appropriate length.
2. Slide the closed-end lug over the exposed wire, ensuring the insulation is flush with the edge of the lug.
3. Crimp the lug securely using the correct crimping tool.
4. For added protection, apply epoxy-lined heat shrink to create a waterproof seal.
5. Ensure all connections are tight and free from any exposed conductors.

If you have any questions or need assistance selecting the right lug for your application, contact a Pacer expert today.

Additional Resources

Download the Product Brochure (PDF)

Product Video
