Pacer Group  |  SKU: LOS-104989  |  Barcode: 840248209779

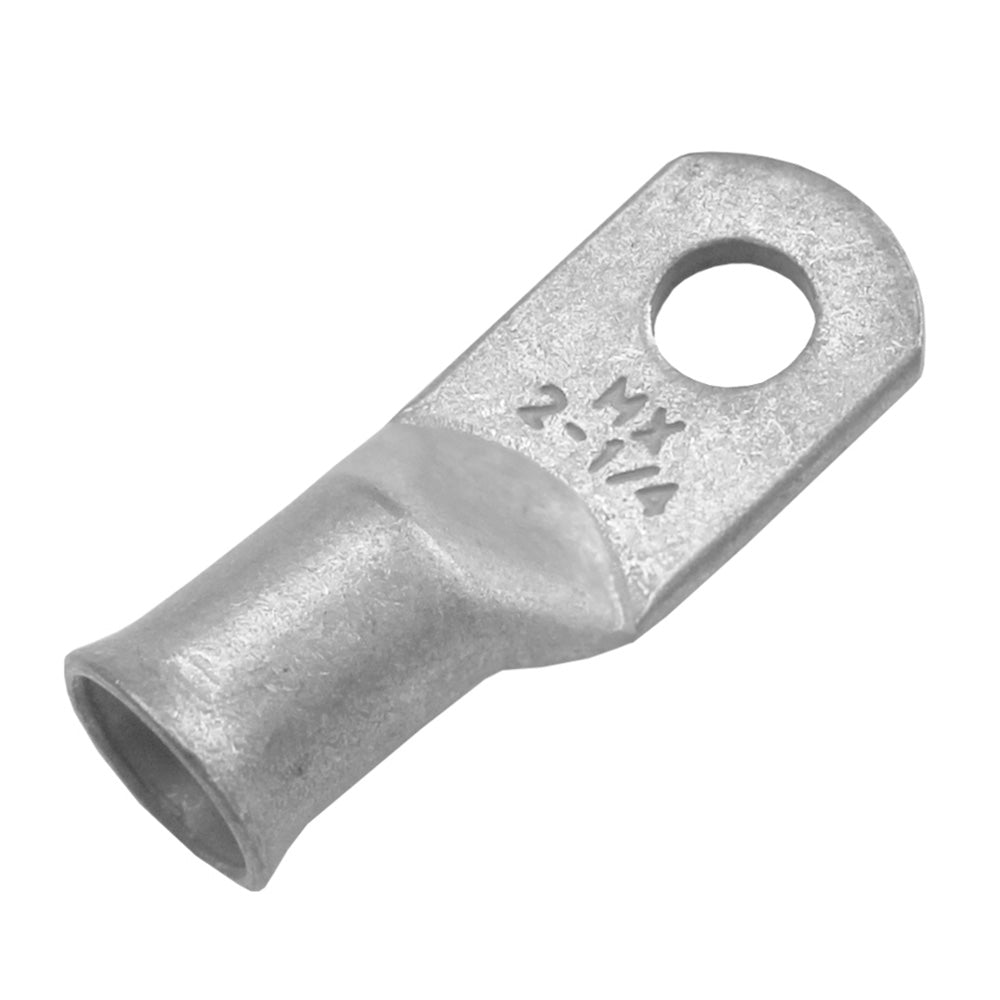

Pacer Tinned Lug 2 AWG - 1/4" Stud Size - 10 Pack

$13.99 USD $15.00

Product Description

Ensure the reliability and longevity of your marine electrical systems with our Tinned Lug 2 AWG closed-end lugs. Specifically designed for the harsh marine environment, these lugs provide superior connectivity and protection against the elements, making them an essential component for any boating enthusiast.

Product Description

Creating a robust and secure electrical connection is crucial in marine applications where exposure to moisture and salt can compromise standard connectors. Our Tinned Lug 2 AWG closed-end lugs are tin-plated to prevent corrosion and feature seamless construction with no exposed seams, ensuring durability and longevity. These lugs are engineered to create waterproof connections when paired with epoxy-lined heat shrink, fully enveloping the conductor and safeguarding against moisture intrusion.

Installation is straightforward: strip your wire or cable to the appropriate length, slide the lug over the exposed wire with the insulation abutting the lug's edge, and use a compatible crimping tool to secure it. For added protection, apply epoxy-lined heat shrink around the connection. Available in various stud sizes and compatible with wire sizes ranging from 8 AWG to 4/0 AWG, our closed-end lugs are versatile and reliable for all your marine electrical needs.

Features

  • Tin-plated for corrosion resistance
  • Seamless construction with no exposed seams
  • Rated for 600V applications
  • Made from seamless tubes of 99.9% copper for enhanced conductivity
  • Designed specifically for stranded copper wires
  • Enhanced contact area with a larger pad
  • Cable size and stud hole clearly stamped on the pad
  • Compatible with both crimping and soldering methods
  • Highly controlled flare for easy cable insertion
  • Tight barrel-to-pad transition for extended barrel length

Compliance

  • E.T.P. (Electrolytic Tough Pitch) CDA-110 certified
  • ASTM B152 compliant with 100% conductivity rating
  • UL & CSA approved for safety and reliability
  • RoHS compliant to meet environmental standards
  • Exceeds SAE Conductivity Standards J163 & J1811

Specifications

Attribute Details
Wire AWG 2
Stud Size 1/4”
Length 1.625”
Width 0.609”
Clearance 0.406”
Package Size 10 Pack
Heat Shrink No
Type Closed-End Lugs
Box Dimensions 1"H x 5"W x 9"L
Weight 0.25 lbs
UPC 840248209779

Additional Information

For detailed product specifications and usage guidelines, please refer to our brochure (PDF).
