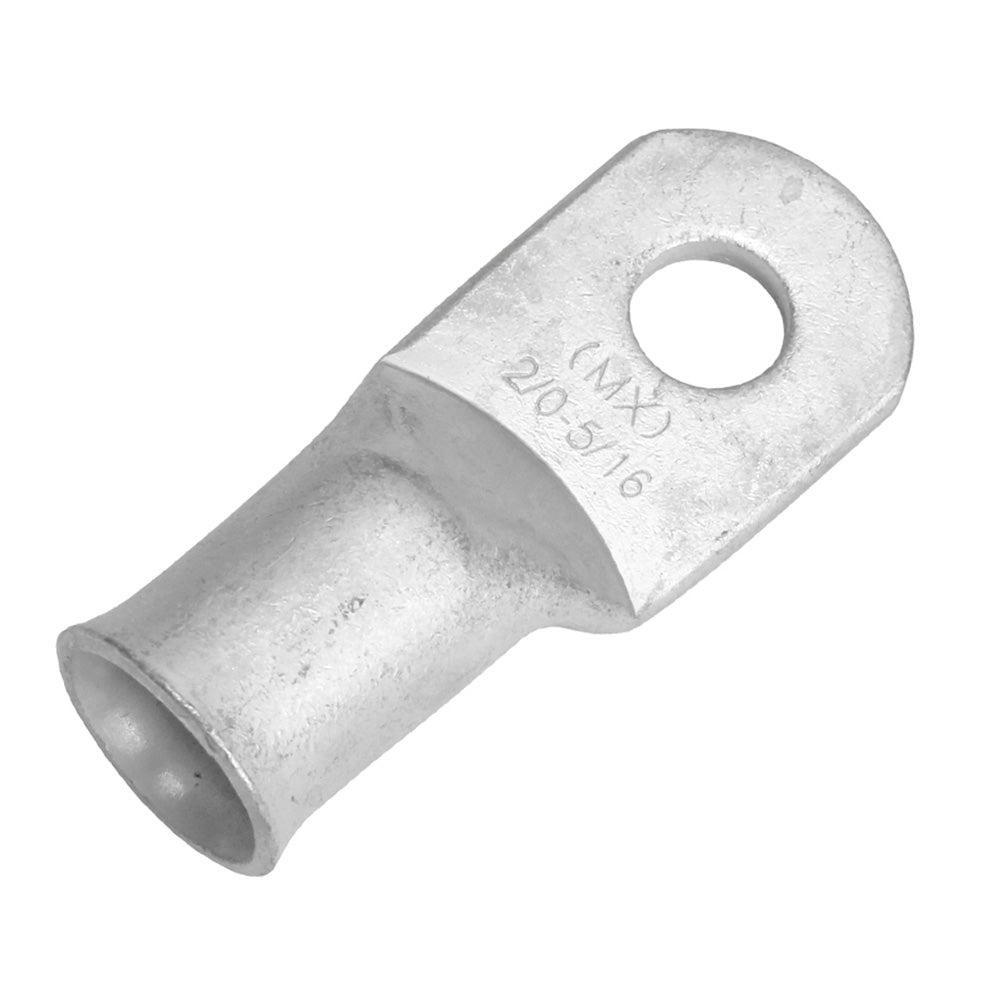

Pacer Tinned Lug 2/0 AWG - 5/16" Stud Size - 10 Pack

For reliable and durable electrical connections in marine and boating applications, Pacer's Tinned Lug 2/0 AWG is the ideal choice. Designed to withstand harsh marine environments, these closed-end lugs ensure long-lasting performance and superior conductivity for your boat’s electrical systems.

Product Overview

Creating a strong connection is essential to every electrical system. Pacer's closed-end lugs are tin-plated and feature a seamless design, making them perfect for marine settings. They allow you to create waterproof connections by fully enveloping the conductor with epoxy heat shrink, protecting your connections from the elements.

Easy Installation

1. Strip your wire or cable to the proper length.
2. Slide the lug over the exposed wire, ensuring the insulation reaches the edge of the lug.
3. Crimp the lug using the appropriate tool.
4. For maximum durability, add epoxy-lined heat shrink.

Key Features

• Tin plated for enhanced corrosion resistance
• No exposed seams, ensuring superior durability
• Rated for 600V applications
• Constructed from seamless tubes of 99.9% copper for higher conductivity
• Compatible with stranded copper wires
• Large pad area for improved contact
• Clearly stamped cable size and stud hole on the pad
• Can be crimped or soldered for versatile installation options
• Highly controlled flare for easy cable insertion
• Tight barrel-to-pad transition for longer usable barrel length

Compliance & Standards

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL & CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 & J1811

Technical Specifications

Wire AWG	2/0
Stud Size	5/16”
Length	2.063”
Width	0.813”
Clearance	0.500”
Package Size	10
Gauge	2/0 AWG
Heat Shrink	No
Package Qty	10
Post Size	5/16"
Type	Lugs
Box Dimensions	1"H x 5"W x 9"L WT: 0.55 lbs
UPC	840248209762

Additional Information

Choosing the correct closed-end lug is crucial for ensuring optimal performance and safety in your marine electrical systems. Pacer's experts are available to assist you in selecting the right lug for your specific needs. Don’t hesitate to reach out with any questions you may have.

Resources

Download Brochure (PDF)
