Pacer Group  |  SKU: LOS-104991  |  Barcode: 840248205535

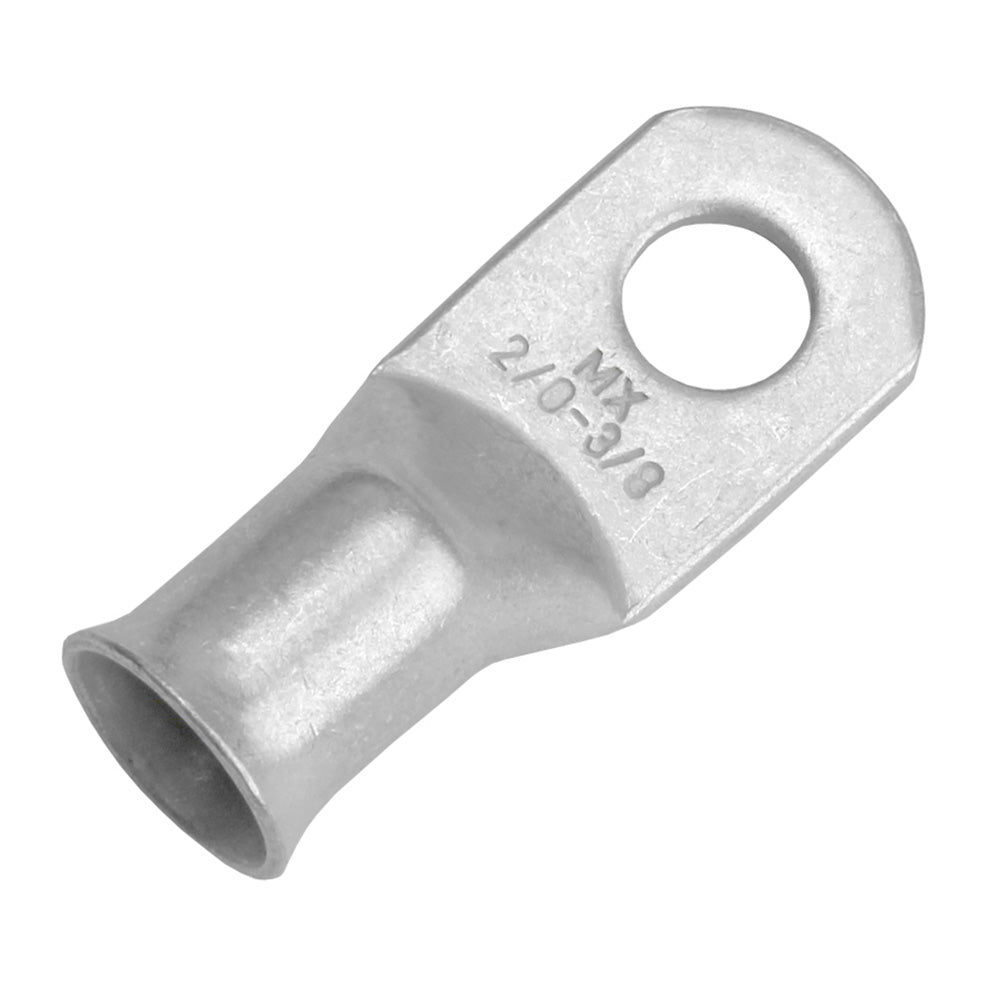

Pacer Tinned Lug 2/0 AWG - 3/8" Stud Size - 10 Pack

$26.99 USD $28.50

Product Description

Ensure the reliability and longevity of your marine electrical systems with our Tinned Lug 2/0 AWG - 3/8" Stud Size. Designed specifically for marine and boating applications, these closed-end lugs provide robust, waterproof connections that withstand harsh marine environments. Tin-plated and seamless, they offer superior conductivity and protection, making them an essential component for any marine electrical setup.

Features

  • Tin plated for enhanced corrosion resistance
  • Seamless design with no exposed seams, ideal for marine environments
  • Rated for 600V applications
  • Constructed from seamless tubes of 99.9% copper for maximum conductivity
  • Optimized for stranded copper wires
  • Increased pad area ensures better electrical contact
  • Cable size and stud hole stamped directly on the pad for easy identification
  • Versatile installation: can be crimped or soldered
  • Precisely controlled flare for effortless cable insertion
  • Tight barrel-to-pad transition extends the usable barrel length

Compliances

  • E.T.P. (Electrolytic Tough Pitch) CDA-110 certified
  • ASTM-B-152 compliant, ensuring 100% copper conductivity
  • UL & CSA Approved for safety and quality standards
  • RoHS Compliant, meeting environmental safety guidelines
  • Exceeds SAE Conductivity Standards STD J163 & J1811

Specifications

Attribute Details
Wire Gauge 2/0 AWG
Stud Size 3/8”
Length 2.063”
Width 0.813”
Clearance 0.500”
Package Size 10 Pack
Heat Shrink No
Type Lugs
Box Dimensions 1"H x 5"W x 9"L
Weight 0.5 lbs
UPC 840248205535

Installation Instructions

Creating a reliable connection is straightforward with our Tinned Lug. Follow these steps to ensure a secure and waterproof installation:

  1. Strip your wire or cable to the appropriate length.
  2. Slide the lug over the exposed wire, ensuring the insulation aligns with the edge of the lug.
  3. Crimp the lug using the appropriate tool for a secure fit.
  4. For added durability, apply epoxy-lined heat shrink to fully envelop the conductor, protecting it from the elements.

If you have any questions or need assistance in selecting the right lug for your application, contact a Pacer expert today.

Download the Brochure (PDF)
