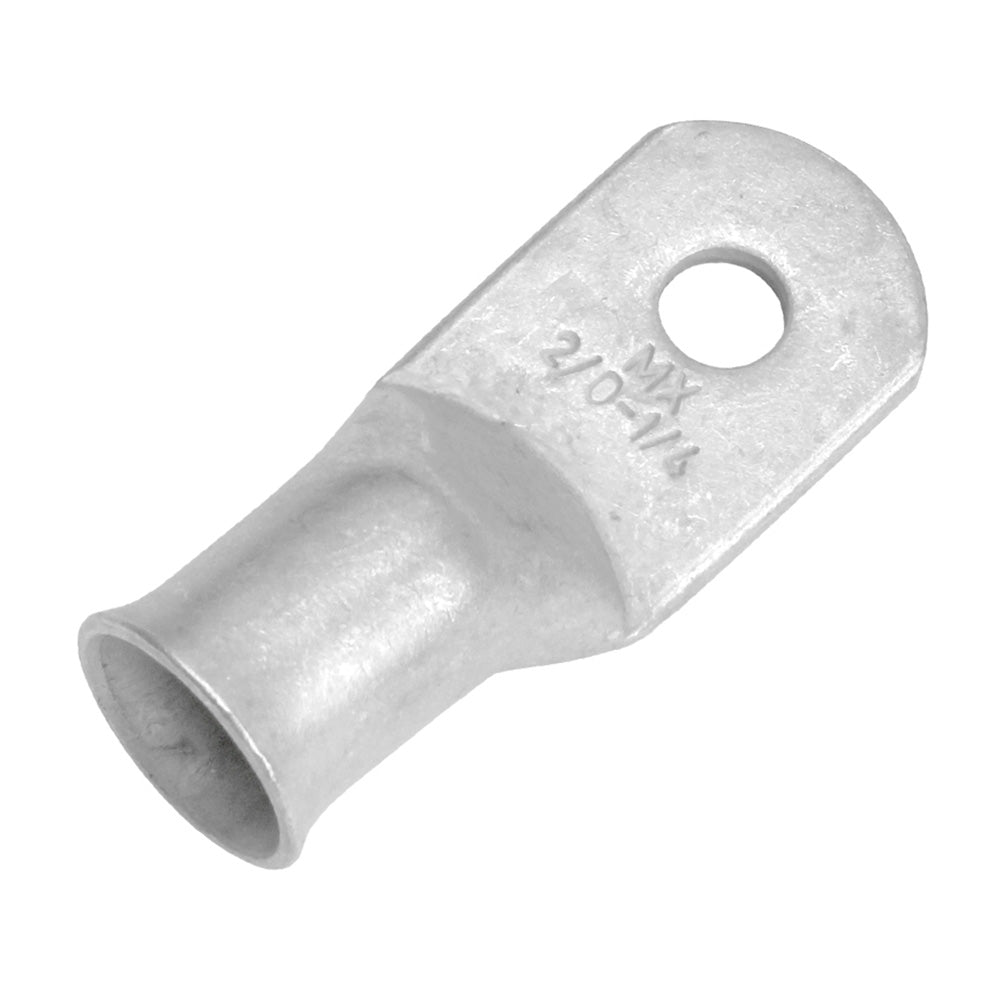

Pacer Tinned Lug 2/0 AWG - 1/4" Stud Size - 10 Pack

$19.99 USD $21.00

Product Description

Enhance your boat's electrical system with Pacer's Tinned Lug 2/0 AWG, specifically engineered for marine applications. These closed-end lugs provide secure, waterproof connections essential for reliable performance in harsh marine environments. Constructed with tin plating and a seamless design, they ensure durability and optimal conductivity, making them ideal for all your boating electrical needs.

Product Overview

A strong and reliable electrical connection is vital for any marine setup. Pacer's Tinned Lug 2/0 AWG offers both durability and longevity through its closed-end design, tin-plated finish, and seamless construction with no exposed seams. Perfect for marine use, these lugs enable waterproof connections when paired with epoxy heat shrink, fully enveloping the conductor and safeguarding against the elements. Installation is straightforward: strip the wire or cable to the required length, slide the lug over the exposed wire ensuring the insulation sits flush with the lug's edge, and crimp with the appropriate tool. For added protection, apply epoxy-lined heat shrink.

Features

  • Tin-plated for superior corrosion resistance in marine environments
  • Seamless construction with no exposed seams to prevent moisture ingress
  • Rated for 600V applications, suitable for boat electrical systems
  • Made from seamless tubes of 99.9% pure copper for enhanced conductivity
  • Designed for use with stranded copper wires commonly found in marine wiring
  • Increased pad area ensures better electrical contact and reliability
  • Cable size and stud hole clearly stamped on the pad for easy identification
  • Compatible with both crimping and soldering installation methods
  • Controlled flare design allows for easy and secure cable insertion
  • Tight barrel-to-pad transition provides longer usable barrel length for flexibility in wiring

Compliance & Certifications

  • E.T.P. (Electrolytic Tough Pitch) CDA-110 compliant for high conductivity
  • ASTM B-152 certified, ensuring 100% copper conductivity
  • UL & CSA Approved, meeting stringent safety and quality standards
  • RoHS Compliant, adhering to environmental regulations
  • Exceeds SAE Conductivity Standards J163 & J1811 for superior performance

Technical Specifications

Wire AWG 2/0
Stud Size 1/4”
Length 2.063”
Width 0.813”
Clearance 0.500”
Package Size 10 Pack
Gauge 2 AWG
Heat Shrink Included No
Post Size 1/4"
Type Closed-End Lugs
Box Dimensions 1"H x 5"W x 8"L
Weight 0.5 lbs
UPC 840248209748

Download the Brochure (PDF)
