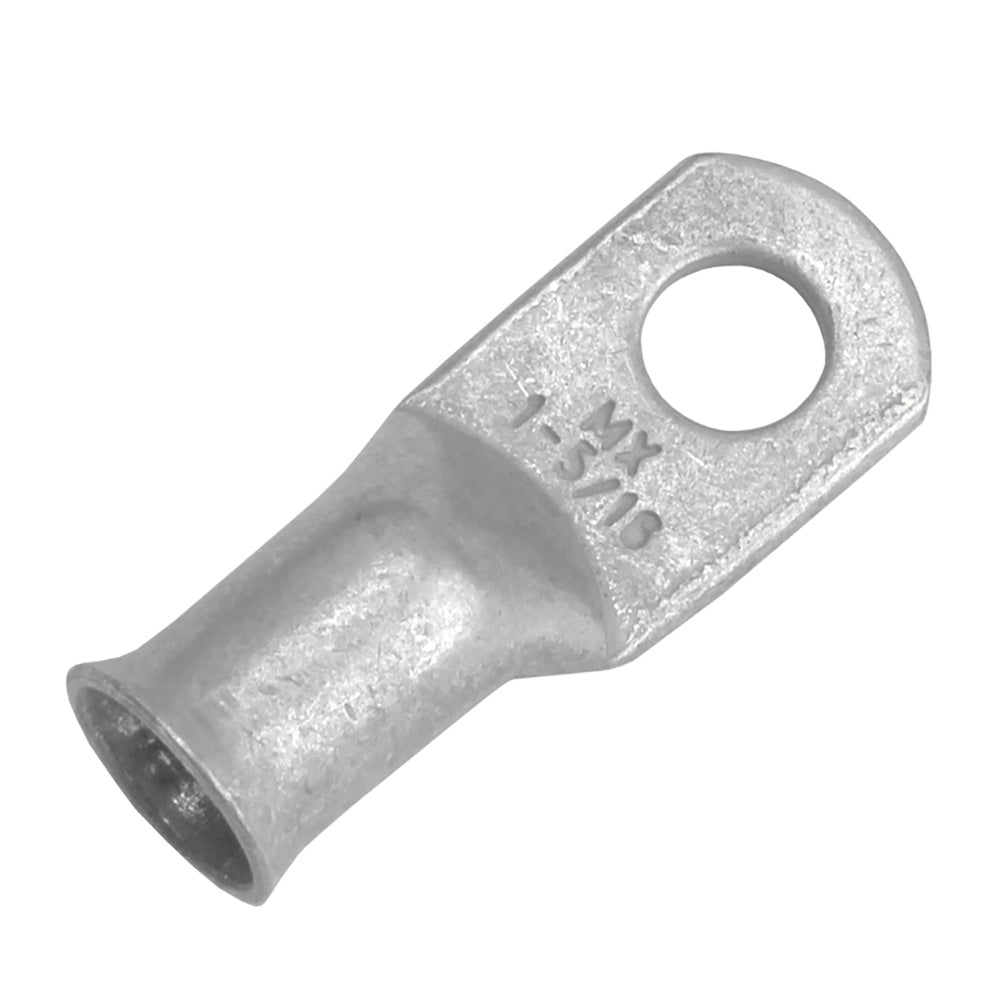

Pacer Tinned Lug 1 AWG - 5/16" Stud Size - 10 Pack

Pacer’s Tinned Lug 1 AWG with a 5/16" stud size is the perfect solution for marine and boating electrical systems. Packaged in a convenient 10-pack, these lugs ensure durable and reliable connections that withstand harsh marine environments, providing both longevity and superior performance for your boat's electrical needs.

Unmatched Durability for Marine Applications

In the demanding marine environment, creating strong and waterproof electrical connections is crucial. Pacer's closed-end tinned lugs are specifically designed to meet these challenges. The tin plating and seamless construction eliminate exposed seams, preventing corrosion and ensuring longevity. When combined with epoxy heat shrink, these lugs fully envelop the conductor, offering a watertight seal that protects against the elements.

Easy Installation for Seamless Performance

Installing Pacer’s Tinned Lugs is straightforward, allowing marine enthusiasts to achieve professional-grade connections with ease:

1. Strip your wire or cable to the appropriate length.
2. Slide the lug over the exposed conductor, ensuring the insulation butts up to the lug’s edge.
3. Crimp the lug using the correct tool for a secure connection.
4. Optional: Add epoxy-lined heat shrink for added waterproofing and durability.

This simple process ensures that your electrical connections remain secure and protected, even in the most demanding marine conditions.

Features

• Tin Plated: Provides excellent corrosion resistance ideal for marine environments.
• Seamless Design: No exposed seams to prevent moisture ingress.
• Rated for 600V: Suitable for a wide range of electrical applications.
• 99.9% Copper: Ensures higher conductivity and reliable performance.
• Optimized for Stranded Wires: Perfectly designed for use with stranded copper cables.
• Large Pad Area: Enhances contact quality for improved electrical flow.
• Clear Markings: Cable size and stud hole stamped on the pad for easy identification.
• Flexible Installation: Can be crimped or soldered based on your preference.
• Controlled Flare: Allows for easy and precise cable insertion.
• Tight Barrel-to-Pad Transition: Provides longer usable barrel length for better connectivity.

Compliance and Certifications

• E.T.P. (Electrolytic Tough Pitch) CDA-110: Ensures high-quality copper purity.
• ASTM-B-152: Copper rated at 100% conductivity for optimal performance.
• UL & CSA Approved: Meets rigorous safety standards.
• RoHS Compliant: Adheres to environmental safety regulations.
• Exceeds SAE Standards: Surpasses SAE Conductivity Standards J163 & J1811 for superior reliability.

Specifications

Parameter	Details
Gauge	1 AWG
Stud Size	5/16”
Length	1.719”
Width	0.692”
Clearance	0.406”
Heat Shrink	No
Package Quantity	10
Type	Lugs
Box Dimensions	1"H x 5"W x 9"L
Weight	0.35 lbs
UPC	840248209731

Additional Resources

Download the Brochure (PDF)
