Pacer Group  |  SKU: LOS-104994  |  Barcode: 840248209724

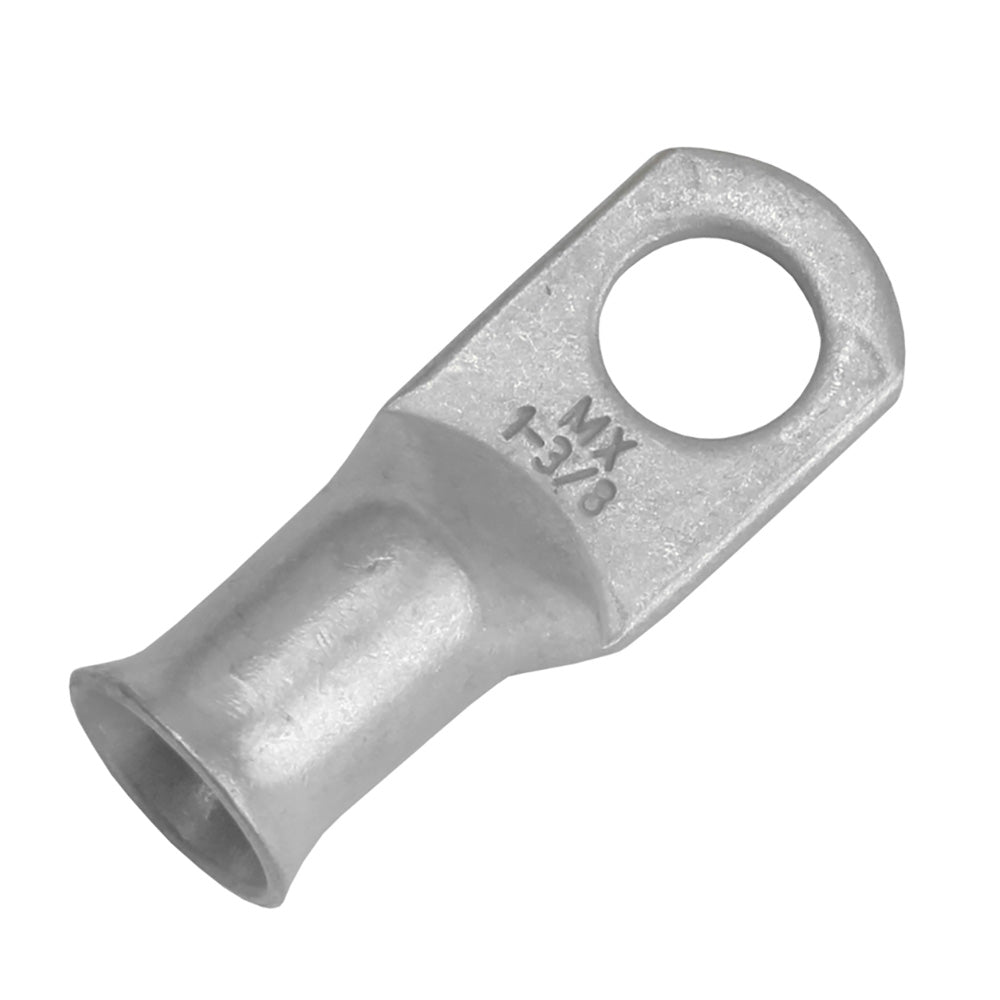

Pacer Tinned Lug 1 AWG - 3/8" Stud Size - 10 Pack

$14.99 USD $16.10

Product Description

Ensure reliable and long-lasting electrical connections on your boat with our Tinned Closed-End Lugs. Designed specifically for marine applications, these lugs provide superior conductivity and protection against the harsh marine environment.

Superior Durability for Marine Environments

In marine settings, electrical connections are constantly exposed to moisture, salt, and vibrations. Our Tinned Closed-End Lugs are engineered to withstand these conditions, offering waterproof connections that prevent corrosion and ensure consistent electrical performance. The tin-plated, seamless copper construction eliminates exposed seams, enhancing longevity and reliability in your marine electrical systems.

Easy Installation for Seamless Connections

Installing our closed-end lugs is straightforward. Simply strip your wire or cable to the appropriate length, slide the lug over the exposed conductor, ensuring the insulation aligns with the lug's edge. Using the correct crimping tool, secure the lug to the wire, and for added protection, apply epoxy-lined heat shrink tubing. This process ensures a fully enveloped, waterproof connection, ideal for the demanding marine environment.

Key Features

  • Tin Plated for corrosion resistance
  • Seamless design with no exposed seams
  • Rated for 600V applications
  • Constructed from 99.9% pure copper for optimal conductivity
  • Designed specifically for stranded copper wires
  • Extended pad area ensures superior contact
  • Clear marking of cable size and stud hole on the pad
  • Compatible with both crimping and soldering methods
  • Precision-controlled flare for easy cable insertion
  • Tight transition from barrel to pad extends usable barrel length

Compliance & Certifications

  • E.T.P. (Electrolytic Tough Pitch) CDA-110 compliant
  • ASTM-B-152 certified copper with 100% conductivity
  • UL & CSA Approved for safety and reliability
  • RoHS Compliant, adhering to environmental standards
  • Exceeds SAE Conductivity Standards J163 & J1811

Product Specifications

Wire Gauge 1 AWG
Stud Size 3/8”
Length 1.719”
Width 0.692”
Clearance 0.406”
Package Quantity 10
Heat Shrink No
Type Lugs
Box Dimensions 1"H x 5"W x 9"L
Weight 0.3 lbs
UPC 840248209724

Additional Information

  • Available in wire sizes from 8 AWG to 4/0 AWG
  • Stud sizes available: #10, 1/4", 5/16", 3/8", and 1/2"
  • For assistance in selecting the right lug, contact a Pacer expert

Download Brochure (PDF)
