Pacer Group  |  SKU: LOS-104995  |  Barcode: 840248209687

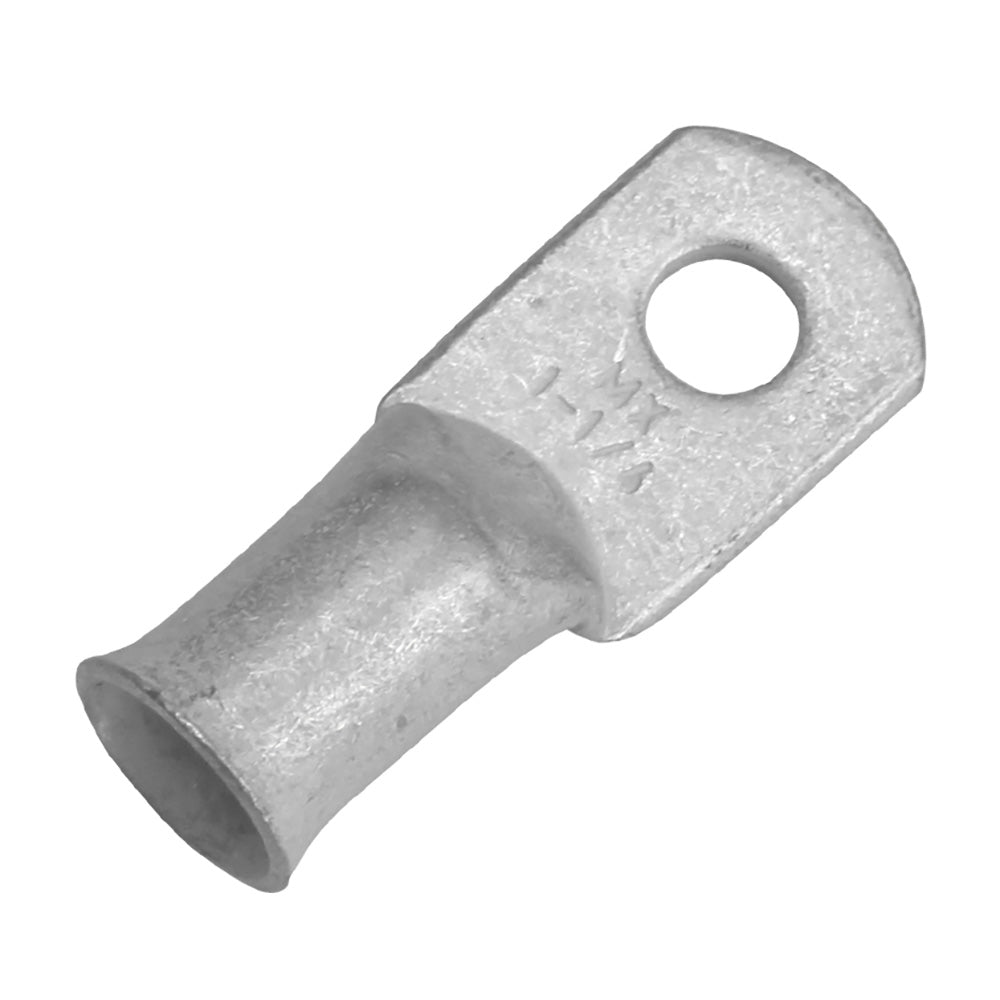

Pacer Tinned Lug 1 AWG - 1/4" Stud Size - 10 Pack

$14.99 USD $16.25

Product Description

Ensure the reliability and longevity of your marine electrical connections with our high-quality Tinned Lug 1 AWG. Designed specifically for the demanding conditions of marine and boating environments, these closed-end lugs provide a secure, waterproof connection that stands up to the elements.

Superior Connection for Marine Applications

Creating a strong and durable connection is paramount in every electrical system, especially in marine settings where exposure to moisture and saltwater is constant. Our closed-end lugs are tin-plated and feature a seamless design with no exposed seams, making them ideal for marine applications. When combined with epoxy-lined heat shrink, these lugs envelop the conductor completely, ensuring a waterproof and corrosion-resistant connection.

Easy Installation

Installing our Tinned Lug 1 AWG is straightforward:

  1. Strip your wire or cable to the proper length.
  2. Slide the lug over the exposed wire, ensuring the insulation meets the edge of the lug.
  3. Crimp the lug using the appropriate tool for a secure fit.
  4. For added durability, apply epoxy-lined heat shrink to seal the connection.

Whether you're a professional electrician or a DIY enthusiast, our lugs are designed for ease of use and reliable performance.

Key Features

  • Tin Plated: Provides excellent corrosion resistance, essential for marine environments.
  • No Exposed Seams: Enhances durability and reduces potential weak points.
  • Rated for 600V: Suitable for a wide range of electrical applications.
  • High Conductivity: Made from seamless tubes of 99.9% copper for superior electrical performance.
  • Designed for Stranded Wires: Ensures a secure connection with flexible conductors.
  • Larger Pad Area: Facilitates better contact and reduces resistance.
  • Stamped Cable Size and Stud Hole: Easy identification for correct installation.
  • Crimp or Solder Compatible: Offers flexibility in your preferred connection method.
  • Controlled Flare: Allows for easy cable insertion and secure fitting.
  • Tight Barrel to Pad Transition: Provides a longer usable barrel length for enhanced performance.

Technical Specifications

Specification Details
Wire Gauge 1 AWG
Stud Size 1/4”
Length 1.719”
Width 0.692”
Clearance 0.406”
Package Quantity 10
Box Dimensions 1"H x 5"W x 9"L
Weight 0.45 lbs
UPC 840248209687

Compliance and Standards

  • E.T.P. (Electrolytic Tough Pitch) CDA-110: Ensures high-quality copper material.
  • ASTM-B-152 Copper: Rated at 100% conductivity for optimal electrical performance.
  • UL & CSA Approved: Meets safety and quality standards.
  • RoHS Compliant: Environmentally friendly with restricted hazardous substances.
  • Exceeds SAE Conductivity STD J163 & J1811: Surpasses industry conductivity standards.

Available Stud Sizes and Wire Gauges

Our closed-end lugs are available in a range of stud sizes and wire gauges to meet your specific needs:

Wire Gauge Stud Sizes Available
8 AWG to 4/0 AWG #10, 1/4", 5/16", 3/8", 1/2"

If you're unsure which lug is right for your application, our team of Pacer experts is ready to assist you. Contact us with any questions to ensure you select the perfect fit for your marine electrical projects.

Additional Information

  • Heat Shrink: Not included
  • Type: Lugs

For a detailed overview, please refer to our Brochure (PDF).
