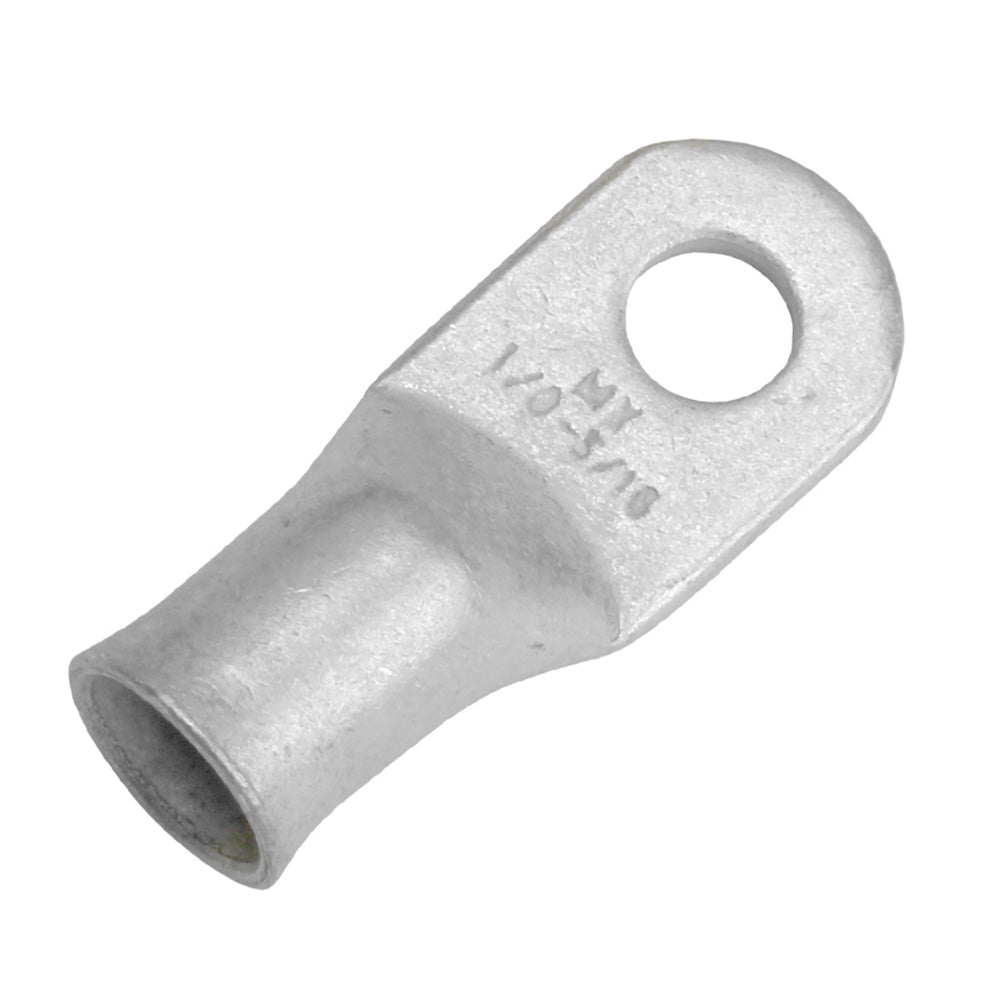

Pacer Tinned Lug 1/0 AWG - 5/16" Stud Size - 10 Pack
Pacer Tinned Lug 1/0 AWG - 5/16" Stud Size - 10 Pack is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Ensure robust and reliable electrical connections on your marine vessel with our Tinned Lug 1/0 AWG - 5/16" Stud Size. Specifically engineered for marine and boating applications, these closed-end lugs provide exceptional durability and longevity, delivering waterproof connections essential for harsh marine environments.
Why Choose Our Tinned Closed-End Lugs?
Creating a strong connection is vital for every electrical system on a boat. Our closed-end lugs not only offer durability but also ensure longevity by preventing corrosion and water ingress. Tin-plated with no exposed seams, these lugs are ideal for marine applications where waterproof connections are paramount. When paired with epoxy-lined heat shrink, the closed-end lug fully envelops the conductor, leaving no part exposed to the elements. Installation is simple: strip your wire to the appropriate length, slide the lug over the exposed wire ensuring the insulation meets the lug's edge, crimp with the correct tool, and add epoxy-lined heat shrink for maximum durability.
Features
- Tin Plated for corrosion resistance
- No exposed seams, ensuring a smooth finish
- Rated for 600V, suitable for high-power applications
- Made from seamless tubes of 99.9% copper for superior conductivity
- Designed specifically for stranded copper wires
- Larger pad area provides better electrical contact
- Cable size and stud hole stamped on pad for easy identification
- Can be crimped or soldered for versatile installation
- Highly controlled flare allows for easy cable insertion
- Tight barrel to pad transition offers longer usable barrel length
Compliance and Standards
- E.T.P. (Electrolytic Tough Pitch) CDA-110 compliant
- ASTM B-152 certified copper with 100% conductivity
- UL & CSA Approved for safety and reliability
- RoHS Compliant, ensuring environmental safety
- Exceeds SAE Conductivity Standards J163 & J1811
Product Specifications
Attribute | Details |
---|---|
Wire Gauge | 1/0 AWG |
Stud Size | 5/16” |
Length | 1.844” |
Width | 0.734” |
Clearance | 0.406” |
Package Size | 10 Lugs |
Heat Shrink | No |
Type | Closed-End Lugs |
Box Dimensions | 1"H x 5"W x 9"L |
Weight | 0.45 lbs |
UPC | 840248209700 |
Available Sizes
Our closed-end lugs are available in wire sizes ranging from 8 AWG to 4/0 AWG and stud sizes including #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct lug size is crucial for optimal performance and safety. If you're unsure which size you need, our marine electrical experts are here to help.
Installation Instructions
- Strip your wire or cable to the appropriate length.
- Slide the closed-end lug over the stripped wire, ensuring the insulation meets the lug's edge.
- Crimp the lug using the correct crimping tool for a secure connection.
- Optionally, apply epoxy-lined heat shrink to the connection for added protection and durability.
For more detailed information, refer to our Brochure (PDF).
