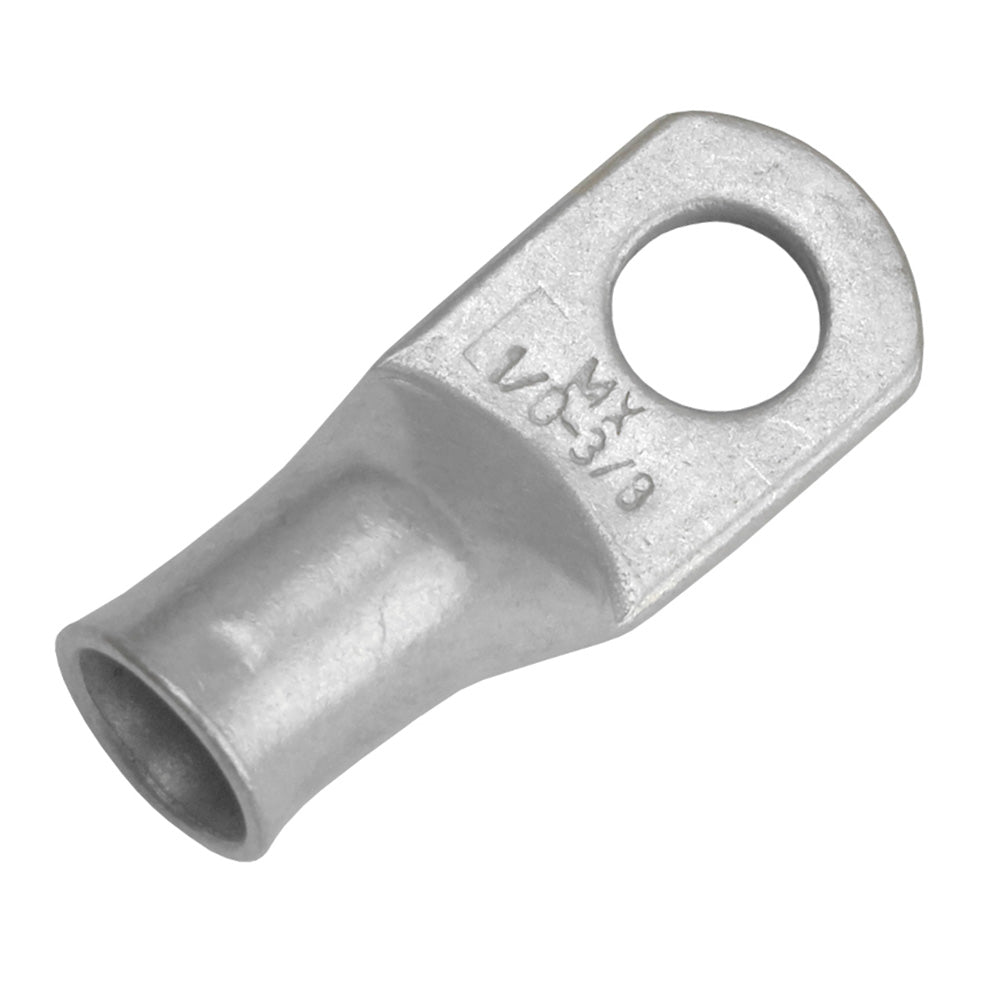

Pacer Tinned Lug 1/0 AWG - 3/8" Stud Size - 10 Pack
Pacer Tinned Lug 1/0 AWG - 3/8" Stud Size - 10 Pack is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Ensure your marine electrical connections are robust and reliable with our Tinned Lug 1/0 AWG - 3/8" Stud Size - 10 Pack. Engineered specifically for marine and boating applications, these closed-end lugs provide enduring performance in harsh environments.
Why Choose Tinned Closed-End Lugs for Your Marine Applications?
Creating a strong and waterproof connection is crucial for the longevity and safety of your marine electrical systems. Our closed-end lugs offer superior durability by being tin-plated with no exposed seams, making them ideal for marine environments where exposure to water and the elements is a constant challenge.
When combined with epoxy heat shrink, these lugs fully envelop the conductor, ensuring that no part of the connection is left vulnerable to moisture or corrosion. Installation is straightforward: simply strip your wire or cable to the appropriate length, slide the lug over the exposed wire with the insulation against the edge, and crimp using the correct tool. For added protection, apply epoxy-lined heat shrink to secure the connection further.
Product Features
- Tin Plated: Offers excellent corrosion resistance, ideal for marine environments.
- No Exposed Seams: Minimizes potential entry points for moisture.
- Rated for 600V: Suitable for a wide range of electrical applications.
- High Conductivity: Made from seamless tubes of 99.9% copper.
- Designed for Stranded Wires: Ensures a secure and reliable connection.
- Larger Pad Area: Provides better contact and improved electrical flow.
- Stamped Specifications: Cable size and stud hole size are clearly marked on the pad.
- Versatile Installation: Can be crimped or soldered based on your requirements.
- Controlled Flare: Allows for easy cable insertion without damage.
- Tight Barrel to Pad Transition: Extends the usable length of the barrel for enhanced performance.
Compliance and Certifications
- E.T.P. (Electrolytic Tough Pitch) CDA-110: Ensures high purity and conductivity.
- ASTM-B-152 Copper: Rated at 100% conductivity for optimal performance.
- UL & CSA Approved: Meets rigorous safety and quality standards.
- RoHS Compliant: Environmentally friendly with restricted hazardous substances.
- Exceeds SAE Conductivity Standards J163 & J1811: Superior electrical performance.
Product Specifications
Attribute | Details |
---|---|
Wire Gauge | 1/0 AWG |
Stud Size | 3/8” |
Length | 1.844” |
Width | 0.734” |
Clearance | 0.406” |
Package Size | 10 |
Heat Shrink | No |
Type | Lugs |
Box Dimensions | 1"H x 5"W x 9"L |
Weight | 0.4 lbs |
UPC | 840248209694 |
