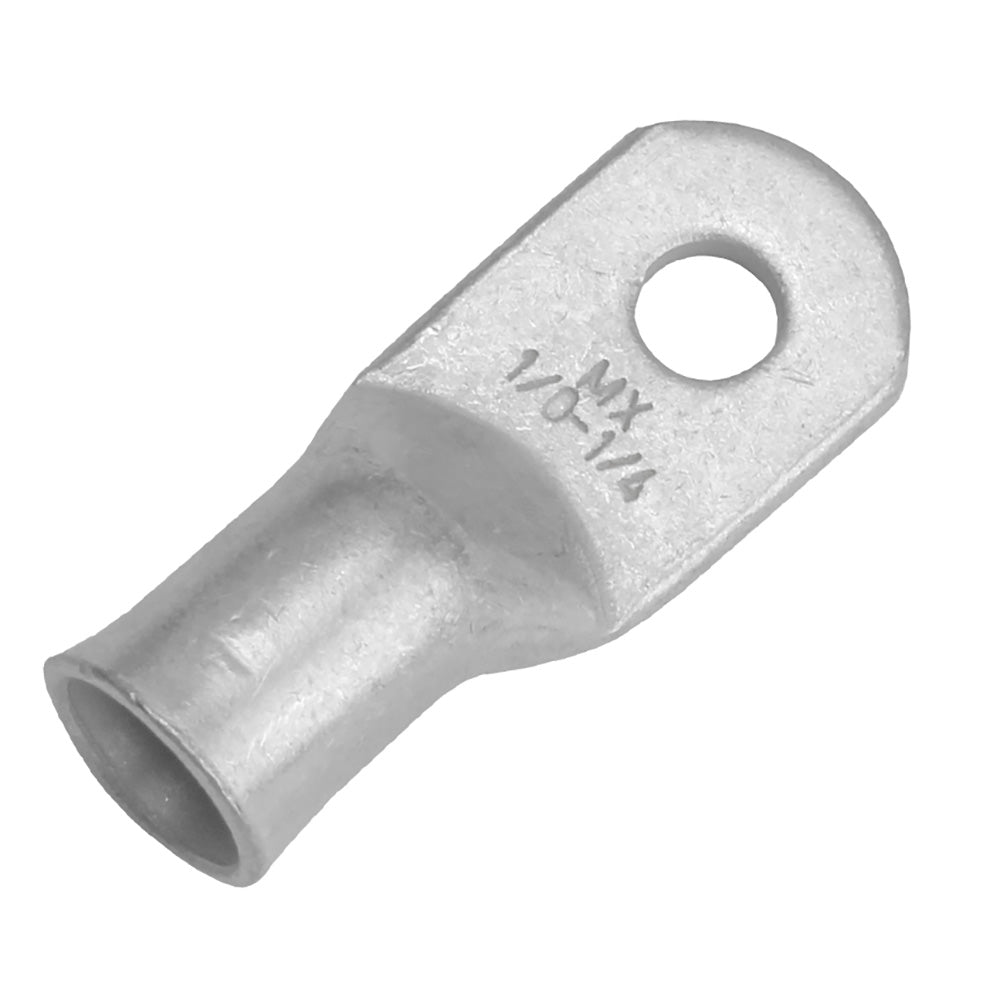

Pacer Tinned Lug 1/0 AWG - 1/4" Stud Size - 10 Pack

Ensure a reliable and long-lasting connection in your marine electrical systems with Pacer’s Tinned Lug 1/0 AWG. Specifically designed for marine and boating applications, these closed-end lugs are tin-plated and seamlessly constructed to provide durability and protection against harsh marine environments. When paired with epoxy heat shrink, they create waterproof connections by fully enveloping the conductor, safeguarding your electrical connections from the elements.

Features

• Tin plated for enhanced corrosion resistance
• No exposed seams, ensuring waterproof connections
• Rated for up to 600V, suitable for high-demand applications
• Constructed from seamless tubes of 99.9% copper for superior conductivity
• Optimized for stranded copper wires, ensuring a secure fit
• Increased pad area for improved electrical contact
• Clear labeling with cable size and stud hole on pad
• Flexible installation options: can be crimped or soldered
• Controlled flare design for easy cable insertion
• Tight transition from barrel to pad for extended barrel length

Compliance

• E.T.P. (Electrolytic Tough Pitch) CDA-110 certified
• ASTM-B-152 copper rated at 100% conductivity
• UL & CSA Approved, ensuring safety and reliability
• RoHS Compliant, environmentally friendly manufacturing
• Exceeds SAE Conductivity Standards J163 & J1811

Specifications

Wire AWG	1/0
Stud Size	1/4”
Length	1.844”
Width	0.734”
Clearance	0.406”
Package Size	10
Heat Shrink	No
Type	Lugs
Box Dimensions	1"H x 5"W x 9"L
Weight	0.3 lbs
UPC	840248209717

Download Brochure (PDF)
