Pacer Seamless Butt Splice - 4 AWG - Non-Insulated - 2 Pack

Ensure reliable and long-lasting electrical connections on your marine vessel with our Seamless Butt Splice - 4 AWG - Non-Insulated - 2 Pack. Designed specifically for the demanding conditions of boating, these butt splices provide a secure and corrosion-resistant solution for all your electrical needs.

Product Overview

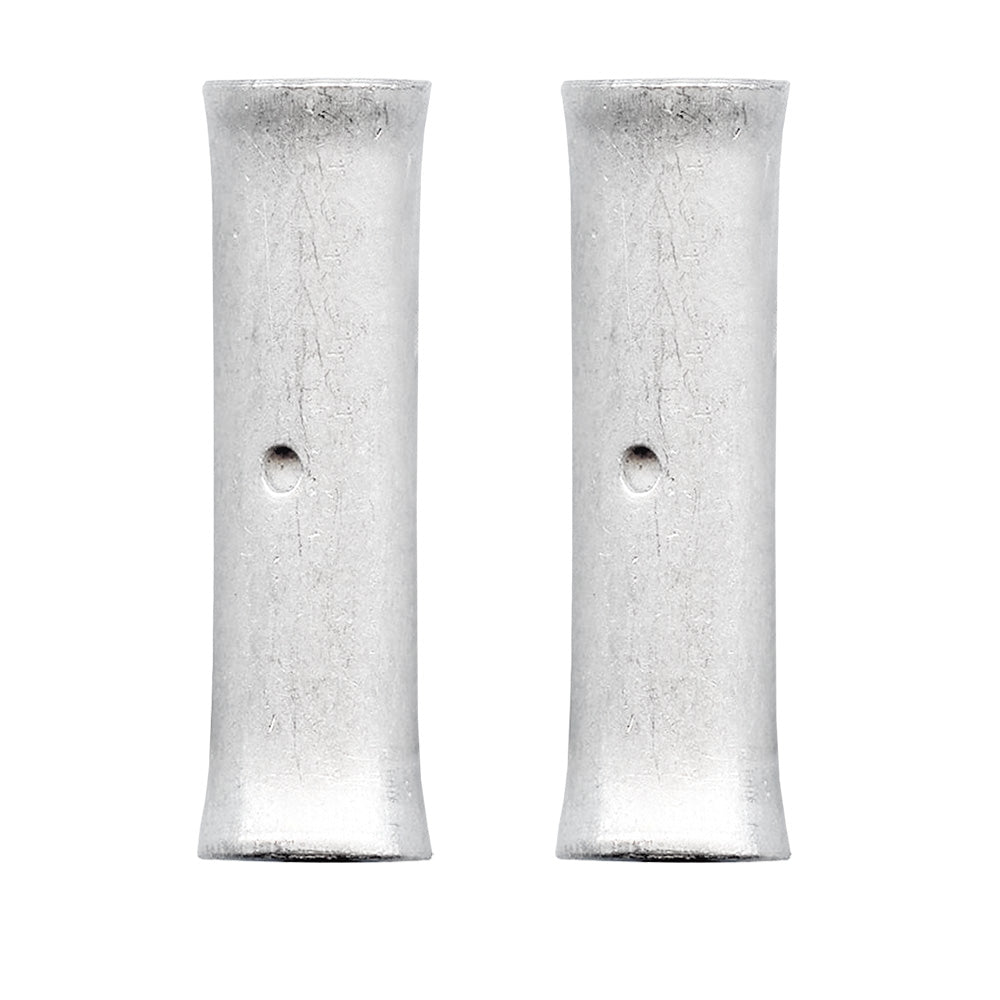

Our seamless tinned butt splices are the perfect choice for repairing or establishing robust electrical connections in marine environments. The tinned finish offers excellent resistance to corrosion, making them ideal for use in boats and other watercraft. Easy to install and built for durability, these butt splices ensure your electrical connections remain secure even in the harshest conditions.

How to Use

1. Prepare Your Wires: Cut and strip your wires to the appropriate length, ensuring clean and precise ends.
2. Insert Wires: Inside the butt splice, you'll find an indentation. Insert each wire into the splice, making sure the conductor butts up against the indentation and the insulation touches the splice to reduce the risk of a weaker connection.
3. Crimp the Connection: Use the proper crimping tool to secure the splice, applying the correct amount of pressure to guarantee a solid connection.
4. Repeat on the Other Side: Perform the same process for the second wire.
5. Perform a Tug Test: Gently tug on both wires two or three times to ensure the connection is secure and the wires do not pull out.

Features

• Tin Plated for Corrosion Resistance
• Seamless Design for Enhanced Durability
• Non-Insulated for Versatile Use
• Designed for Rapid Installation

Technical Specifications

Parameter	Details
Package Size	2 Pack
Wire Gauge	4 AWG
Length	1.155 inches
Inner Diameter	0.277 inches
Outer Diameter	0.457 inches
Heat Shrink	No
Box Dimensions	1" H x 2" W x 4" L
Weight	0.05 lbs
UPC	840248207508

Compliance Certifications

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 Copper Rated at 100% Conductivity
• UL & CSA Approved
• RoHS Compliant

Additional Resources

Download the Brochure (PDF)
