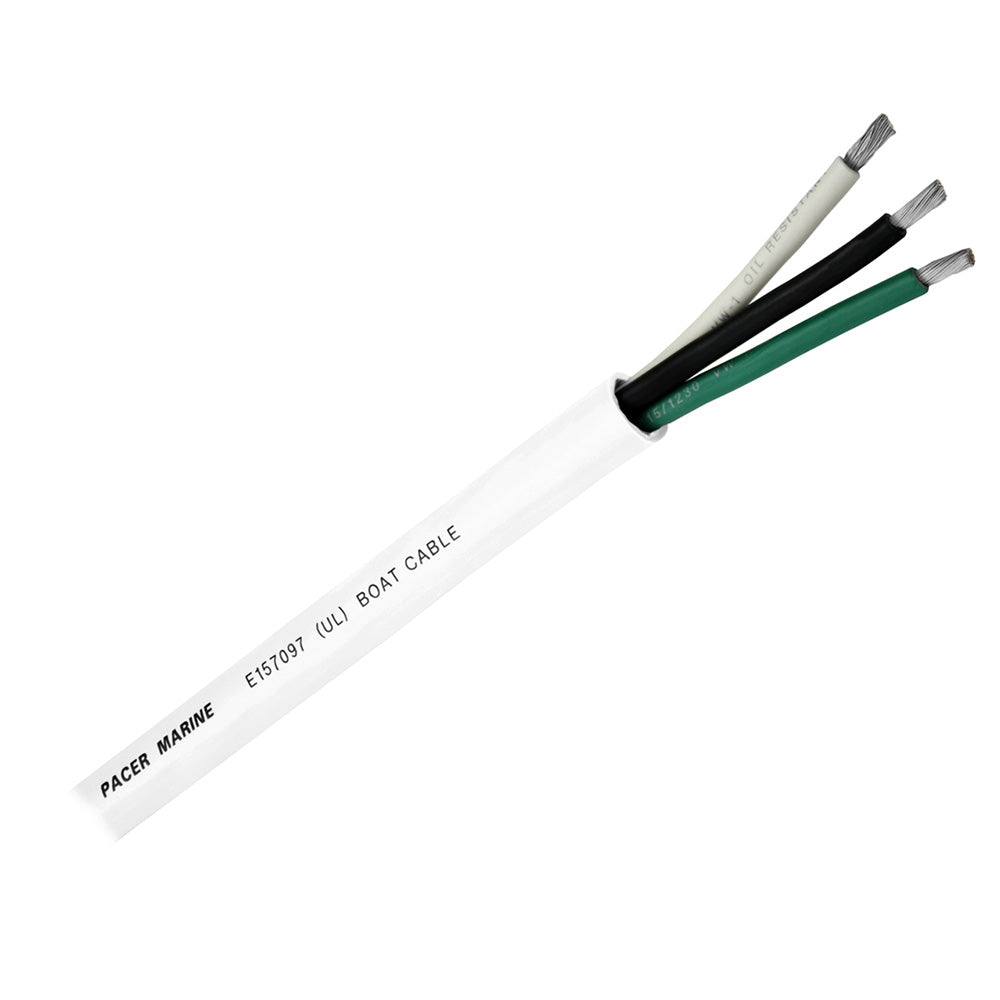

Pacer Round 3 Conductor Cable - 100 - 12/3 AWG - Black, Green White

The Pacer Round 3 Conductor Cable is a versatile and durable solution designed specifically for marine applications. Engineered to thrive in tight spaces and withstand the rigors of marine environments, this 100-foot cable offers exceptional flexibility and reliability for all your boating wiring needs.

Features

• 12 AWG round boat cable for robust performance
• 100 feet of high-quality, flexible cable
• Three conductors: Black, Green, and White for easy color coding
• Ideal for a wide range of marine projects, including AC and DC internal wiring
• Perfect for running through sailing spars, poling platforms, and t-tops
• Designed for installation in small hulls and other confined areas
• Type III Class K finely-stranded tinned copper conductors for superior conductivity
• Highly flexible PVC insulation and jacket for easy installation and durability
• Round shape allows for flexibility in any direction, accommodating frequent flex and vibration
• Easy to install and organize, with the ability to be easily sealed through bulkheads

Specifications

Attribute	Details
Conductor Colors	Black, Green, White
Gauge	12/3 AWG
Length	100 feet
Jacket Color	Grey
Jacket Thickness	0.045 inches for 3 conductors
Nominal Cable O.D.	0.470 inches for 3 conductors
Box Dimensions	7"H x 10"W x 10"L
Weight	15.1 lbs
UPC	840248207249

Technical Characteristics

• Conductor: Annealed Fine Stranded Tinned Copper
• ASTM Compliance: ASTM B172 Class K
• Insulation: Flexible, color-coded PVC rated from -20°C to 105°C
• Temperature Rating: 105°C dry, 75°C wet, 60°C oil
• Voltage Rating: 600 V
• Resistance: Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications

• Internal wiring for boats and recreational vehicles, both AC and DC
• Installation in tight spaces such as boat hulls, sailing spars, poling platforms, and t-tops
• Ideal for environments with frequent flexing and vibration

Compliance and Standards

• UL Standard 1426 (BC-5W2)
• ABYC: E-11.16
• Coast Guard: 33 CFR Part 183
• RoHS Compliant
