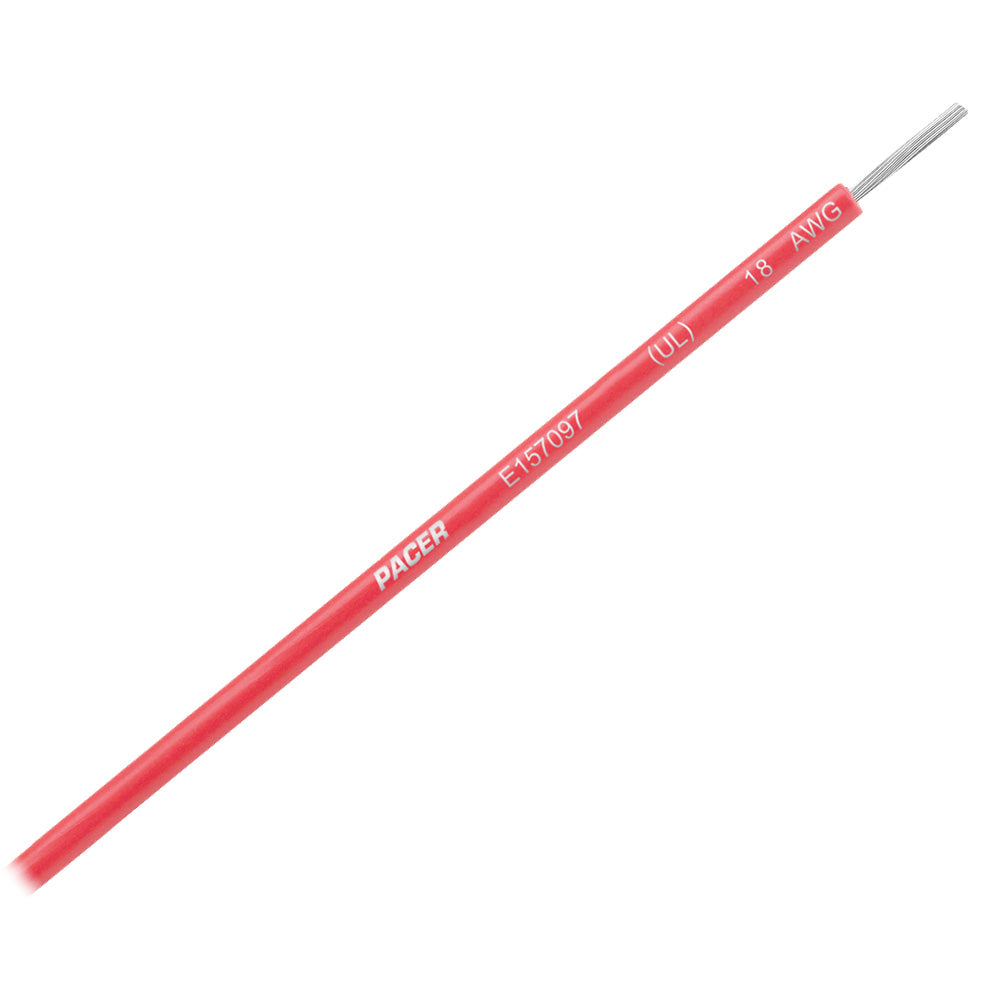

Pacer Red 18 AWG UL Marine Wire - 35'

Pacer's Red 18 AWG UL Marine Wire is specifically crafted to endure the toughest marine environments. Manufactured in Sarasota, FL, USA, this high-performance wire ensures reliability and durability for all your boating and marine electrical applications.

Key Features

• Stranded, tinned copper conductors provide superior conductivity and excellent corrosion resistance, ensuring longevity in marine settings.
• Highly flexible, color-coded PVC insulation allows for easy identification and secure connections, simplifying your wiring projects.

Certifications and Compliance

• Compliant with AWM 1015 and AWM 1230 standards, guaranteeing top-tier quality and performance.
• Certified by CSA: TEW, meeting rigorous industry safety and performance criteria.
• Temperature Rated: Capable of withstanding up to 105°C in dry conditions and 60°C when wet, making it suitable for various marine applications.

Product Specifications

Specification	Details
AWG	18
Length	35 feet
Color	Red
Conductors Stranding	16/0.0100
Insulation Thickness	0.030 inches
Outer Diameter	0.114 inches
Circular Mils	1600
Approx. LB/M	10.3
Box Dimensions	2" H x 4" W x 4" L
Weight	0.5 lbs
UPC	0840248214827

Technical Characteristics

• Conductor Material: Type III annealed, finely stranded tinned copper ASTM B172 Class K for optimal conductivity and corrosion resistance.
• Insulation: Flexible, color-coded PVC insulation rated from -20°C to 105°C, providing protection against harsh marine elements.
• Voltage Rating: 600 V, suitable for a wide range of marine electrical systems.
• Resistance: Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture, ensuring durability and safety in demanding conditions.

Suitable Applications

• Point-to-point wiring for efficient and organized electrical distribution on boats and marine vessels.
• Internal wiring of marine panels and motors, providing reliable connections in critical systems.

Download the Brochure (PDF)
