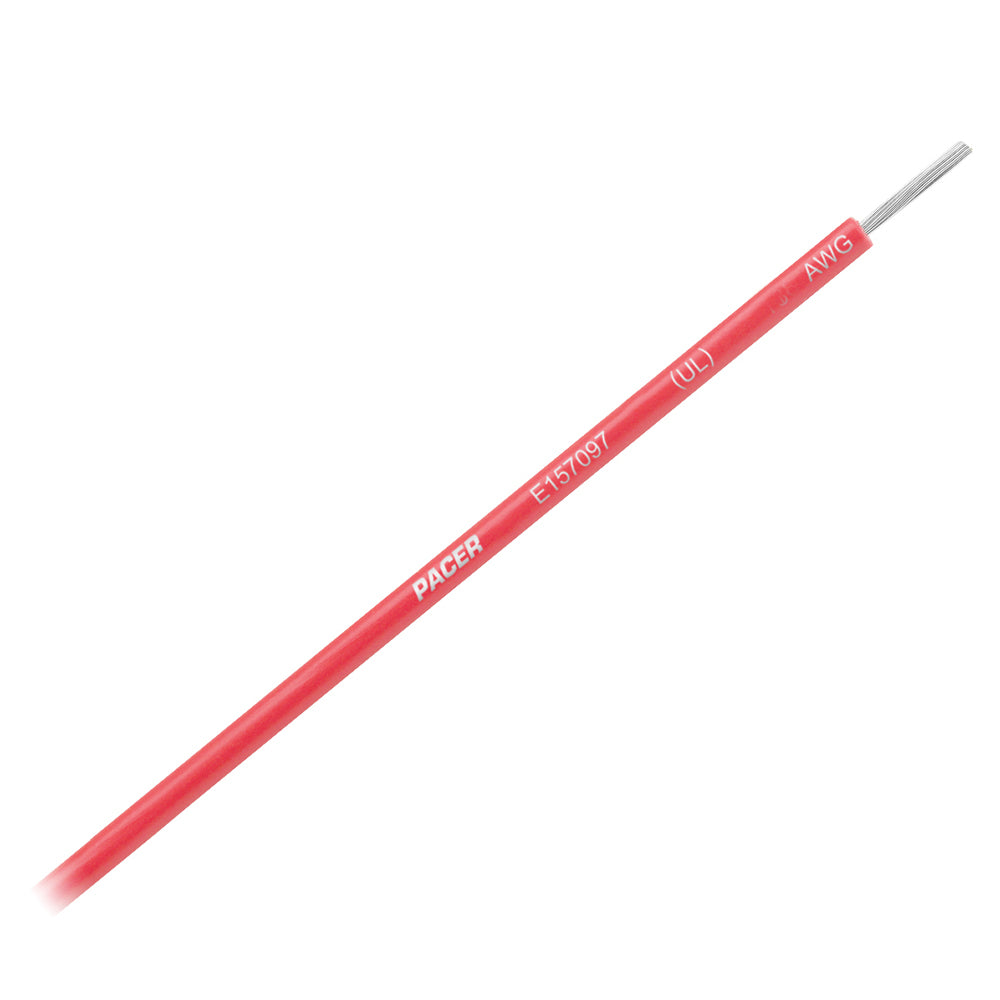

Pacer Red 16 AWG Primary Wire - 25

Pacer's Red 16 AWG Primary Wire is the ideal choice for marine and boating applications, offering exceptional durability and performance in the most demanding environments. Crafted in the USA from high-quality materials, this 25-foot wire ensures reliable connectivity and longevity for all your marine electrical needs.

Exceptional Quality and Construction

Designed to withstand the harshest marine conditions, Pacer's marine wire exceeds industry standards by utilizing Type III class K tinned copper conductors. This construction not only provides excellent flexibility but also enhances corrosion resistance, significantly extending the wire's lifespan.

Advanced Insulation for Maximum Protection

The tinned copper conductors are encased in a robust PVC jacket, offering superior protection against a variety of environmental factors. The insulation is flexible and color-coded, making installation straightforward while ensuring that the wire remains resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.

Compliance with Industry Standards

Pacer's marine wire meets and surpasses the stringent requirements set by leading industry standards, ensuring safety and reliability for your marine projects.

Standard	Compliance
UL Standard	1426 BC-5W2
U.S.C.G	33 CFR part 183
ABYC	E-11.14

Key Features

• Engineered for durability, flexibility, and longevity in extreme marine environments
• Highly flexible design allows knots without compromising wire integrity
• Proprietary PVC insulation provides top-tier protection
• Easy to install, making it the preferred choice among boating professionals

Technical Specifications

Specification	Details
Conductor	Type III annealed finely stranded tinned copper ASTM B172 Class K
Insulation	Flexible, color-coded PVC, operating temperature range -20°C to 105°C
Voltage Rating	600 V
Resistance	Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

Product Specifications

Attribute	Detail
Color	Red
Gauge	16 AWG
Length	25 feet
Box Dimensions	4" H x 4" W x 4" L
Weight	0.45 lbs
UPC	840248201674

*Sold individually
