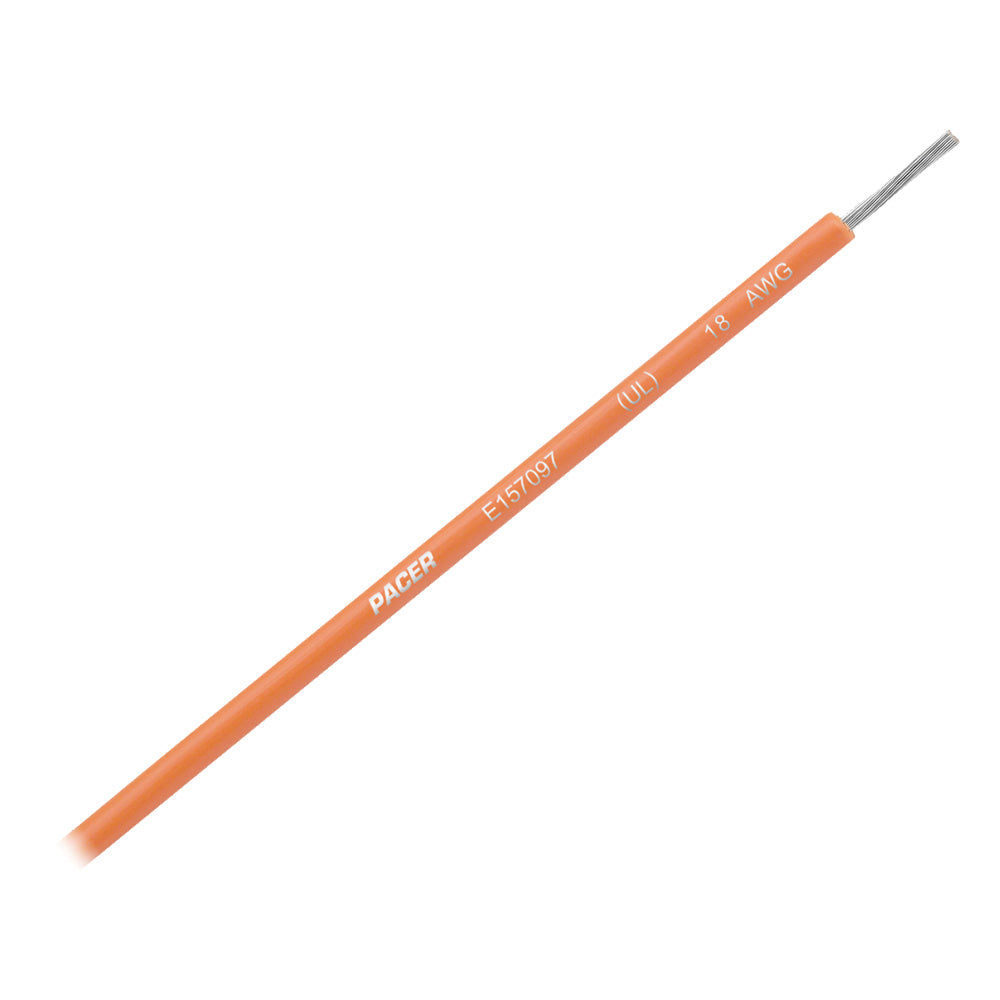

Pacer Orange 18 AWG UL Marine Wire - 35'

Pacer’s Orange 18 AWG UL Marine Wire is expertly crafted to withstand the most demanding marine environments, providing reliable performance and exceptional durability for all your boating and marine electrical needs.

Superior Construction for Harsh Marine Conditions

Manufactured in-house in Sarasota, FL, USA, this 18 AWG marine wire is built to meet and exceed stringent industry standards. Constructed with Type III Class K tinned copper, Pacer marine wire offers outstanding corrosion resistance and flexibility, ensuring longevity even in the harshest marine settings.

Durable and Flexible Insulation

The tinned copper conductors are insulated with a robust, proprietary PVC jacket. This high-quality insulation makes the wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture, providing added protection and flexibility for complex marine electrical installations.

Key Features

• Stranded, tinned copper conductors for enhanced conductivity and flexibility
• Highly flexible, color-coded PVC insulation for easy identification and installation

Compliance and Standards

Pacer’s marine wire adheres to and surpasses the requirements set by major industry standards, ensuring safety and reliability:

Standard	Compliance
UL	Yes
ABYC	Yes
NMMA	Yes

Technical Specifications

Specification	Details
AWG	18
Length	35 ft.
Color	Orange
Conductor Stranding	16/0.0100
Insulation Thickness	0.030"
Overall Diameter	0.114"
Circular Mils	1600
Approx. LB/M	10.3
Temperature Rating	105 °C Dry, 60 °C Wet
Voltage Rating	600-V

Resistant to Multiple Elements

This marine wire is designed to resist a variety of challenging elements, including:

• Acid
• Alkali
• Abrasion
• Flame
• Gasoline
• Oil
• Moisture

Ideal Applications

Pacer’s Orange 18 AWG UL Marine Wire is perfect for a wide range of marine electrical applications, such as:

• Point-to-point wiring
• Internal wiring of panels and motors

Product Specifications

Specification	Details
Color	Orange
Gauge	18 AWG
Length	35'
Box Dimensions	2"H x 4"W x 4"L
Weight	0.5 lbs
UPC	0840248214940

Additional Resources

For more detailed information, download our Brochure (PDF).
