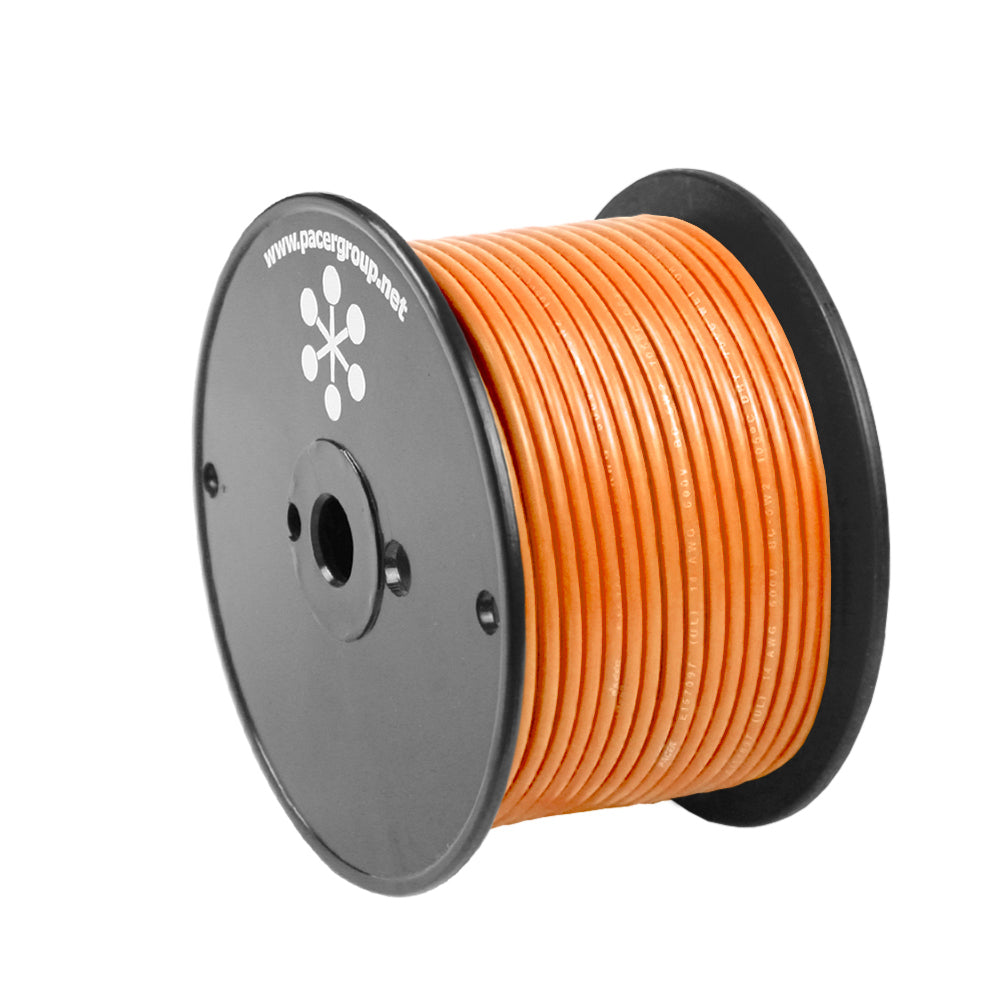

Pacer Orange 14 AWG Primary Wire - 100

The Orange 14 AWG Primary Wire is meticulously crafted for marine applications, ensuring top-tier performance and reliability in the most challenging boating environments. Manufactured in the USA, this 100-foot marine-grade wire offers exceptional conductivity and longevity, making it an essential component for your vessel's electrical systems.

Key Features

• Engineered for superior durability, flexibility, and longevity in harsh marine conditions
• Highly flexible design allows knot tying without compromising wire integrity
• Proprietary PVC insulation provides maximum protection against environmental factors
• Ease of installation and a robust design make it the preferred choice among marine professionals

Compliance and Standards

• UL Standard - 1426 BC-5W2
• U.S. Coast Guard - 33 CFR Part 183
• ABYC - E-11.14
• NMMA Certified

Technical Specifications

Attribute	Details
Conductor	Type III annealed finely stranded tinned copper ASTM B172 Class K
Insulation	Flexible, color-coded PVC rated for -20°C to 105°C
Voltage Rating	600 V
Resistance To	Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

Product Specifications

Specification	Details
Color	Orange
Gauge	14 AWG
Length	100 feet
Box Dimensions	3" H x 3" W x 3" L
Weight	2.2 lbs
UPC	840248202114

Additional Resources

Download Brochure (PDF)

Product Video

Note: Sold individually
