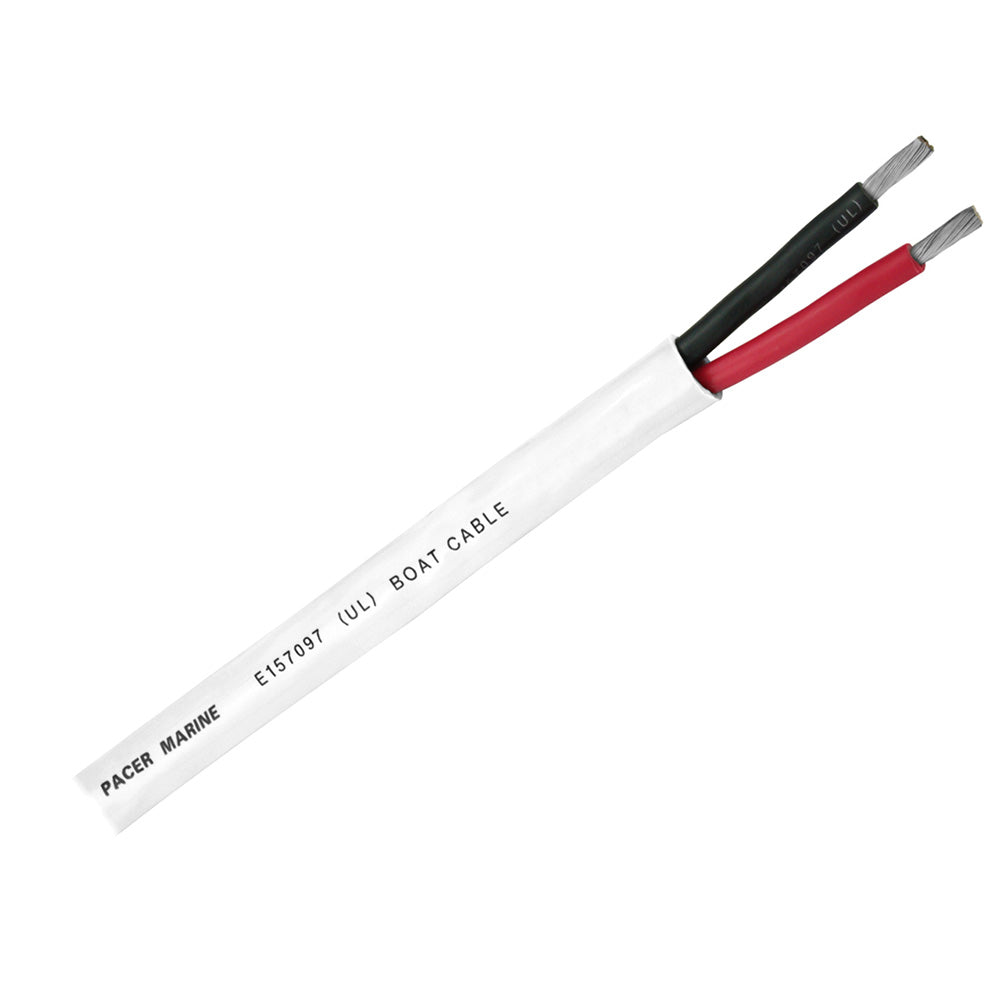

Pacer Duplex 2 Conductor Cable - 250 - 16/2 AWG - Red, Black

Enhance your marine electrical system with our high-performance Duplex 2 Conductor Cable. Engineered specifically for the demanding conditions of marine environments, this 250-foot cable ensures reliable power distribution with exceptional flexibility and durability. Whether you're wiring tight spaces on a compact vessel or ensuring long-lasting connections, our Duplex 2 Conductor Cable is the ideal choice for boating professionals and enthusiasts alike.

Key Features

• 16 AWG duplex boat cable for optimal power handling
• Generous 250 feet length to accommodate extensive wiring needs
• Two stranded, tinned copper conductors for superior conductivity and corrosion resistance
• Highly flexible design allows easy installation and maneuvering in confined spaces
• Proprietary insulation offers maximum protection against marine elements
• Built to withstand harsh conditions, ensuring longevity and reliability
• Approved by boating professionals for ease of installation and dependable performance

Technical Specifications

Attribute	Details
Conductor Colors	Black & Red
Gauge	16/2 AWG
Length	250 feet
Conductor Stranding	26/.0100
Jacket Color	White
Jacket Thickness	0.035 inches for 2 conductors
Nominal Cable O.D.	0.200" x 0.330"
Box Dimensions	9"H x 11"W x 11"L
Weight	16.8 lbs

Material and Build Quality

• Conductor: Annealed Fine Stranded Tinned Copper ASTM B172 Class K for enhanced flexibility and corrosion resistance
• Insulation: Flexible, color-coded PVC rated for temperatures from -20 °C to 105 °C
• Temperature Rating: 105 °C dry, 75 °C wet, 60 °C oil
• Voltage Rating: 600 V
• Resistance: Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications

Our Duplex 2 Conductor Cable is versatile and suitable for a wide range of marine applications, including:

• DC circuits for powering marine electronics and lighting systems
• Low voltage AC applications such as navigation systems and communication devices
• Wiring tight and confined spaces on various types of boats and vessels

Compliance and Certifications

• UL Standard 1426 certified
• RoHS Compliant ensuring environmentally friendly materials
• ABYC Certification: E-11.14 for marine electrical systems
• Coast Guard compliant as per 33 CFR part 183
• Overall UL compliance for safety and performance

Why Choose Our Duplex Boat Cable?

Designed with the marine professional in mind, our Duplex 2 Conductor Cable offers unmatched flexibility without sacrificing durability. The tinned copper conductors provide excellent conductivity and resistance to corrosion, while the robust insulation protects against the harsh marine environment. Whether you're upgrading your boat's electrical system or performing routine maintenance, this cable ensures reliable performance and longevity.

Additional Resources

For more detailed information, please refer to our documentation:

• Quick Guide (PDF)
• Brochure (PDF)
