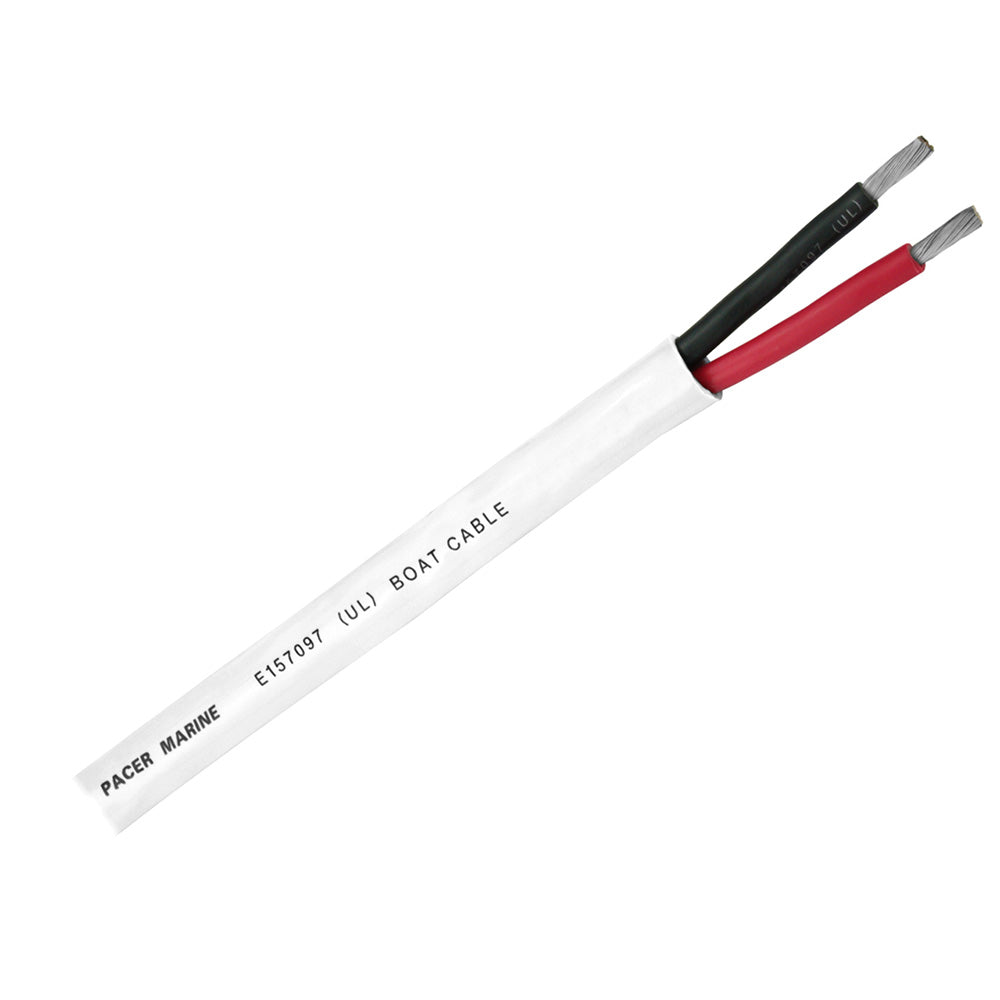

Pacer Duplex 2 Conductor Cable - 100 - 12/2 AWG - Red, Black

Enhance your marine electrical systems with our premium Duplex 2 Conductor Cable. Crafted specifically for the demanding marine environment, this 100-foot, 12/2 AWG cable ensures reliable performance and durability for all your boating needs. Whether you're powering lights, instruments, or other essential equipment, our Duplex Boat Cable delivers the flexibility and protection required for seamless installation and long-term use.

Superior Quality Construction

Manufactured in-house in Sarasota, FL, USA, Pacer guarantees the highest quality standards for our 12 AWG Duplex Boat Cables. We start with finely stranded, Type III tinned copper conductors that offer maximum flexibility and excellent corrosion resistance, ideal for marine applications.

Advanced Protection Features

The PVC jacket not only provides flexibility but also prevents moisture accumulation. During the extrusion process, all voids between the wires are completely filled, eliminating any space for air or moisture to build up. Additionally, a talcum powder coating is applied to the interior wires, making the outer jacket easy to remove without damaging the conductors. These features make our duplex cable perfect for harsh marine environments.

Key Features

• 12 AWG duplex boat cable
• 100 feet of high-quality cable
• 2 conductors for versatile applications
• Stranded, tinned copper conductors for flexibility and corrosion resistance
• Annealed finely stranded tinned copper ASTM B172 Class K
• Durable and flexible for longevity in marine conditions
• Can be tied into knots without compromising integrity
• Proprietary insulation offers superior protection
• Easy to install, favored by boating professionals

Technical Specifications

Specification	Details
Conductor Colors	Black & Red
Conductor Stranding	65/0.0100
Jacket Color	White
Jacket Thickness	2 conductors @ 0.035"
Nominal Cable O.D.	2 conductors @ 0.245" x 0.410"
Color	Black/Red
Gauge	12/2 AWG
Length	100'
Box Dimensions	6"H x 10"W x 10"L
Weight	12.2 lbs
UPC	840248215886

Performance Characteristics

• Conductor: Annealed Fine Stranded Tinned Copper
• Insulation: Flexible, color-coded PVC rated for -20°C to 105°C
• Temperature Rating: 105°C dry, 75°C wet, 60°C oil
• Voltage Rating: 600 V
• Resistance To: Acid, alkali, abrasion, flame, gasoline, oil, and moisture

Ideal Applications

• DC circuits on boats
• Low voltage AC applications in marine settings
• Powering marine electronics and accessories
• General wiring for boats and marine vessels

Compliance and Certifications

• UL Standard 1426
• RoHS Compliant
• ABYC: E-11.14
• Coast Guard: 33 CFR part 183
• UL compliant
