Pacer DT Deutsch Receptacle Repair Kit - 14-18 AWG (2 Position)

The DT Deutsch Receptacle Repair Kit is an essential solution for marine and boating applications, providing robust and reliable electrical connections in demanding environments. Engineered to accommodate a range of wire gauges, this kit ensures seamless integration and longevity for your vessel's electrical systems.

Product Overview

The DT series connectors are specifically designed for wire gauges ranging from 14 AWG to 18 AWG, offering versatility and high performance for various marine electrical setups. With larger 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) suitable for 14 AWG wire and the capability to handle multiple sizes within a single shell, this repair kit is perfect for ensuring secure and efficient connections on your boat.

Features

• Comprehensive kit includes all necessary components for connector assembly
• Provides one to two extra terminals for expanded wiring needs
• Includes cavity plugs to effectively seal open circuits and prevent water ingress

Applications

• Ideal for wire-to-wire connections in marine electrical systems
• Enclosed connectors deliver field-proven reliability and rugged quality, essential for the harsh marine environment
• Suitable for a wide range of boating applications, including power distribution and control systems

Compliance and Certifications

• Ingress Protection: IP68 and IP6K9K, ensuring maximum protection against water and dust
• Compliant with EU RoHS/ELV standards for environmentally safe materials
• Recognized under Standard UL-94 for flammability performance

Key Characteristics

• Wedge locks guarantee precise contact alignment and secure retention
• Redundant silicone seals provide enhanced protection against moisture and corrosion
• Contacts are hand-insertable and removable, allowing for easy maintenance and customization

Technical Specifications

Specification	Details
Number of Cavities	2
Housing	Rectangular receptacle, plastic reinforced with glass fiber
Contact Size	16 (13 amp)
Wire Size	14 AWG
Holds Pin/Socket	Pins
Operating Temperature	-55°C to 125°C

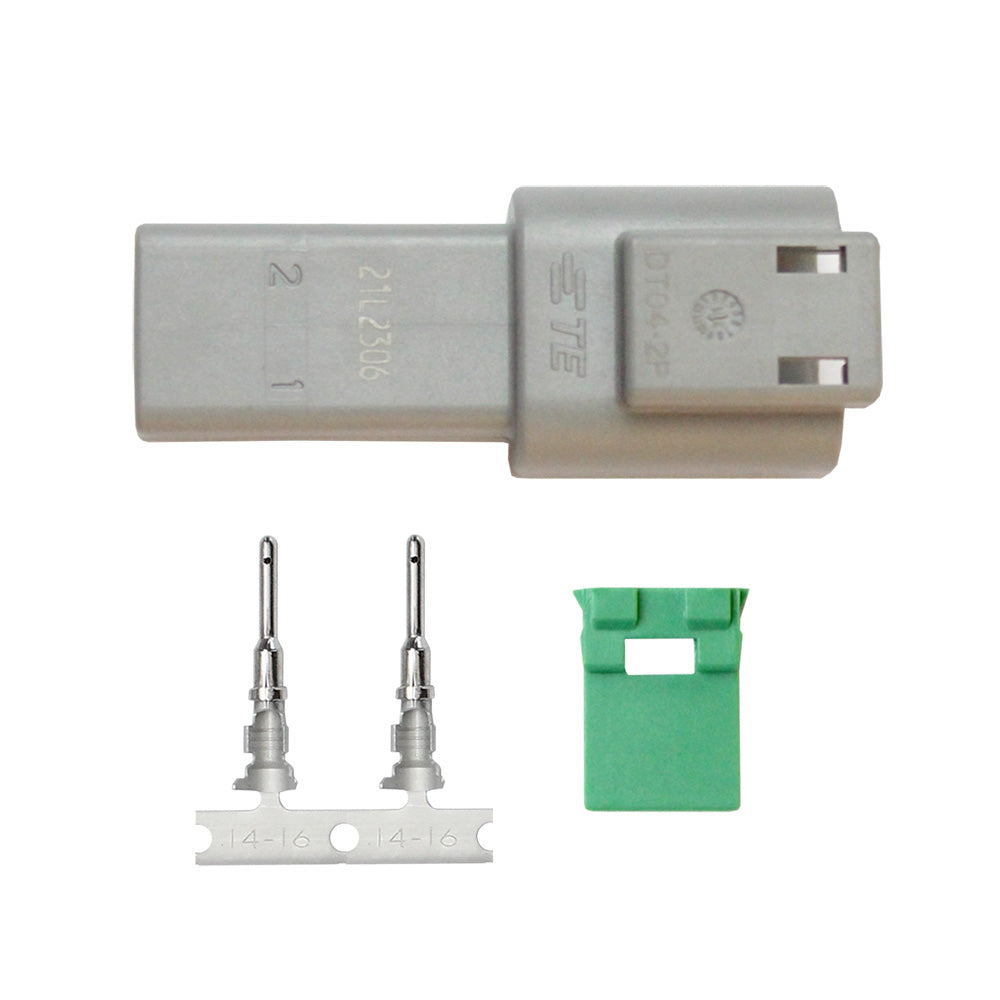

Package Contents

• (1) 2-position receptacle
• (1) 2-position wedge lock
• (3) Pins

Download the Quick Guide (PDF) for detailed assembly instructions and usage guidelines.
