Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (6 Position)

The DT Deutsch Plug Repair Kit - 14-18 AWG (6 Position) is the perfect solution for marine and boating applications, ensuring reliable and secure electrical connections even in harsh maritime environments. Designed to handle the demanding conditions of marine use, this repair kit provides durability and ease of installation for all your boat’s wiring needs.

Key Features

• Packs include all necessary components to assemble a secure connector
• Includes one to two extra terminals for flexible wiring options
• Cavity plugs available to seal and protect open circuits from water and moisture

Marine Applications

• Ideal for wire-to-wire connections in boats and marine vessels
• Enclosed connectors offer field-proven reliability and rugged quality, perfect for marine environments
• Suitable for various onboard electrical systems, including navigation, lighting, and engine controls

Compliance and Certifications

• Ingress Protection (IP) Level: IP68 and IP6K9K for maximum waterproof and dustproof protection
• Compliance with EU RoHS/ELV standards ensures environmentally safe materials
• Standard UL-94 recognized for high flammability resistance

Product Characteristics

• Wedge locks ensure precise contact alignment and secure retention in marine connections
• Redundant silicone seals provide additional protection against water ingress
• Hand-insertable and removable contacts allow for easy maintenance and repairs

Technical Specifications

Specification	Details
Number of Cavities	6
Housing	Rectangular receptacle, plastic reinforced with glass fiber for enhanced durability
Contact Size	16 (13 amp)
Wire Size	14 AWG
Holds Pin/Socket	Sockets
Operating Temperature	-55°C to 125°C

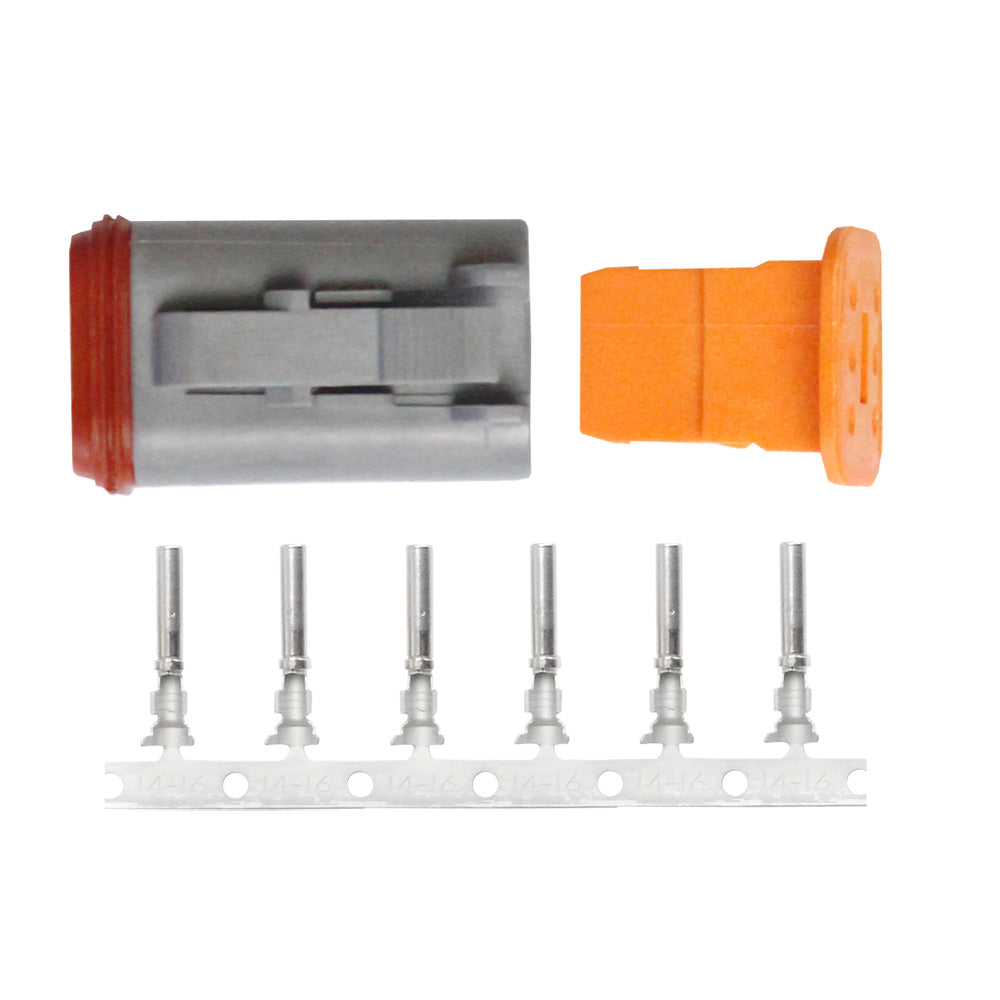

Included in the Kit

• (1) 6-position plug
• (1) 6-position wedge lock
• (8) Sockets
• (3) Cavity plugs

Download the Quick Guide (PDF) for easy installation instructions and detailed product information.
