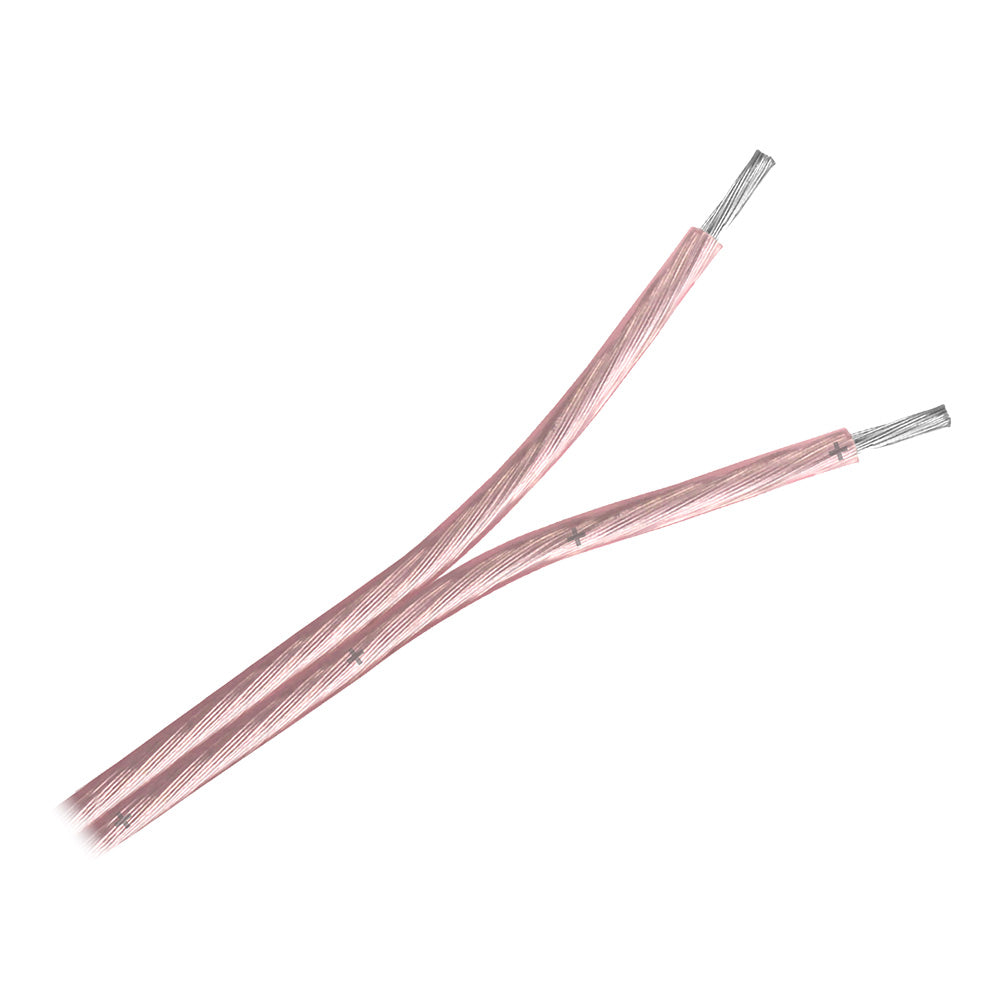

Pacer Clear 16/2 AWG Two Conductor Speaker Wire - 100'

The Clear 16/2 AWG Two Conductor Speaker Wire is specifically designed to meet the demanding needs of marine and boating audio systems. With 100 feet of high-quality, flexible speaker wire, you can effortlessly set up robust and reliable sound systems on your vessel, ensuring crystal-clear audio performance whether you're cruising the seas or anchored at bay.

Product Features

• Highly flexible clear PVC insulation for easy installation in tight spaces
• Finely stranded tinned copper conductors for enhanced durability and corrosion resistance
• Positive (+) polarity markings for easy identification and correct installation
• Lightweight and easy to handle, minimizing installation time

Technical Specifications

Attribute	Details
Conductor	Fully annealed finely stranded tinned copper per ASTM B-174
Insulation	Clear PVC
Gauge	16/2 AWG
Length	100 ft.
Conductor Stranding	26/0.0100
Nom. O.D.	0.112 x 0.210 inches
Approx LB/M	25
Temperature Range	-20 °C to 105 °C
Voltage Rating	90V
Color	Clear
Box Dimensions	3"H x 7"W x 7"L
Weight	2.75 lbs

Compliance

• RoHS Compliant Directive 2002/95/EC

Applications

• Marine digital audio systems
• Boat stereo speakers
• Marine home theaters
• Other boating and marine audio installations

Installation Guide

1. Choose the Right Gauge: Determine the required wire gauge based on the length of the run and the power requirements of your audio system. For longer runs or higher power applications, a thicker gauge wire may be necessary.
2. Measure and Plan: Measure the distance where the wire will be installed and add a few extra feet to allow for flexibility and ease of installation.
3. Connect Properly: Use the positive (+) polarity markings to ensure correct connections between your audio components, preventing phase issues and ensuring optimal sound quality.
4. Secure the Wire: Use appropriate marine-grade cable management solutions to secure the speaker wire, protecting it from moisture and physical damage.
5. Test the System: After installation, test your audio system to ensure all connections are secure and the sound quality meets your expectations.

Note: *Not Rated for In-Wall Use*
