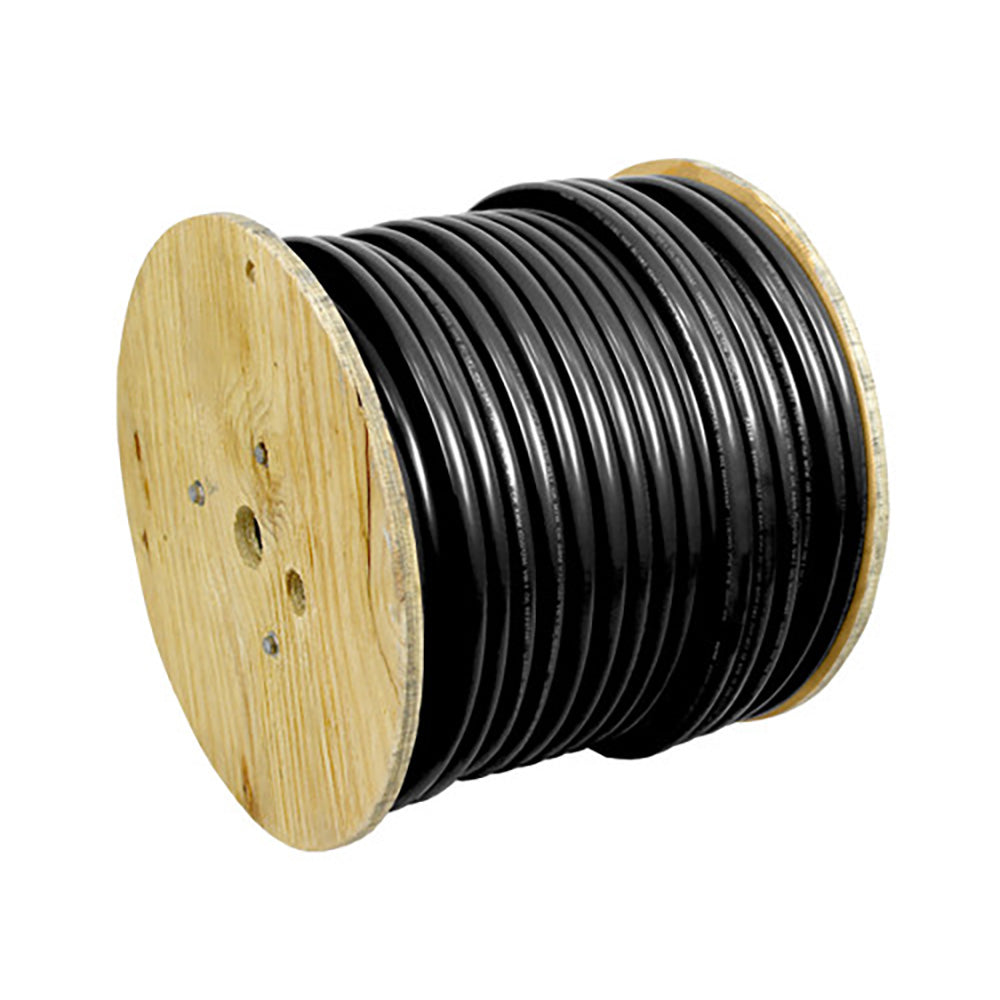

Pacer Black 1/0 AWG Battery Cable - 250'

Pacer's Black 1/0 AWG Marine Battery Cable is engineered for optimal performance in demanding marine environments. Manufactured in-house in Sarasota, FL, USA, this UL-approved cable combines superior flexibility with exceptional durability, making it the ideal choice for marine installations where space is limited and routing tight corners is essential.

Exceptional Quality and Durability

Constructed from Type III Class K tinned copper, Pacer's marine battery cable is highly resistant to corrosion, ensuring a longer lifespan even in harsh marine conditions. The proprietary PVC jacket not only provides robust insulation but also maintains flexibility, allowing for easy installation in confined spaces with sharp bends and turns.

Features

• Easy to strip, bend, and route for hassle-free installation
• Excellent flexibility combined with the durable properties of PVC insulation

Applications

• Connecting batteries or generators to starters, grounds, switches, windlasses, inverters, and other high-amperage marine equipment
• Ideal for use in boats, yachts, and other watercraft requiring reliable power distribution

Technical Characteristics

Conductor	Annealed stranded tinned copper ASTM B172 Class K
Insulation	-20 °C to 105 °C Flexible, Color-Coded PVC
Temperature Rating	105 °C Dry, 75 °C Wet, 60 °C Oil
Voltage Rating	600-V
Resistance	Resistant to Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

Specifications

AWG	1/0
Color	Black
Length	250 ft.
Conductor Stranding	19x 56/0.0100
Insulation Thickness	0.080
Overall Diameter	0.600
Circular Mils	106400
Cross-Sectional Area (mm²)	53.9
Approximate Weight	450 lb/m
Box Dimensions	13"H x 14"W x 14"L
Weight	112 lbs
UPC	840248204170

Compliance and Standards

• UL Standard 1426 BC-5W2
• AWM 1232/1284
• MTW
• CSA: TEW
• ABYC: E-11.15
• Coast Guard: 33 CFR part 183 Subpart 1

Additional Resources

• Quick Guide (PDF)
