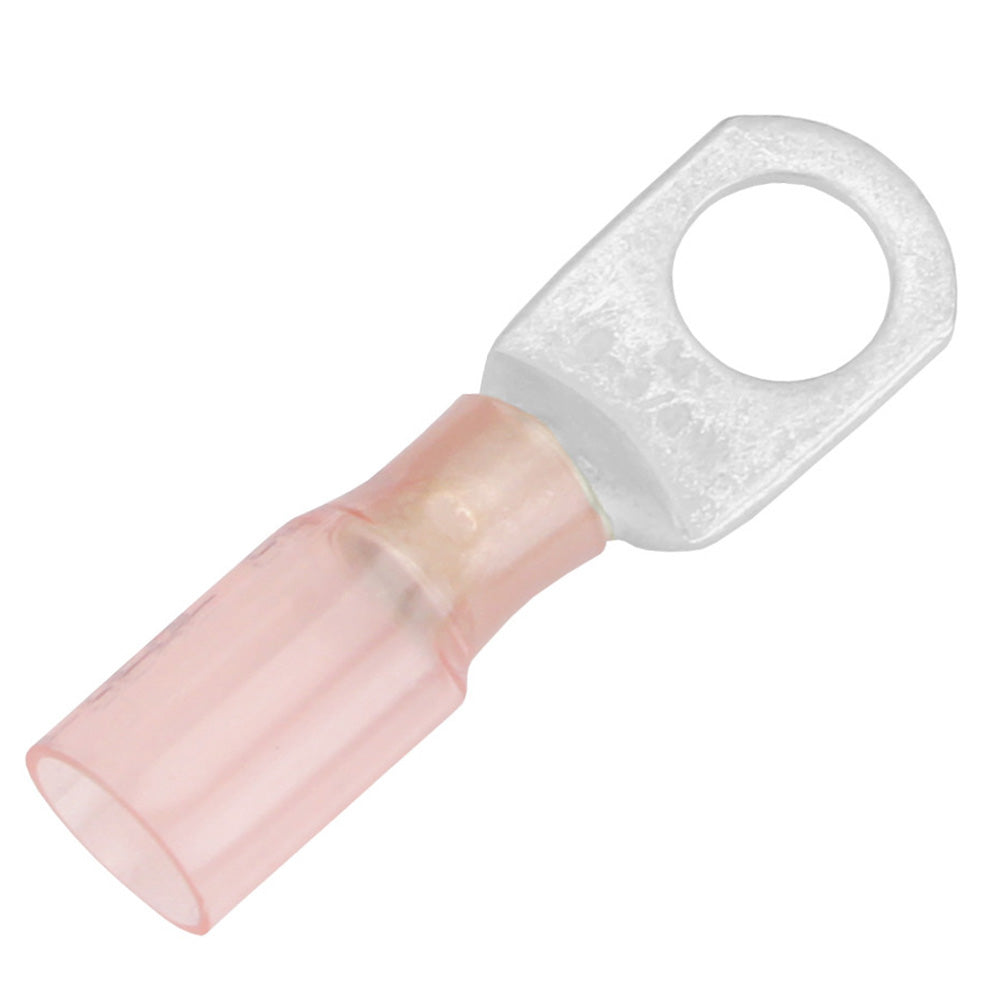

Pacer 8 AWG Heat Shrink Ring Terminal - 3/8" Stud Size - 25 Pack

Ensure reliable and secure electrical connections on your vessel with our 8 AWG Heat Shrink Ring Terminals. Specifically designed for marine and boating applications, these terminals provide superior protection against harsh marine environments, preventing moisture and corrosion to maintain optimal performance.

Features

• Protects terminations from water, condensation, salt spray, and corrosion – ideal for marine environments
• Enhanced vibration protection for rugged marine applications
• Provides strain relief to prevent wire damage
• Translucent, adhesive-lined polyolefin tubing acts as a durable insulator, sealing out moisture and contaminants to prevent wire corrosion
• Conforms to automotive manufacturers’ specifications for reliable wiring repairs on your vessel
• Color-coded tubing with wire gauge imprint for easy identification and correct part selection

Compliance

• UL Certified
• CSA Certified
• RoHS Compliant

Technical Specifications

Characteristic	Specification
Shrink Ratio	Approx. 3:1 at 135 °C
Operating Temperature	-55 °C to 125 °C
Volume Resistivity	1015 Ohm-cm³
Dielectric Strength	900 V/mil
Voltage Rating	600 V
Stud Size	3/8”
Terminal Pad Width	0.59”
Package Size	25 Pack
Gauge	8 AWG
Heat Shrink	Yes
Package Quantity	25
Post Size	3/8"
Type	Heat Shrink
Box Dimensions	1"H x 2"W x 3"L
Weight	0.2 lbs
UPC	840248210140

Applications

Perfect for marine and boating electrical systems, these heat shrink ring terminals ensure secure connections in the most demanding maritime environments. Whether you're wiring your boat's engine, lighting, or navigation systems, these terminals provide lasting protection and reliability.

Download Brochure (PDF)

Product Video
