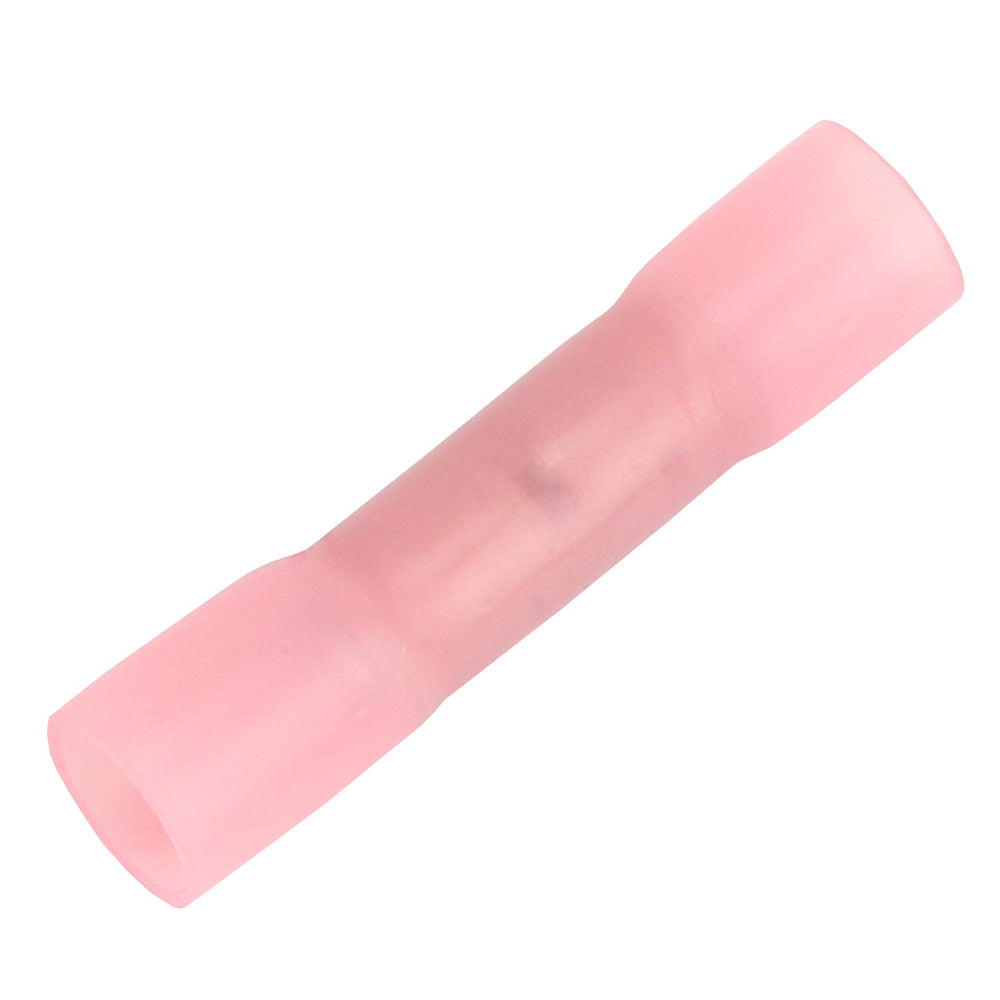

Pacer 8 AWG Heat Shrink Butt Connector - 100 Pack

$127.99 USD $138.00

Product Description

Ensure your marine electrical systems remain secure and protected with our 8 AWG Heat Shrink Butt Connectors. Designed specifically for the demanding conditions of boating and marine environments, these connectors provide a reliable and waterproof seal, safeguarding your connections against moisture, salt spray, and corrosion.

Why Choose 8 AWG Heat Shrink Butt Connectors?

In the harsh and variable conditions at sea, maintaining secure electrical connections is crucial. Our heat shrink butt connectors offer the highest level of protection, ensuring your wiring stays intact and functional. Whether you're upgrading your boat's electrical system or performing routine maintenance, these connectors deliver durability and peace of mind.

Features

  • Prevents water, condensation, salt spray, and corrosion from compromising connections
  • Enhanced vibration protection for rugged marine environments
  • Provides reliable strain relief to reduce stress on wires
  • Economical solution without sacrificing quality

Technical Specifications

Attribute Details
Shrink Ratio Approximately 3-1 at 135°C
Operating Temperature -55°C to 125°C
Volume Resistivity 1015 Ohm-cm³
Dielectric Strength 900 V/mil

Product Specifications

Attribute Details
Wire Range 8 AWG
Insulation Color Pink
Max Wire Insulation Outer Diameter 0.35″
Base Material Tinned Copper
Voltage Rating 600 V
Package Size 100 Pack
Box Dimensions 2"H x 5"W x 9"L
Weight 1.3 lbs
UPC 840248206662

Compliance

  • UL Certified
  • CSA Approved
  • RoHS Compliant

How to Use

  1. Prepare Your Wires: Cut and strip the wires to the appropriate length, ensuring the insulation is removed correctly.
  2. Insert Wires: Place the stripped wire ends into each side of the butt splice, ensuring they reach the internal indentation for a secure fit.
  3. Crimp the Connector: Use the proper crimping tool to secure each side of the butt splice around the wires, creating a solid electrical connection.
  4. Perform a Tug Test: Gently pull the wires to ensure they are firmly connected and won't come loose.
  5. Apply Heat: Use a heat gun or torch to evenly apply heat to the heat shrink tubing, allowing it to contract and form a waterproof seal around the connection.

By following these steps, you'll establish a durable and environmentally protected connection suitable for the rigorous demands of marine applications.

Package Includes

  • 100 x 8 AWG Heat Shrink Butt Connectors

Additional Resources

For more detailed information, download our Brochure (PDF).
