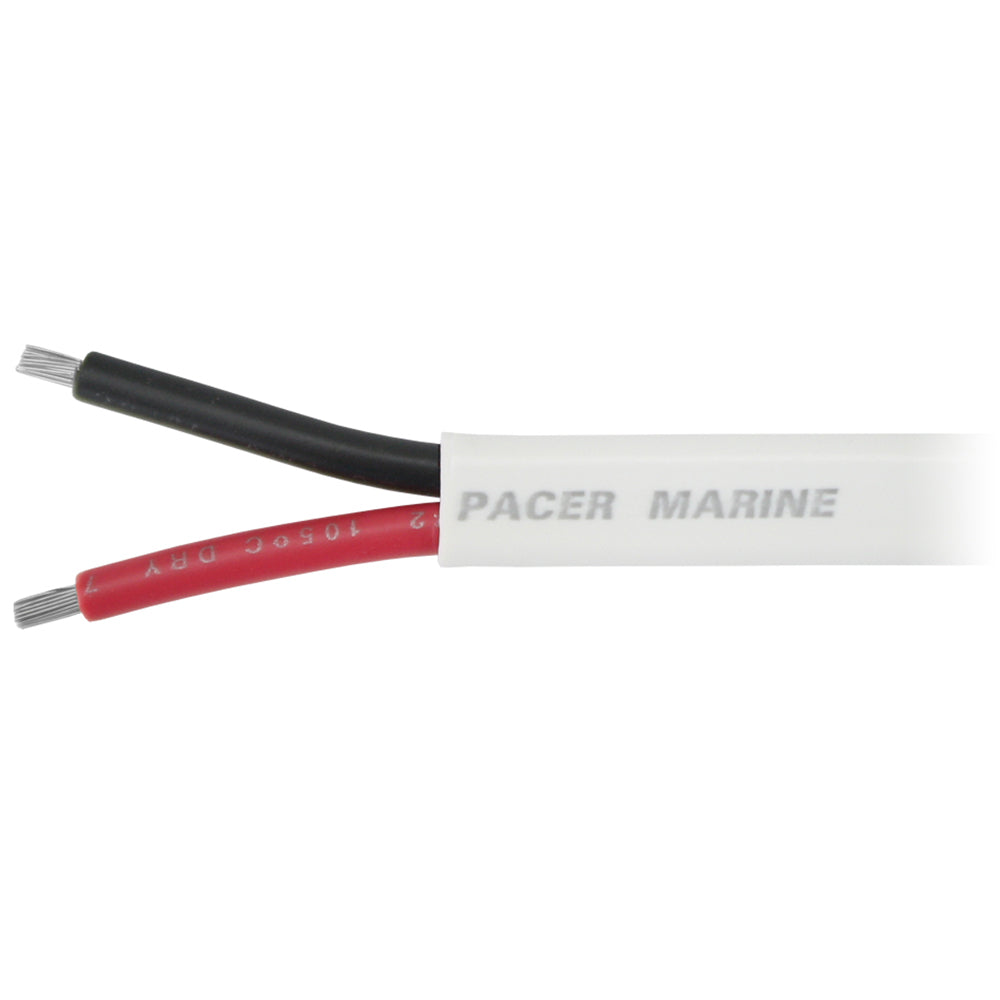

Pacer 6/2 AWG Duplex Cable - Red/Black - 50

Enhance your marine electrical system with our high-quality 6/2 AWG Duplex Boat Cable, designed specifically for reliable performance in both AC and DC low voltage applications. Manufactured in the USA by Pacer, this cable ensures superior flexibility and corrosion resistance, making it an ideal choice for all your boating needs.

Premium Construction for Optimal Performance

Our Duplex Boat Cable is crafted using finely stranded, Type III tinned copper conductors. This meticulous construction not only provides exceptional flexibility but also significantly minimizes the risk of corrosion, ensuring long-lasting durability in harsh marine environments.

Advanced Protection with PVC Jacket

The robust PVC jacket of the 6 AWG Duplex Boat Cable offers excellent flexibility while effectively preventing moisture ingress. During the extrusion process, all spaces between the wires are meticulously filled, eliminating voids where moisture or air could accumulate. Additionally, a talcum powder coating is applied to the interior wires, facilitating easy removal of the outer jacket—a crucial feature for marine applications.

Key Features

• Seamless Exterior Insulation: Extruded insulation with no gaps ensures maximum protection against environmental factors.
• Highly Flexible: Color-coded wire insulation enhances flexibility and ease of installation.
• Durable Conductors: Stranded, tinned copper conductors provide superior conductivity and corrosion resistance.
• ASTM Certified: Annealed finely stranded tinned copper meets ASTM B172 Class K standards for reliability.
• Chemical and Abrasion Resistant: Resists acids, alkalis, abrasion, flames, gasoline, oil, and moisture for versatile marine use.

Compliance Standards

• UL Standard: Compliant with UL Standard 1426.
• U.S.C.G: Meets U.S. Coast Guard requirements under 33 CFR Part 183.
• ABYC: Adheres to ABYC E-11.14 standards for marine wiring.

Technical Specifications

Property	Details
Conductor	Type III annealed finely stranded tinned copper ASTM B172 Class K
Insulation	Flexible, color-coded PVC; operating temperature range from -20°C to 105°C
Voltage Rating	600 V
Resistance	Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
Number of Conductors	2
Cable Type	Duplex

*Sold as an Individual Unit

Product Specifications

Attribute	Details
Color	Red/Black
Gauge	6/2 AWG
Length	50 feet
Box Dimensions	7" H x 10" W x 10" L
Weight	16.7 lbs
UPC	840248200547
