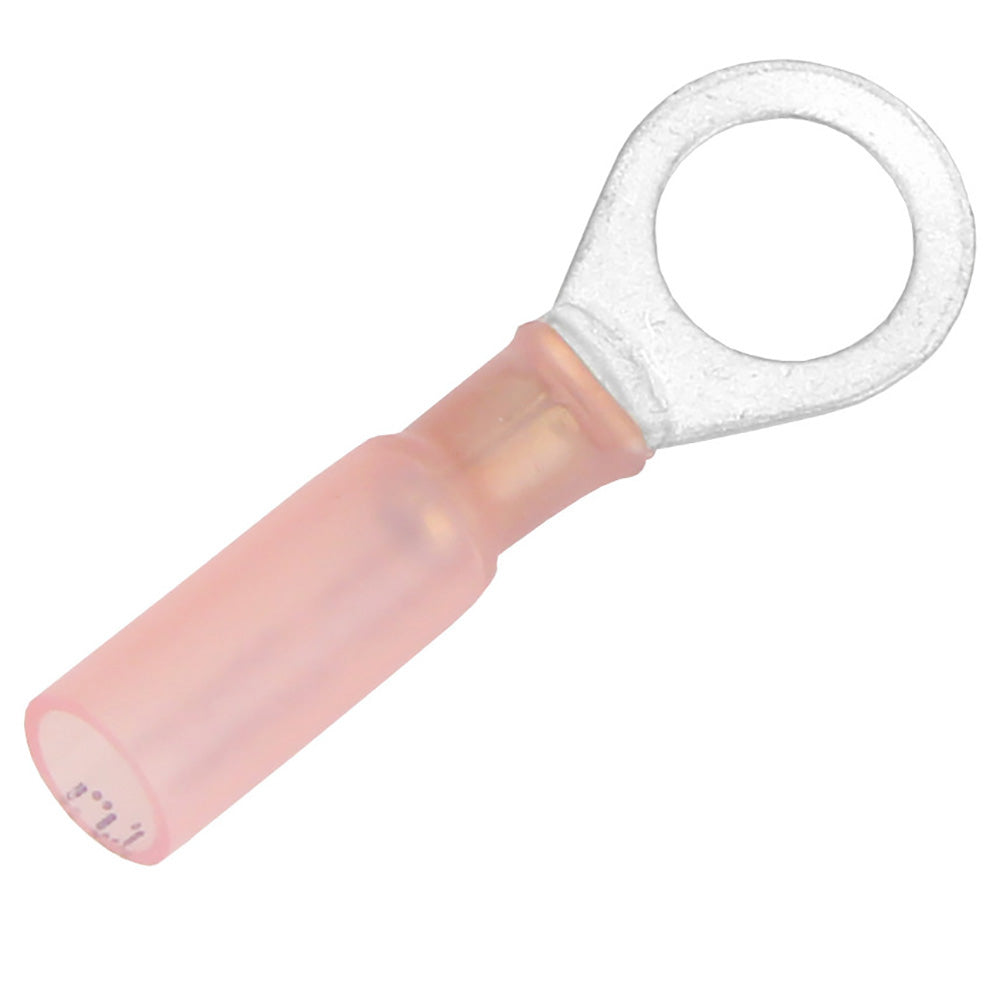

Pacer 22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 Pack

Ensure reliable and secure electrical connections on your marine vessel with our premium 22-18 AWG Heat Shrink Ring Terminals. Designed specifically for the demanding marine environment, these ring terminals offer unparalleled protection against moisture, corrosion, and vibrations, making them the ideal choice for boating enthusiasts and professionals alike.

Key Features

• Superior Protection: Guards terminations against water, condensation, salt spray, and corrosion, ensuring longevity in harsh marine conditions.
• Vibration Resistance: Enhanced vibration protection maintains stable connections even in the most rugged environments.
• Strain Relief: Provides robust strain relief to prevent wire damage and maintain connection integrity.
• Durable Insulation: Translucent, adhesive-lined polyolefin tubing acts as a durable insulator, sealing out moisture and contaminants while preventing wire corrosion.
• Automotive-Grade Quality: Conforms to automotive manufacturers’ specifications, ensuring reliable wiring repairs and installations.
• Easy Identification: Color-coded tubing with wire gauge imprint allows for quick and accurate part selection for your specific needs.

Marine-Grade Compliances

• UL Certified
• CSA Certified
• RoHS Compliant

Technical Specifications

Attribute	Details
Shrink Ratio	Approx. 3:1 at 135 °C
Operating Temperature	-55 °C to 125 °C
Volume Resistivity	1015 Ohm-cm3
Dielectric Strength	900 V/mil
Voltage Rating	600 V

Product Specifications

Specification	Details
Wire Gauge	22-18 AWG
Stud Size	5/16”
Terminal Pad Width	0.47”
Package Size	25 Pack
Heat Shrink	Yes
Type	Heat Shrink
Box Dimensions	2"H x 3"W x 4"L
Weight	0.2 lbs
UPC	840248206464

Why Choose Our Heat Shrink Ring Terminals for Your Boat?

When it comes to marine applications, quality and reliability are paramount. Our heat shrink ring terminals are engineered to withstand the unique challenges of the marine environment, including exposure to saltwater, high humidity, and constant vibrations from engine operations. The heat-activated adhesive liner ensures a sealed connection that prevents moisture ingress, safeguarding your electrical systems from corrosion and short circuits.

Additionally, the ease of use and installation makes these terminals a favorite among marine electricians and DIY boaters alike. The color-coded design simplifies the selection process, reducing the risk of errors during wiring projects.

Installation Tips

1. Strip the wire to the appropriate length as specified for 22-18 AWG.
2. Insert the wire into the ring terminal and securely crimp it using a suitable crimping tool.
3. Slide the heat shrink tubing over the connection and apply heat evenly until it shrinks tightly around the terminal and wire.
4. Ensure a secure and insulated connection before finalizing the installation.

For any assistance or further inquiries, feel free to contact our Pacer experts. We're here to help you select the perfect components for your marine electrical projects.

Download the Brochure (PDF)
